Place of Origin: | China |
Brand Name: | TENET |
Certification: | CE/ROHS/FCC/SGS |
Model Number: | PGS |
Price: | negotiation |
---|---|
Packaging Details: | Packed in standard carton |
Delivery Time: | 10 working days after received your payment |
Payment Terms: | T/T and western Union |
Supply Ability: | 3,000pcs per month |
Product Name: | PGS | Communicate: | RS-485, CAN Bus |
---|---|---|---|
Work Voltage: | DC 12V | Application: | Parking Lot Guidance |
Work Temperature: | -20~65 Degree | Records: | Off-line Available Up To 60 Days |
High Light: | intelligent parking guidance system,smart Parking Guidance System |
PGS SERIES – Parking Lot Guidance System
COMPONENTS

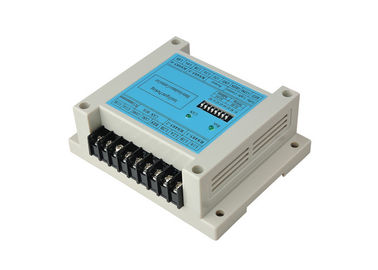

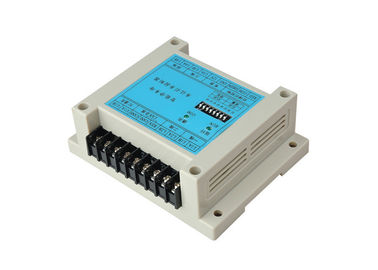

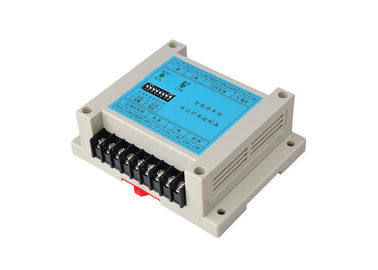

1 PGS controller
Technical Parameters
Main Features
Installation and setting
1. Installation
Lay the cables and install according to the design scheme; arrange layout reasonably, handy installation. In installation, please pay more attention to matched resistance of CAN bus and RS485 bus. Already including CAN bus matched resistance (120 Ohm), user just need to short-circuit two longest controller’s CANL and RES in CAN bus network. The matched
resistance (180 Ohm) is connected to every line RS-485 bus controlled by PGS-320 controller with parallel mode. In your use, just need one resistance(180 Ohm) connect to LED screen or the longest detector in bus.
2. Terminal setting
Chart 1 PGS-320 Silk print
Chart 2 DIP switch
As chart 2, all DIP switch in bottom is 0# terminal regarded as data center acquiescently. For A5-A0, high-order in front and low-order in behind, S1 and S0 are preset switch.

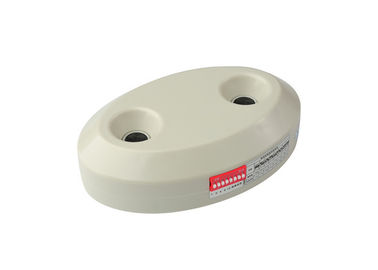

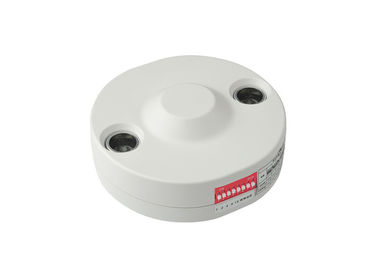

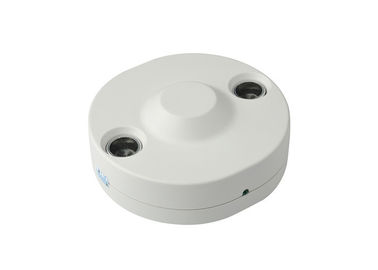

2 Ultrasonic Sensor
Technical Parameters
Main Features
Installation
NO. |
Card dispenser Working states |
Buzzer Output |
Port Output |
1 |
Reset |
Consecutive ring“toot toot” |
No |
2 |
Lack card (can dispense card) |
Interval ring “toot” |
Lower |
3 |
Jam card (can’t dispense card) |
Interval ring “toot toot” |
Error |
4 |
Overtime error (can’t dispense card) |
Interval ring “toot ,toot, toot” |
|
5 |
Warehouse full (can dispense card) |
Interval ring “toot,toot ,toot, toot” |
|
6 |
Empty |
Interval ring “toot,toot ,toot,toot, toot” |
Lower |
NO. |
Card dispenser Working states |
Buzzer Output |
Port Output |
1 |
Reset |
Consecutive ring“toot toot” |
No |
2 |
Lack card (can dispense card) |
Interval ring “toot” |
Lower |
3 |
Jam card (can’t dispense card) |
Interval ring “toot toot” |
Error |
4 |
Overtime error (can’t dispense card) |
Interval ring “toot ,toot, toot” |
|
5 |
Warehouse full (can dispense card) |
Interval ring “toot,toot ,toot, toot” |
|
6 |
Empty |
Interval ring “toot,toot ,toot,toot, toot” |
Lower |
