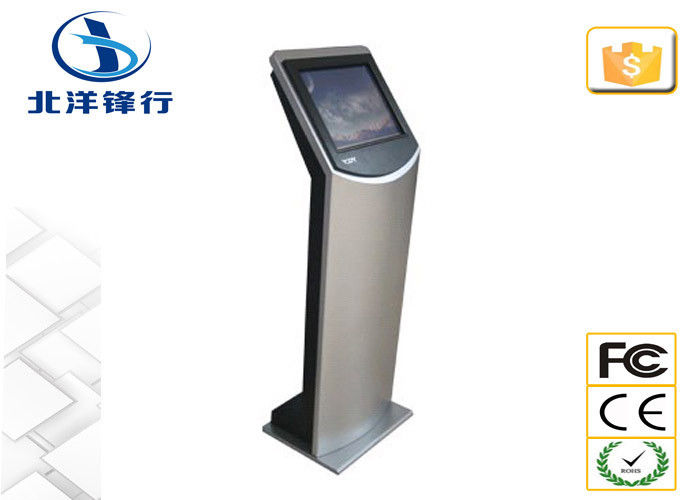

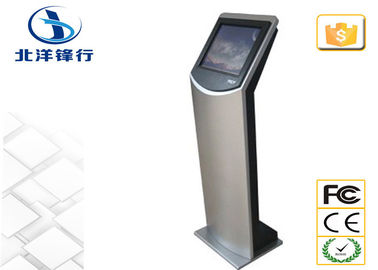

Indoor Smart Digital Touch Screen Information Kiosk Car Park Kiosk Machines

Product Details:

Place of Origin:	Beijing, China
Brand Name:	BYFX
Certification:	CE/ROHS/FCC/SGS
Model Number:	BYFX-KE15

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	negotiation
Packaging Details:	Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time:	10 working days after received your payment
Payment Terms:	T/T or western Union
Supply Ability:	3,000pcs per month

Contact Now

Detailed Product Description

Product Name:	Touch Screen Information Kiosk	Type:	Floor Standing
Size Of Panel:	15" 17" 19" 22"	Material:	Cold Roll Steel
Touch Screen:	SAW/IR	Applicaiton:	Indoor
High Light:	self service banking kiosk , touchscreen kiosk

Smart digital Car Parking computer wireless Internet access indoor touch screen information kiosk

Specifications:

Model		BYFX-KE15
Display Specifications	Display	LCD Display
	Ratio	4:3
	Display Size	15inch
	Resolution	1024x768
	Color	16.7M
	Dot Matrix	0.297(H)×0.297(V)
	Brightness	250cd/m²
	Contrast	500:1
	Viewing Angle	75/75/70/70
	Reaction Time	5ms
	Touch Screen	SAW/ Resistive/IR
	Touch Number	Single-touch 60 million times
	Touch Screen Resolution	Resolution 4096 × 4096
Built-in Computer Specifications	CPU Processing	Intel Core 1037U, clocked at 1.8GHz Dual-core, four threads, Thermal Design Power (TDP): 17W Intelligent L3 cache: 2MB, production process: 22nm
	RAM Memory	Kingston 2G
	Chipset	Intel NM70 Express Chipset
	Hard disk (SSD / HD)	500G hard drive
	Graphics	Integrated Intel ® HD2000 series graphics core
	Sound	Integrated Realtek ALC662 6-channel HD Audio controller supports MIC Line-out
	Network Interface	1 * RTL8111E Gigabit LAN chip, supports Wake on LAN feature
	Wireless Module	Optional
	External Interface	USB2.0*4 HDMI1 VGA LAN Line-out MIC DC-12V
	OS	Windows XP, Windows Vista, Windows 7, Windows 8
Kiosk	Cabinets	Sheet metal cabinet, the outer surface of metallic paint, anti-magnetic, anti-static
	Standard Colors	Silver cabinet with black panels; silver with blue panel
	Control Panel	Power input, power switch, network input
	Power Supply	Maximum power consumption 200W, power instantaneous current 5A, 220V AC voltage
	Sound	Output power 2 × 5W, dual-channel, surround sound
	Work Environment	Temperature -5-50 ℃, humidity 40% -80%
	Network Interface	BNC or RJ45 and RJ11
	Warranty	One year
	Kiosk Size	1425×430×315MM (different model with different dimension)

Description:

This kiosk is designed as information checking terminal & internet access terminal. You are able to checking info and connect internet via this info kiosk. It could be installed at Metro station, film hall, train station, airport hall, shopping mall and other public places.

Applications:

Office building, court house, hospital/medical center, airport, university,

government building, shop, theater and other public places where information and/or

transaction are provided in self-service and interactive manner.

Competitive Advantage:

High-sensitivity, high light-transmittance, anti-glare, vandal-proof SAW touchscreen
15″,17″,19″TFT LCD displays for option
OS: Android or Win 7/8
System Structure: ARM or X86
Color: Customizable
