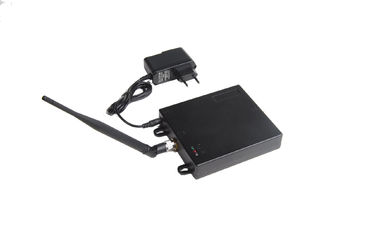

Intelligent Cell Phone Signal Repeater , High Gain Outdoor Repeater ≥ 65dB

Intelligent Cell Phone Signal Repeater , High Gain Outdoor Repeater ≥ 65dB

    • Intelligent Cell Phone Signal Repeater , High Gain Outdoor Repeater ≥ 65dB
    • Intelligent Cell Phone Signal Repeater , High Gain Outdoor Repeater ≥ 65dB
  • Intelligent Cell Phone Signal Repeater , High Gain Outdoor Repeater ≥ 65dB

    Product Details:

    Place of Origin: China
    Brand Name: EST
    Certification: CE&ROHS
    Model Number: Intelligent Mobile Phone Signal Repeater/Amplifier/Booster

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Packaging Details: neutral packing
    Delivery Time: 1-3 working days
    Payment Terms: 100% before shipment
    Supply Ability: 500pcs/week
    Contact Now
    Detailed Product Description
    Product Name: GSM Signal Booster Frequency Range: Uplink:890—915MHZ Downlink 935-960MHz
    Max Gain: 65±3dB Pass Band Ripple: ≤4.0dB
    Working Voltage: DC 5.0V Coverage Area: 200 M2
    Dimensions: 150×115×27mm RF Connector: SMA-F

    Intelligent Cell Phone Signal Repeater , High Gain Outdoor Repeater ≥ 65dB





    Quick Details:



    Gain: ≥ 65dB

    Dimensions: 115*150*30 (mm)

    Weight: ≤ 1.5 kg





    2. Features and function



    ● testing the isolation of outdoor and indoor antenna

    ● Automatic adjustment (AGC) big coverage

    ● High-speed figure ALC

    ● output power indication

    ● automatically be standby without calls.

    ●automatically shut off of uplink and downlink once self-excitation.

    ● Clearance noise function of uplink and no interference to base station

    ● Uplink and downlink gain automatic balance;

    ●Small size, light weight, beautiful appearance, high gain and low power dissipation.

    ● Low noise amplifying, improving communication quality and reduction of dropped calls;

    ●Good aluminum shell shield, greatly improving the anti-interference ability.

    ● Easy installation and operation





    Applications

    This product is mainly used for indoor small coverage. It is widely used in car parking, business centers, entertainments, car and boats etc.





    Technology index



    model

    color

    frequency

    uplink

    downlink

    G900-65-10-O

    off-white

    890-915

    935-960

    Electrical items

    index

    max gain

    65±3dB

    uplink output power

    ≥10,17dBm

    Downlink output power

    ≥10,17dBm

    Noise figure (Max gain)

    ≤5.0dB

    Pass band ripple

    ≤4.0dB

    ALC/AGC (range)

    ≥30dB

    Intermediation attenuation



    Output 10dBm≤-50dBc

    Output 17dB≤-45dBc

    Output 20dBm≤-40dBc

    Output 23dBm≤-36dBc

    Max input power

    ≤-25dBm

    Spurious Emission is 2.5MHz

    away from working  band edge



    9kHz~150kHz

    ≤-36dBm @1kHz

    150kHz~30MHz

    ≤-36dBm @10kHz

    30MHz~1GHz

    ≤-36dBm @100kHz

    1GHz~12.75GHz

    ≤-36dBm @1MHz

    transmission delay

    ≤1.0μs

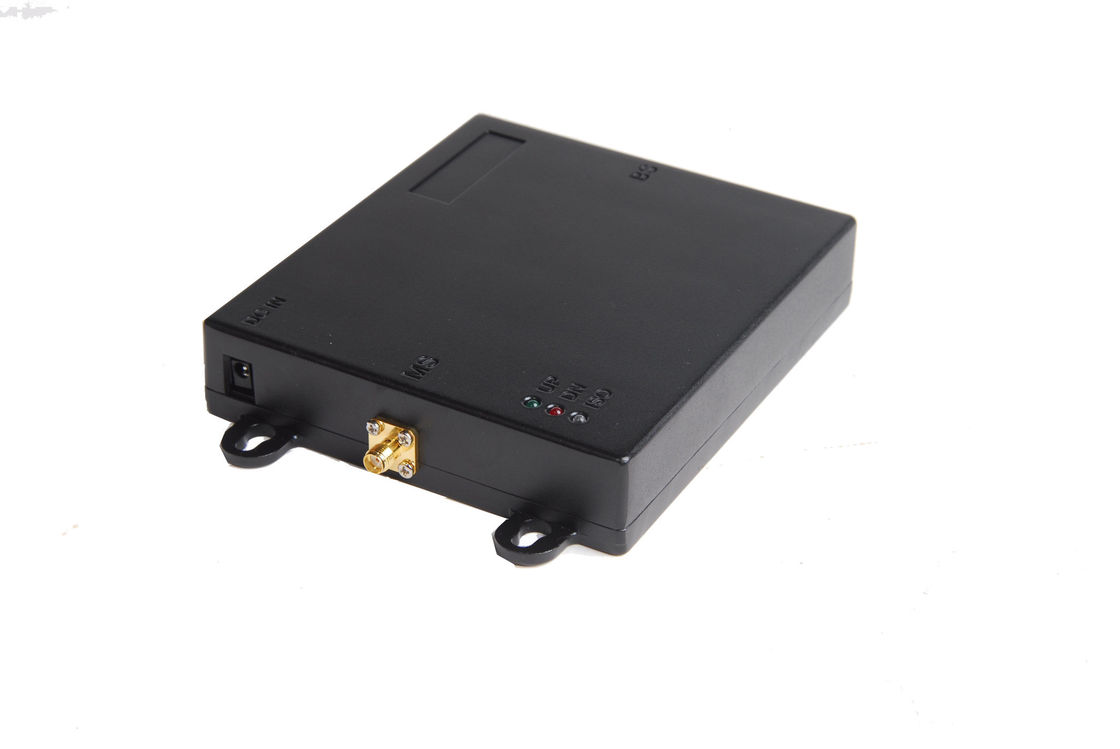

    Indicator lights

    ISO(white and blue light):isolation indicator

    DN   (Red):downlink working  indicator

    UP   (green):uplink working indicator

    Working voltage

    DC 5.0V

    working current

    ≤1.5A

    Power adaptor

    AC 100~240V,50/60Hz

    Ambient temperature

    -5℃~+45℃

    relative humidity

    ≤85%

    structural  items



    index

    RF connector

    SMA-F

    Power port

    KLD-40-17

    Dimensions

    150×115×27mm

    weight

    ≤0.5Kg

    Intelligent Cell Phone Signal Repeater , High Gain Outdoor Repeater ≥ 65dB

    Intelligent Cell Phone Signal Repeater , High Gain Outdoor Repeater ≥ 65dB
