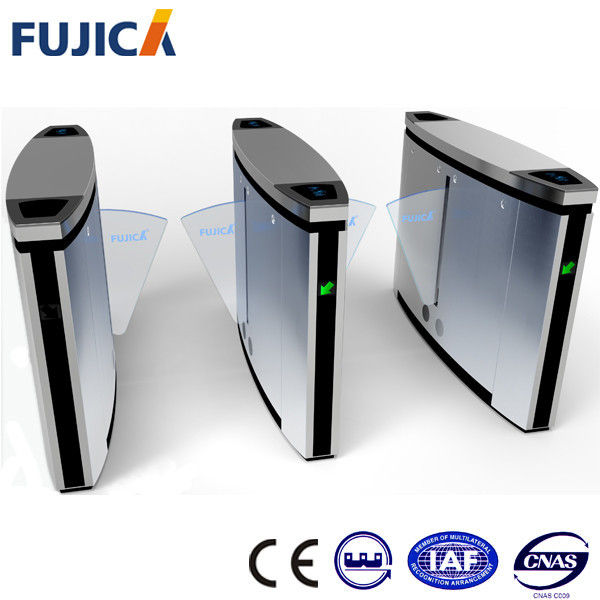

Automatic IP44 Flap Barrier Gates Stainless Steel For School Access Control
Description
Fujica Automatic Flap Barrier Gates For School Time Attentance Checking Access Control is designed to control pedestrian entering or exiting restricted areas, use SS304 stainless steel for the whole case, and adopt anti-damp, dust-proofing, water-proofing international standard design, suitable for both indoors and outdoors.
Flap barrier consists of cabinet,reader module,main control module,motor & driver module,infrared photocell,alarm device,limit switch and voice prompt device etc., can be used for the applications like apartment, factory, museum, station and ferry terminal etc.. Together with intelligent card reader/writer and management software, they are combined as intelligent flap barrier management system, can fulfill the functions like entrance control, time attendance, pedestrian volume control and tolling etc.
Specifications
|
Power consumption |
50W |
|
Housing Size |
1400*280*950mm |
|
Housing material |
1.5--2mm, 304#,316# stainless steel, corosion resistant |
|
Drive motor |
DC brushless motor |
|
Channel width |
500--600mm |
|
Pass speed |
40 persons/min. |
|
IP protection |
IP44 |
|
Input singal optional |
DC12V/dry/contact/RS485/RS232/Remote) |
|
railing-off against power off |
Yes |
|
Working enviroment temperature |
minors 30°C to 70 °C |
|
Working environments |
indoor,outdoor |
|
Relative humidity |
≤95% coagulation free |
|
MCBF |
2,500,000 cycle |
Functions:
1. Smartcard reader compatible with a variety of card such as IC and ID card.
2. Can be expanded to automatic identification system, realizing function of access control, pedestrian flow control,attendance check or fare collection.
3. Equipped with international standard electrical interface, can be easily integrated with other R/W device, also can be controlled and management through remote supervision computer
4. Equipped with a couple of infrared photocells, alarm at unauthorized entry or tailgating attempts, together with anti-strike function to protect pedestrian
5. LED gate direction indicator that displays the current operational state to pedestrian. Green arrow for entry free, Red cross for passage locked.
6. Can open the turnstile by two input signals (signals can be input by access controller, button or other equipments)
7. Provide audible sound prompt and information display function.
8. The flaps will open automatically during power interruption, and recover N/C mode after power on(optional)
9. Counting function. Flap closes after passing N pedestrians continuously by swiping card N times correspondingly (N<=16) (optional)
10.Reversed passing alarm function, barrier will alarm if pedestrian pass from opposite direction after reading the card.(optional)
