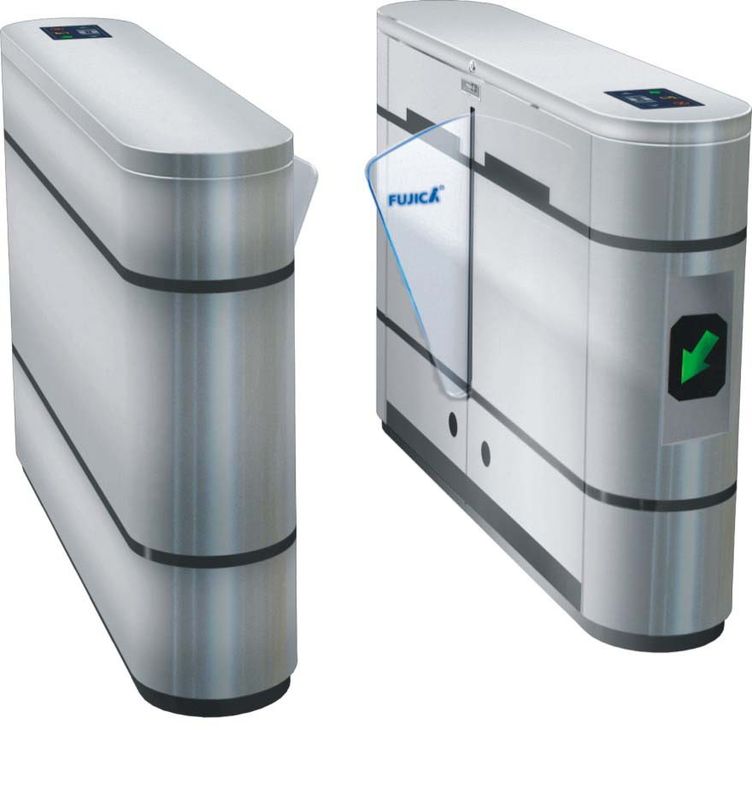

2012 hot sale flap barrier gate for scenic spots

2012 hot sale flap barrier gate for scenic spots

Features:
1,equipment appearance is made of stainless steel plate with cold bending technology, no clearance welding. It is beautiful modeling and rust-proof and durable.
2,the appearance is like a ship with stainless material .
3,the material of the whole case is stainless, and the width is 2mm.
4,there is night light alarm device on the wing gate.

5,the material of the wing gate is transparent glass pane. And you can freely set logo on it. With the matched night light device, they combined a beautiful view.
6,adopted 6 pairs infrared device or light curtain to stop following, distinguishing direction, preventing touch, and alarm function .

7,with UPS battery in itself, when the power cut off suddenly, it close automatic.
8,humanized status identification can distinguish the status of the equipment operation.
9,adopted the standard electrical interface, this system can integrated many reader of magnetic card, the bar code card, ID card, IC card in this equipment.
10,This system has the emergency measures to ensure the channel unimpeded, for staff evacuation in time.
11the standard outward electric interface can be connected with many kinds of card readers and realize remote control and management through running the computer.
12,the whole system is running steadily with low noise.
13 If in the low temperature area, the equipment will add warming device.

Parameters:
voltage: AC220±10%V,50HZ
continuous current:24V/100W
working temperature:-30°C~+70°C
relative humidity ≤90%,non-condensing
input interface: 12V level signal or pulse width >100ms 12Vpulse signal
driving electric current>200mA
communication interface: RS485
communication distance: ≤1200m
maximum width :600mm
passing speed: ≤40 people / minute
time of gate opening or closing:1.5s(adjustable)
overall dimension: L 1400*W280*H950mm
types: bridge-like bevel angle standard wing gate(one pair)
structure: frame structure/standard stainless steel outer skin
overall dimension: L1200×w300×h1000(mm)
weight: 70KG
beam turning direction: bi-directional passing or single way passing
work environment: indoor, outdoor
