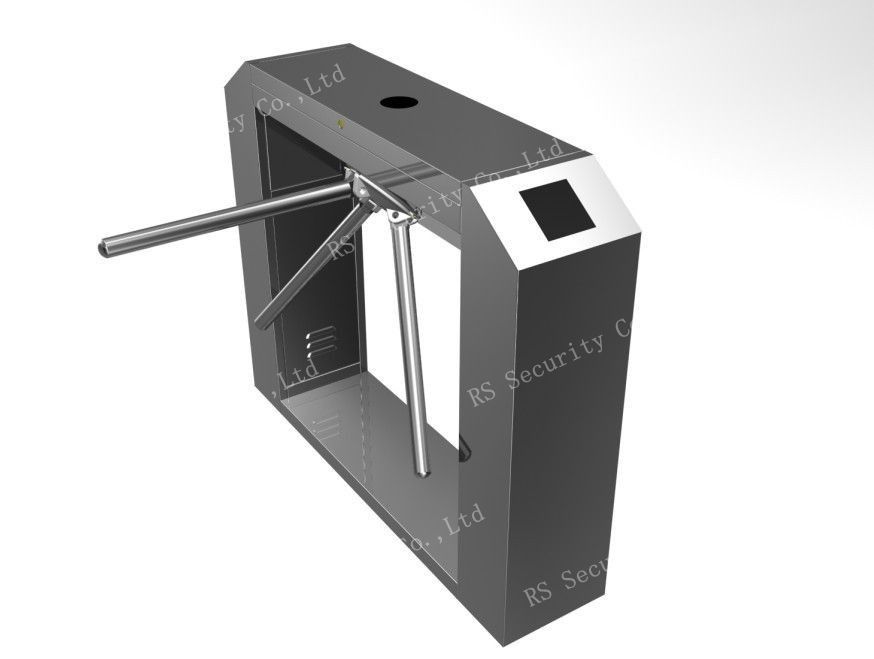

School Run Smoothly Waist Height Turnstiles High Security Pedestrian System

School Run Smoothly Waist Height Turnstiles High Security Pedestrian System

  • School Run Smoothly Waist Height Turnstiles  High Security Pedestrian System
  • School Run Smoothly Waist Height Turnstiles  High Security Pedestrian System
School Run Smoothly Waist Height Turnstiles  High Security Pedestrian System
Product Details:
Place of Origin: China(mainland)
Brand Name: RS Security
Certification: ISO,FCC,SGS,RoHS,CE
Model Number: RS 318
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: 1200USD
Packaging Details: wooden box
Delivery Time: 3-8workdays
Payment Terms: TT
Supply Ability: 3000pcs/month
Contact Now
Detailed Product Description
Series: Tripod Turnstile Product Name: Bridge Butterfly Tripod Turnstile
Model: RS 818 Brand: RS Security
Material: 304 Stainless Steel Size: 1200*300*980mm
High Light:

automatic systems turnstiles

,

turnstile gate systems



Access Control Device Waist Height Turnstiles High Security Pedestrian Entry System



Specifications

Product Name:Waist Height Turnstie

Model:RS 918

1. waterproof 304 stainless steel tripod turnstile/ barrier gate
2. stable quality
3. well-protective package
4. support OEM

tripod turnstile,auto turnstile,barrier gate,time attendance,parking system



Technical Parameters
Frame construction 304 grade stainless steel (1.5mm thickness for top panel; 1.2mm thickness for the frame)
Dimension 1200*980*280mm
Arm length 510mm
Maximum force of the arm 80Kg
Driving force of the arm 3kg
Voltage AC220±10% V,50HZ
Frenquency 50/60Hz
Communication interface RS485/ TCP/IP
Input interface dry contact signal or +12V level signal or DV 12V pulse signal of pulse width ≥100ms; drive current ≥10mA
Normal life-span 3 million
Passing speed 30 persons/min
Working environment Indoor/outdoor
Working temperature -15°C ~ 60°C
Relative humidity ≤90% no condensation



Main Features:

1) Applying electromagnet locking and photoelectric unlocking, this can make sure the products

with longer service life of products, stability and fast reaction speed.

2) The whole system works steadily, and the noise is very low, small impact force.

3) It has self checking for electricity, recover to lock condition automatically.

4) There are many working modes for choice, it can read card for both sides, and can read by

one side, the other side is forbidden to access; read card by one side, the other side freely access.

5) The poles will fall down when the power is cut off. When power is on, press the pole and take

it up to level line.

6) It can control open by RS485 in long distance, fall down the pole without power, to meet users’

special requirement and security needs.

7) It has standard outside electronic interface, can connect with many kinds of read/write equipment,

fit for system integration, and can realize to remote control and manage through computer.

8) It can count the people for access automatically, and can show by LED ( optional) to manager.

9) It has direct access direction function by LED display, to show can access or forbid to access.

10) It can make a limit for the quantity of people inside through the software.

11) Resetting automatically: the passenger read effectively, the system will cancel this access

authority if they will not access within setting time (5 seconds).
