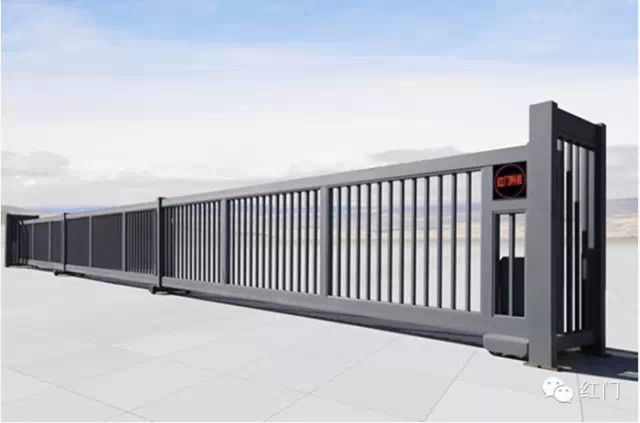

Motorized Automated Sliding Gates Telescopic With Anti Collision

Product Details:

Place of Origin:	China
Brand Name:	Hongmen
Certification:	CE
Model Number:	P863-G

Payment & Shipping Terms:

Minimum Order Quantity:	L=5m * H=1.5m
Price:	USD350 - USD660 / Meter
Packaging Details:	Iron rack plus plywood
Delivery Time:	10 Working Days
Payment Terms:	T/T
Supply Ability:	10.00m/month

Contact Now

Detailed Product Description

Material:	Industrial Grade Aluminium Alloy	Colour:	Grey / Black / Silver / White / Others
Surface Treatment:	Powder Coated	Motor:	500W
Voltage:	220VAC (DC Available)	Operation:	Telescopic Sliding
Length:	Up To 30m	Height:	Up To 2.0m
High Light:	Automated Sliding Gates , Motorized Sliding Gate

Motorized Automated Sliding Gates Telescopic With Anti Collision

HSG61B

Features:

1. Wiresless Remote Control (433MHz)

2. Suitable For:

a. Factory Entrance

b. Bungalow main-gate

c. Private Residential Area

d. Condominium Entrance

e. Garrage entrance
3. EMO Button (Emergency Stop Button).
4. Industrial Grade Aluminium Alloy (6063-T5).
5. Powder Coating With Compliance Of AAMA2203
6. Dispatch In Modules Form (Transportation Friendly).

7. 100% No-Welding Points
8. Smart Power Outage Clutch For Operating During Power Failure
9. Anti- Collision IR Sensor with up to 60cm
10. Anti- Climb Photo Cell With up to 30m

11. Folded Design - Maximise and Fully Utilized The Opening Spaces

Material Specification:

Description	Material	Hardness (HW)	Specification (mm)
Upper Beam	6005-T5	13-17	11580d3
Lower Beam	6003-T5	10-17	13580d3-4
Front Gate Frame A/ Rear Gate Frame	6003-T5	10-13	11080d2.0
Front Gate Frame B	6003-T5	10-13	8080d2.5
Cross Tube	6003-T5	10-13	3529d1.0
Auxillary Gate Frame	6003-T5	10-13	7025d1.0
Supportive Bar	SUS304	10-13	4244d2.0
Front/Rear Upright Post	6003-T5	10-13	180100d3.0
Rail	6003-T5	10-13	25*18

Technical Specification:

Operation Voltage	220V± 10%, 50Hz-60Hz
Operation Temperature	-25ºC to +70ºC
Environment Humidity	< 90%
Operation Speed	18m/min
Motor Power Rating	500W
Motor RPM	1400r/min
IP Rating	IP54
Insulation Grade	F
Speed Reduction Ratio	30: 1
Remote Distance	50m (empty space)

Q: How do you ship it out to worldwide customers?

A: We take all necessary precaution before its dispatch from the factory. The most inner layer is wrapping up with a thin layer of shrink wrap, then follow by a customized EPE form to firmly secure its position within the carton box.

Q: Do you take any additional precaution if we only purchase a few sets whereby we going to ship it via LCL?

A: Yes, we will place 4 sets of the well-packed crowd control barriers on upright position and sitting firmly on top of a plywood pallet.

Q: Do you go through the fumigation process before exporting the goods?

A: Due to the facts that all packaging are non-timber material, and same goes to the pallet is made of plywood which we don’t have to worry about fumigation certifications

Q: Do you have any export experience?

A: Yes, our company have more than 16 years of experience of exporting such innovative and unique products to all over the world

Warranty:
         1. Drive Motor is warranted against manufacturer’s defect for lifetime
         2. Standard warranty for all components is valid for 12 months from the date of delivery
         3. This warranty does not include damages caused by:
               a. Wear and Tear
               b. Theft
               c. Accidents
               d. Act of God & Natural Disaster
               e. Unstable power supply (i.e. inconsistent voltage or lightning)
