Place of Origin: | China |
Brand Name: | Hongmen |
Certification: | CE |
Model Number: | HSG61B |
Minimum Order Quantity: | L=3m * H=1.5m |
---|---|
Packaging Details: | Iron rack plus plywood |
Delivery Time: | 10 Working Days |
Payment Terms: | T/T |
Supply Ability: | 30.00m/month |
Material: | Aluminium Alloy | Motor: | 220VAC |
---|---|---|---|
Control: | Wireless Remote / Wired Control | Colour: | Multiple Choices |
Surface Treatment: | Powder Coated | Legnth: | Up To 30m |
Height: | Up To 2m | ||
High Light: | Automated Sliding Gates,Motorized Sliding Gate |

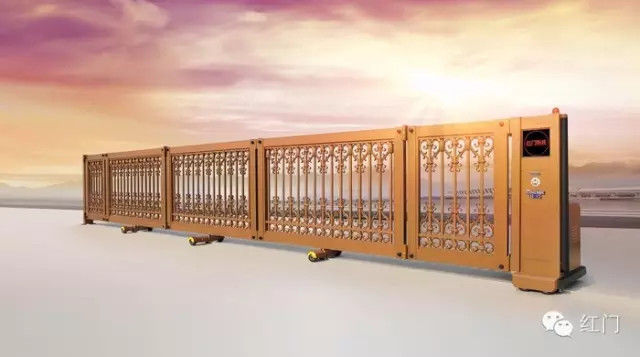

Automatic Folding Motorized Sliding Gate With Wireless Remote Control
Features:
1. EMO Button (Emergency Stop Button).
2. Trackless Operation.
3. Industrial Grade Aluminium Alloy (6063-T5).
4. Wireless Remote Control (433MHz).
5. Powder Coating With Multiple Colours Of Choices
6. Dispatch In Modules Form (Transportation Friendly).
7. Smart Power Outage Clutch For Operating During Power Failure
8. Anti- Collision IR Sensor.
9. Anti- Climb Photo Cell.
10. Able to integrate with:
a) Vechicle Loop Detector
b) Proximity Card Reader
c) Long Range RF Card Reader
d) Access Control
Material Specification:
Description | Material | Specification (mm) |
Upper Beam | 6003-T5 | 120*74*d2.5 |
Slide Bar | 6003-T5 | 135*80*d2.5 |
Gate Frame Post | 6003-T5 | 110*80*d3.0 |
Rear Gate Frame Post | 6003-T5 | 80*80*d3.0 |
Front Gate Frame Post | 6003-T5 | 80*76*d2.0 |
Auxiliary Gate Frame | 6003-T5 | 35*29*d1.0 |
IR Sensor Post | 6003-T5 | 70*25*d2.0 |
Motor Tower | A3 | L397*W390*H650 |
Technical Specification:
Descrition | Guide Motor | Swing Motor |
Operation Voltage | DC36V | DC36V |
Operation Temperature | -25ºC to +70ºC | -25ºC to +70ºC |
Current | 5A | 4.63A |
Environment Humidity | < 90% | < 90% |
Operation Speed | 20m/min | 20m/min |
Motor Power Rating | 1000W | 1000W |
Motor RPM | 1800r/min | 1800r/min |
IP Rating | IP44 | IP44 |
Insulation Grade | E | E |
Speed Reduction Ratio | 35: 1 | 60: 1 |
Remote Distance | 50m (empty space) | 50m (empty space) |
Warranty:
1. Drive Motor is warranted against manufacturer’s defect for lifetime
2. Standard warranty for all components is valid for 12 months from the date of delivery
3. This warranty does not include damages caused by:
a. Wear and Tear
b. Theft
c. Accidents
d. Act of God & Natural Disaster
e. Unstable power supply (i.e. inconsistent voltage or lightning)

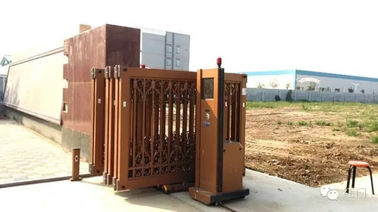

Project References / Showcase
