Place of Origin: | Shenzhen,China |
Brand Name: | Integer |
Certification: | CE, ISO, SGS |
Model Number: | IBG-402 |
Minimum Order Quantity: | 1 unit |
---|---|
Price: | negotiation |
Packaging Details: | Carton(1 unit): 1020*375*467mm |
Delivery Time: | 5~15 |
Payment Terms: | T/T |
Supply Ability: | 3000units per month |
Model: | IBG-402 | Color: | Optional |
---|---|---|---|
Weight: | 60kg | Relative Humidity: | ≤90% |
Rated Power: | 80w | Voltage: | AC 220v, 110v |
Material: | Cold-rolled Steel Plate | Dimension: | 1020*375*467mm |
High Light: | automatic barrier gate,vehicle barrier gate |

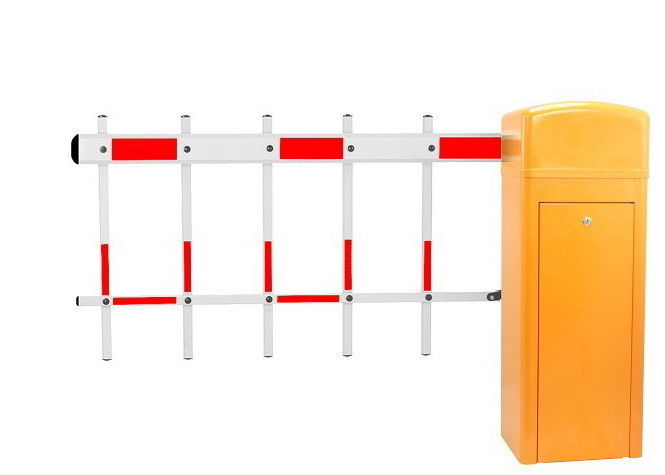

2 Fence Boom Arm Security Car Parking Automatic Barrier Gate System
IBG-402 is s not only beautiful in design, but also effective in performance.The barrier casing are powder coated by high class paint with uvioresistant function and the barrier boom is made of highstrength aluminum alloy tube covered with light-reflecting material to warn the driver. The machine is widely applicated in parking lots,bus station,living area,park,school,hospital,ect.
INTEGER can also provide the following products:
IC/RF ID/magnetic cards and card reader, automatic card dispenser, loop detector, card collector, tickets transport machine, micro printer, barrier gate, parking guidance system.
Parameter
Voltage |
AC 220V |
Frequency |
50HZ |
Power |
100W-150W |
Boom Length |
≤ 6m |
Switching speed |
1.5-6S |
Working temperature |
-40-+75°C |
Relative humidity |
≤90%,non-condensing |
Shell Material |
A3 steel |
Shell thickness |
2.0mm |
Surface handle |
Import paint |
Open method |
Read card, remote control ,manual button |
Remote control distance |
≤30M |
Weight of barrier |
60-65KG |
Cabinet dimension |
depends on the design (SEWO-X660/SEWO-DZ260/SEWO-DZ260C/SEWO-DZ260Z/SEWO-260GL/SEWO-260) |
Communication Distance |
≤1200M |
Communication Connection |
RS485 Communication |
Boom Type |
straight/grid/folding |
Application |
parking lot in residential communities, enterprises and institutions, hotels,commercial buildings, government organizations, logistics company, hospitals, villages, shopping markets |
Contact Person: Mr. Shen
Tel: 86-135367899
Fax: 86-755-423479
