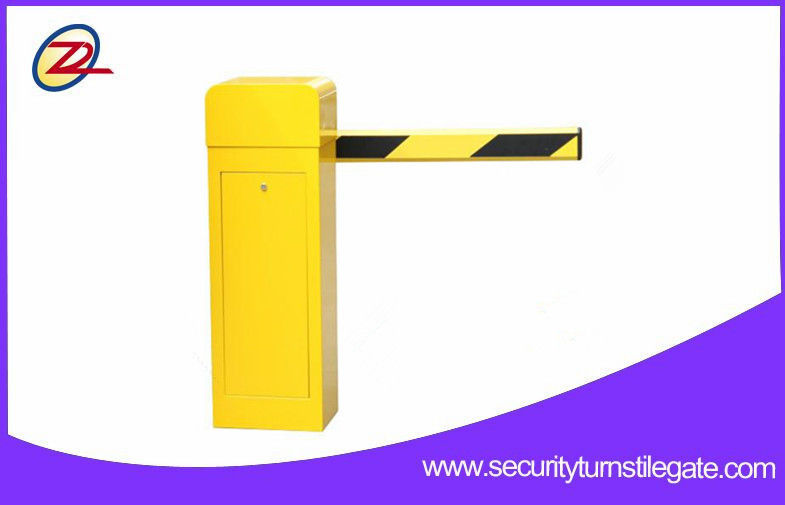

Outdoor Automatic Boom Vehicle Barrier Gate , Gate Arms Barrier Gates

Outdoor Automatic Boom Vehicle Barrier Gate , Gate Arms Barrier Gates

  • Outdoor Automatic Boom Vehicle Barrier Gate , Gate Arms Barrier Gates
  • Outdoor Automatic Boom Vehicle Barrier Gate , Gate Arms Barrier Gates
  • Outdoor Automatic Boom Vehicle Barrier Gate , Gate Arms Barrier Gates
Outdoor Automatic Boom Vehicle Barrier Gate , Gate Arms Barrier Gates
Product Details:
Place of Origin: china
Brand Name: TDZ
Certification: CE
Model Number: TDZ - D615
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 250 - 400 / Piece
Packaging Details: paper carton/wooden case
Delivery Time: 5-7 working days after ordered
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 2000 pieces / month
Contact Now
Detailed Product Description
Size: 340*280*1030 Mm Lift Time: 3-6 Seconds
Housing Color: Orange / Black / Blue Communication Interface: RS485 Electrical Standard Or TCP/IP
Arm Length: Max 6 Meters Arm Type: Straight, Articulated, Fence Arm
High Light:

Gate Arms Barrier Gates

,

Tubular Barrier Gates



Outdoor Automatic Boom Vehicle Barrier Gate , Gate Arms Barrier Gates







Technical Parameters





  Size 344*284*1050 mm
Weight 55kg.
Length 3 to 6 meters
Working environment indoor or outdoor
Working power  AC220V/150W
Lifting time 3-6 seconds
Temperature -10 Celsius  to 50 Celsius
 Relative humidity :≤90% no condensation







Functions& Features



1 . equipped the software trap with hardware watchdog chip control, never crash

2.sophisticated automatic tracking balancing mechanism to allow arbitrary position static torque is

zero, and thus reduce the maximum driving power and extend the life of the body

3.box adopt advanced waterproof structure and the outdoor anti-aging spray treatment,durable,do

not fade Electrical characteristics:

1 . using magnetic induction hall devices to stroke control, non-contact work, never wear offset.

2.Adopting optocoupler, non-contact, zero-crossing conduction technology,no spark interference

in control board,high reliability work

3 . lifting timeout and motor overheat protection, to prevent the gates of non-normal damage

4 . cut power protection by double mechanical limit switch

5. optically isolated serial communication interface, isolation voltage greater than 1500V, to ensure

the safety of the host computer, antiautomobile spark strong electromagnetic interference, high reliable

 communication characteristics of the movement performance:

1 . non-uniform motion, fast start, slow stop, run more smoothly.

2.all activities connected joints installed bearings, and refill with antifreeze oil (stable operation in

north and south regions)

3.reasonable structure design, can the barrier the lever always keep running in the range of 90

degrees, and do not need to adjust the vertical and horizontal position

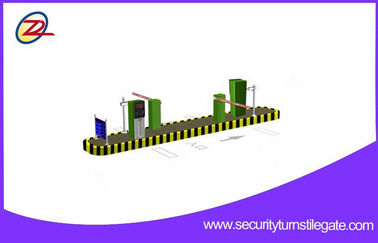

Outdoor Automatic Boom Vehicle Barrier Gate , Gate Arms Barrier Gates 0

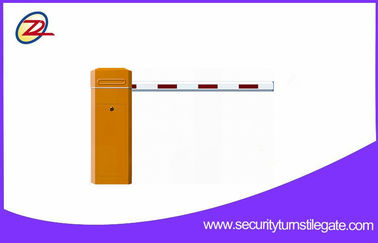

Outdoor Automatic Boom Vehicle Barrier Gate , Gate Arms Barrier Gates 1





Q:On power,but turnstile gates take no action



1)Q: Zero light of the control board and the power indicator light turns red,normal, but motor does

not move



A.Detecting the motor terminals MA, MB at both ends if there is voltage output (DC24V).

If there is output, detect whether electrical connection is  sealed off or not;Check whether motor are

 damaged or not,red and black wire of the motor connected directly to battery;



B.If the above checks are normal,movement may exist stuck state,first access red and black cable of

motor to battery,let the arm back to zero,then recovery the red and black wire of motor,with a manual

switch test.

If arm will have action,but not smooth,it means movement has hit damage,should repair movement.





2) Zero position of control board  indicator and power indicator turn red.Oneyellow LED

is light in left in place or right in place,



shows zero limit board has problem,need to change zero limit board.
