Shenzhen Turnstile Technology Co., Ltd.
High quality, Best service,Reasonable price.
 |
| Place of Origin: | China |
| Brand Name: | Centuryfair |
| Certification: | CE |
| Model Number: | SJSPD002B |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export standard carton |
| Delivery Time: | 7-10 days after payment confirmed |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000 sets per month |
| Finish: | Powder Coating | Color: | Customizable |
|---|---|---|---|
| Life Cycle: | More Than 3.5 Million Times | Arm Type: | Straight/ Articulated/ Fence/ Telescopic |
| Support: | Loop Detector, IR Sensor, Traffic Indicator | Service: | OEM/ODM Available |
| High Light: | automatic parking barrier,Security Parking Barrier |
||
Users' Manual for barrier gate .pdf

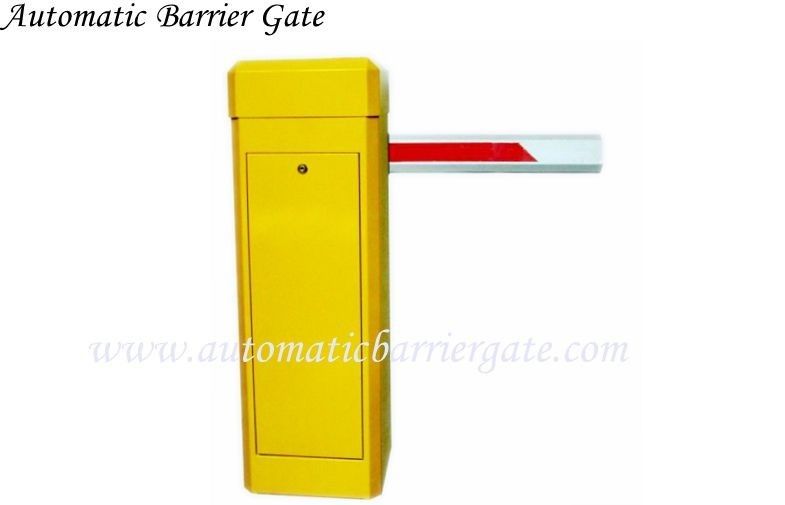

High Grade Car Parking Barrier Gate System for Living Area
Quick details:
1. use simple driving actuating mechanism to reduce mechanical failer and maintenance free
2. equiped with high- sensibility magenet sensing limit control system
3.Working model:Remote control, push button and manual handle
4.Working environment:indoor or outdoor
5.Rising/falling time:3s/6s
6.Standard lever length:<=4.5m
Description:
SJSPD002B is widely applictated in school ,hospital,supermarket,parking lot ,living area ,army ,ect.
The machine employes 2.5m cold rolled plate, single phase asynchronous motor and high grade car painting.It is beautiful in design and effective in performance, outstanding among similar products both for competitive price and unique design.
Applications:
School
Hospital
Army
Living area
Government.,etc
Specifications:
|
Supply Voltage |
AC220v+/-10% or AC110V |
|
Power Frequency |
50/60Hz |
|
Rated Power |
60W |
|
Rated Speed |
1500r/min |
|
Rated Torque |
35N. m |
|
Standard Lever Length |
<=4.5m |
|
Noise |
<=60dB |
|
Rising/Falling Time |
6s |
|
Service Life |
More than 3.5 million times |
|
Error Action |
<=0.01% |
|
Working mode |
Remove control, push button and manual handle |
|
Working temperature |
-25℃-60℃, relative humidity <95%, without dew |
|
Working environment |
Indoor or outdoor |
|
Weight |
75 kgs |
Competitive Advantages:
1. use simple driving actuating mechanism to reduce mechanical failer and maintenance free
2. equiped with high- sensibility magenet sensing limit control system
3. able to work with infrared photocells or vehicle detector , preventing vehicle from damaging
4. Special balance device to keep the lever opening vertically and closing horizontally.
5. convenient to control by remove control, manual switch, also open by handle when power off
6. the lever is made of high strength aluminum alloy covered with shining film, good performance in prompting .
7. adopt thermal protection functions to turn off the motor automatically when temperature is higher than 135℃
8. equiped with traffic indicator which is very helpful in bad weather.
9. high grade car painting
10. able to work with straight/articulated/ fence/ telescopic lever
Additional Information:
Package: export standard wood carton
Delivery date: 7-10 days after payment confirmed
Payment terms: 50% T/T in advance, the balance 50% paid before shipment
Approval: CE, CCC
Factory support : ISO 9001: 2008
OEM/ ODM service acceptable
Contact Person: Mr. Shen
Tel: 86-135367899
Fax: 86-755-423479
