Place of Origin: | Shenzhen China |
Brand Name: | Noble |
Certification: | CE RoHS |
Model Number: | NBLD-100 |
Minimum Order Quantity: | 5 pieces |
---|---|
Price: | USD 31-55 Piece |
Packaging Details: | Carton box 10*10*10cm |
Delivery Time: | Depend on quantity |
Payment Terms: | T/T, Western Union, MoneyGram, Paypal |
Supply Ability: | 30000pieces/month |
Color: | Yellow | Sensitivity: | Adjustable |
---|---|---|---|
Reaction Time: | 10ms | Power Consumption: | 4.5VA |
Dimension: | 78x40x108 Mm (L X W X H) | Loop Connection Wiring: | Maximum Length 20 Meters Twisted At Least 20 Times Per Meter |
High Light: | vehicle detection loops,gate loop detector |

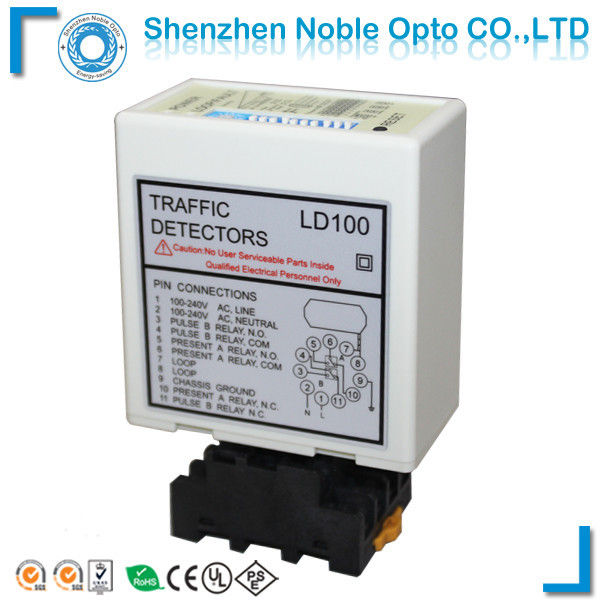

Automatic Inductive Single Channel Loop Detector With Yellow Traffic Light
Specification:
Supply voltage |
AC110V or 220V |
Voltage tolerance AC |
+10% / -15% |
Voltage tolerance DC |
±15% |
Power Consumption |
4.5VA |
Operating temperature |
-20°C to +65°C |
Storage temperature |
-40°C to +85°C |
Frequency range |
20 kHz to 170 kHz |
Reaction time |
10ms |
Sensitivity |
Adjustable |
Dimension |
78x40x108 mm (L x W x H) |
Signal lasting time |
Unlimited / limited when |
|
loop is permanently covered 10 minutes |
Loop connection wiring |
Maximum length 20 meters |
|
twisted at least 20 times per meter |
Loop inductance |
Total loop plus connection wiring |
|
50μH to 1000μH/Ideal is 100μH to 300μH |
Functions & Features:
1. Open the barrier gate by motor wheel when power off and automatic locking when power on
2. Balanced boom running with a motor transmission of cranks and shafts
3. Remote control to operate the barrier gate
4. Auto-reverse when the boom meets obstruction
5. Infrared photocells interface is available
6. Loop detector interface is available
7. Well-integrated with car parking system equipments, with wire control (push button)
8. Interface for traffic light
9. Offering dry contact signal for car parking system (COM, NC, NO)
10. Auto-delay when closing (adjustable)
11. Remote control frequency: 315 MHz, 418MHz, 433MHz
Application & Advantages:
1. Loop detector is used in vehicle access control areas to keep the barrier gate opening until the vehicle leaves the covering area
2. Loop detectors are used wherever vehicles have to be detected. Like monitoring and safe guarding access ways to counting vehicles.
3. The output signal can be used for controlling door and gate drive mechanisms, operating barriers, controlling traffic light systems in car parks or activating card dispensers in car parks.
Packaging
Selling units |
single item |
Single package size |
10*10*10cm |
Single gross weight |
0.5kgs |
Package Type |
Carton |
Advantages
1. Standard; GB2003-14887:EN12368
2. OEM and ODM services
3. Well-packed with K carton+EPE
4. Delivery on time&support via UPS/DHL/EMS/Sea&air.etc
5. Reply you within 24 hours
6. Free maintenance during warranty period if any problems except man-made or natural factors.
7. Video to show you how to use our traffic controller system if necessary.
Trade Terms
1. Payment: T/T, 30% deposits before production, 70% balance to be paid before delivering(Western Union or Escrow, Cash are welcomed).
2. Production lead time for samples:1-2 work days: 1-300sets: 5-7 work days: 7-10 work days: >500sets 10-15 work days.
3. Shipping port: Shenzhen, Mainland China.
4. MOQ: 5 sets
5: Warranty: 2 years
Functions & Features:
1. Open the barrier gate by motor wheel when power off and automatic locking when power on
2. Balanced boom running with a motor transmission of cranks and shafts
3. Remote control to operate the barrier gate
4. Auto-reverse when the boom meets obstruction
5. Infrared photocells interface is available
6. Loop detector interface is available
7. Well-integrated with car parking system equipments, with wire control (push button)
8. Interface for traffic light
9. Offering dry contact signal for car parking system (COM, NC, NO)
10. Auto-delay when closing (adjustable)
11. Remote control frequency: 315 MHz, 418MHz, 433MHz
Company Introduction
Shenzhen Noble OPTO Co.,Ltd is a high tech private company, specialized in research, development, sales M2M(Machine to Machine,Man to Machine),the internet of things,play&plug product and solution. Mainly engaged in developing, producing and salesof Led traffic light, Led tube light, arrow board led street light, parking system, etc.
Since the extablishment of the company, we recognize the importance of providing good quality products and best pre-to after-sale service, and we are always trying our best to improve out design and production capacity.
We enjoy highly trained management team, skilled design and development team. Strict ISO9001:2000 quality control system and CE, RoHS certificate.Morever most of our products are exported to oversea market, such as America, Europe, Middle Easternm, South Africa, Japan, Canada, Brazil, Malaysia, and so on.
Widely used in intersection( toll station, airport, railway station, subway), hospital, stadiums and other places.
FAQ:
1, What knid of traffic light do NOBLE have?
Diameter 100mm and 200mm and 300mm for traffic light core and traffic light, and vehicle traffic, direction, pedestrian signal light.
2, OEM/ODM service?
yes,we accept OEM/ODM order,minimum order is:traffic light module:1000PCS,complete traffic signal light:500sets
3, prices valid time?
it is 90days.
4, LED wavelength?
Red:620~630nm,Voltage:2.0-2.2V,Amber:585-595nm,voltage:2.0-2.2V,Green:500-505nm,voltage:3.0-3.3V
5, Our traffic light IP rating?
IP65.
6, Work voltage?
100-277VAC,or 12VDC,24VDC/AC.
7, Where are your company solar traffic light system projects:
South Africa,Nigeria,Congo,Libya,Zimbabwe,Mozambique ect..
8, Whole solar traffic light system include?
Including traffic light,controller,battery,solar panel,solar charge,pole,controller box,cable.
9, Is easy to install the solar traffic lgiht system?
Yes,it is easy.If any problem on installtion of traffic light,we will provide you video to show,or let you contact our engineer to consult directly.
10, How long warranty is the solar traffic light system?
Traffic light and controller,our warrenty is 2 years,Solar panel and battery,only 1 year warranty.
11, Why choose Noble?
Our company is professional on traffic light system.
