Shenzhen Turnstile Technology Co., Ltd.
High quality, Best service,Reasonable price.
 |
| Place of Origin: | China |
| Brand Name: | JZH |
| Certification: | CE,ISO |
| Model Number: | BG201 |
| Barrier Gate longevity: | heavy duty |
|---|---|
| Barrier Gate speed: | 1s to 6s |
| Barrier Gate package: | carton or wooden |
| Barrier Gate Arm: | Straight, folding, fencing |
| Barrier Gate Warranty: | one year |
| Barrier Gate Material: | aluminum/copper |
| Barrier Gate main Production: | die-casting |
| Barrier Gate color: | orange/blue/yellow/blue/grey |
| Package: | carton or wooden |
| Minimum Order Quantity: | 1 Piece/Pieces |
|---|---|
| Price: | US $ 0 - 1 / Piece |
| Packaging Details: | carton or wooden |
| Delivery Time: | 3- 7 working days |
| Payment Terms: | T/T,Western Union,MoneyGram |
| Supply Ability: | 1500 Piece/Pieces per Month |
| High Light: | barrier gate,boom barrier,traffic barrier |
||
|---|---|---|---|

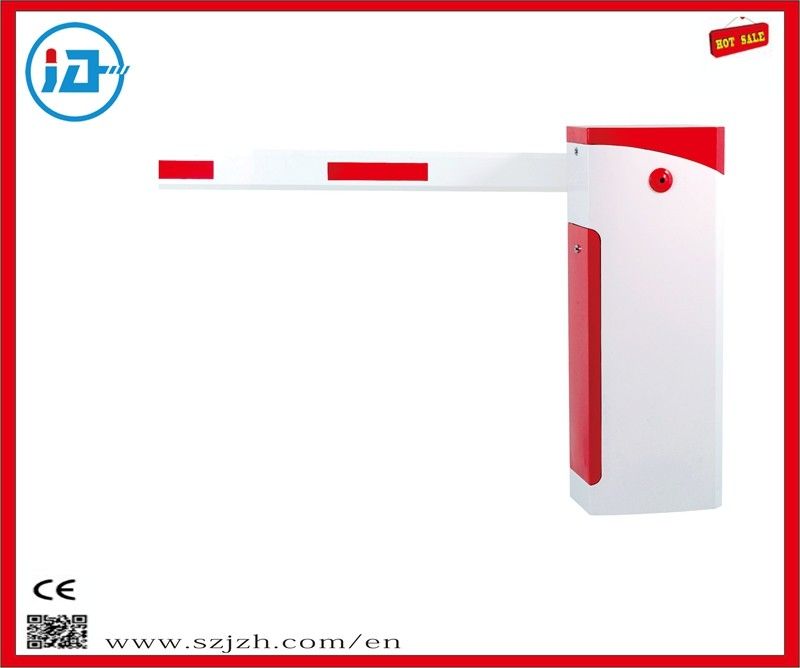

Security Safety Fast Speed Automatic Gate Barrier
Features:
1. Manual release
2. Machine core with compression spring, effectively avoids the accidents caused by spring breaking
3. Die-casting aluminum alloy motor, precision and good at thermal radiating
4. Motor cooling fan, solving the problem of heat-protection
5. Double safety limit switches (photoelectricity limit switch/motor memory sensor)
6. Reversing on obstacle
7. Auto-closing
8. Support the INFRARER PHTOCELL for anti-bumping function (optional)
9. Support the external and internal VEHICLE LOOP DETECTOR (optional)
10. Traffic light interface
11. Wire control (switch signal)/ Remote control (418MHZ)
12. RS485 communication module (optional)
Running time | 1 sec | 3 sec | 6 sec | 3 sec | 6 sec | 3 sec | 6 sec | 3 sec | 6 sec | |
Boom type | Straight | 90°folding | 180°folding | 2 fence | 3 fence | |||||
Max boom length | 3m | 4.5m | 6m | 3m | 5m | 3m | 5m | 4.5m | 4m | |
Boom dimension (W×H) | 45x80mm | 45x100mm | ||||||||
Boom weight | 3kg | 4.5kg | 5kg | 6.5kg | 8kg | 9kg | 11kg | 7kg | 7.5kg | |
Voltage | 220V±10%, 110V±10% | |||||||||
Frequency | 50/60HZ | |||||||||
Motor voltage | 220V | |||||||||
Power | 120W | |||||||||
Working temperature | -40°C~+75°C | |||||||||
Protection grade | IP44 | |||||||||
Carton or Wooden
