Place of Origin: | China |
Brand Name: | TENET |
Certification: | CE/ROHS/FCC/SGS |
Model Number: | TAB Series |
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | negotiation |
Packaging Details: | Packed in standard carton |
Delivery Time: | 10 working days after received your payment |
Payment Terms: | T/T and western Union |
Supply Ability: | 3,000pcs per month |
Product Name: | TAB Series | Work Voltage: | AC 220V/110V |
---|---|---|---|
Motor Rated Power: | 80W | Arm Type: | Straight,folding, Fence |
Application: | Exit Terminal | Work Temperature: | -35~75 Degree |
Working Noise: | <60dB | Demension: | 340*275*1020mm |
Color: | Yellow,gray,orange | Raising/Falling Time: | 1.5s/3s/5s |
High Light: | arm barrier gate,Automatic barrier gate |

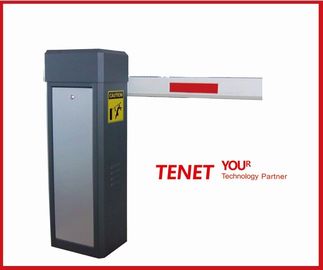

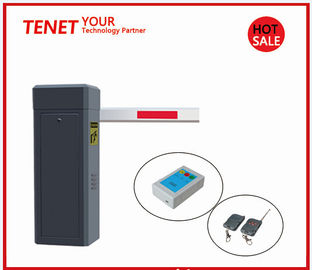

Fast speed Parking Barrier Gate management system , gray boom gate
(1) Free-maintenance torque motor ensures 100% duty cycle operation with 5 million MTBF.
(2) Easy installation and maintenance reduces your labor cost.
(3) System always automatically self-checks operation status and reports errors shown on the LED tube of the controller.
(4) Anti-collision mechanism will protect the boom arm not to be damaged once boom arm was collided by vehicle.
(5) Anti-hit by pressure resistance bounce.
(6) Motor over-current protection,steady,low noise,fast speed.
(7) Team release function.
Selection of parameters
Model | Arm | Arm Lenth | Speed Range |
TAB-320Y | Straight | L<4M , 4M<L<6M | 3s,5s |
TAB-310G | Straight | L<4M , 4M<L<6M | 3s,5s |
TAB-330R | Straight | L<4M , 4M<L<6M | 3s,5s |
TAB-321Y | Folding | L<4M | 5s |
TAB-312R | Fence | L<4M | 5s |
TAB-510R | Straight | L<3M | 1.5s |
TAB-512O | Straight | L<3M | 1.5s |
Advantages
| Tenet barrier | Common barrier |
Electric machine | Adopt advanced version from global | Adopt common version from domestic company |
Voltage supporting | 110-260V | Just support 220V |
Control board | Advanced imported chip | Common domestic chip |
Component treatment | HDG(hot dip galvanizing) | Cold Galvanizing |
Anti-crash function | Yes | No |
Voice prompt function | Yes | No |
Traffic light prompt function | Yes | No |
Count function | Yes | No |
Delay closed function | Yes | No |
Surface treatment | adopt baking varnish to make the shell surface waterproof and antirust for five years | Adopt low technology handling methods ,just can be waterproof and antirust for one year |
Operation methods | Reading card, remote control, manual button | Without remote control |
Shell thickness | Can be up to 2.0mm | Just can be up to 1.5mm |
Patent design | Yes | No |
Dimension
NO. | Card dispenser Working states | Buzzer Output | Port Output |
1 | Reset | Consecutive ring“toot toot” | No |
2 | Lack card (can dispense card) | Interval ring “toot” | Lower |
3 | Jam card (can’t dispense card) | Interval ring “toot toot” | Error |
4 | Overtime error (can’t dispense card) | Interval ring “toot ,toot, toot” | |
5 | Warehouse full (can dispense card) | Interval ring “toot,toot ,toot, toot” | |
6 | Empty | Interval ring “toot,toot ,toot,toot, toot” | Lower |
NO. | Card dispenser Working states | Buzzer Output | Port Output |
1 | Reset | Consecutive ring“toot toot” | No |
2 | Lack card (can dispense card) | Interval ring “toot” | Lower |
3 | Jam card (can’t dispense card) | Interval ring “toot toot” | Error |
4 | Overtime error (can’t dispense card) | Interval ring “toot ,toot, toot” | |
5 | Warehouse full (can dispense card) | Interval ring “toot,toot ,toot, toot” | |
6 | Empty | Interval ring “toot,toot ,toot,toot, toot” | Lower |
