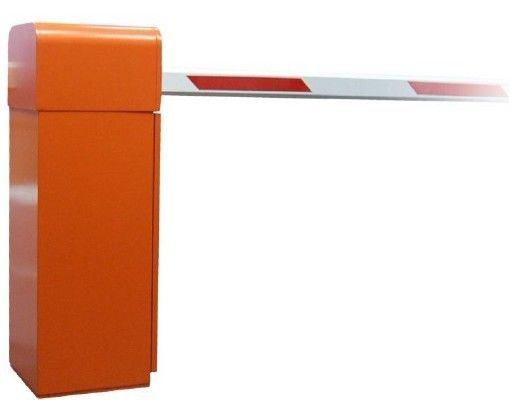

Outdoor Remote Control Electrical Highway, Airport Automatic Traffic Barrier Gate (1.4s)

Outdoor Remote Control Electrical Highway, Airport Automatic Traffic Barrier Gate (1.4s)

  • Outdoor Remote Control Electrical Highway, Airport Automatic Traffic Barrier Gate (1.4s)
  • Outdoor Remote Control Electrical Highway, Airport Automatic Traffic Barrier Gate (1.4s)
  • Outdoor Remote Control Electrical Highway, Airport Automatic Traffic Barrier Gate (1.4s)
  • Outdoor Remote Control Electrical Highway, Airport Automatic Traffic Barrier Gate (1.4s)
Outdoor Remote Control Electrical Highway, Airport Automatic Traffic Barrier Gate (1.4s)
Product Details:
Place of Origin: China
Brand Name: Centuryfair
Certification: CE
Model Number: SJSPD003B2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Export standard carton
Delivery Time: 7-10 days after payment confirmed
Payment Terms: T/T, Western Union, L/C
Supply Ability: 800 pcs per month
Contact Now
Detailed Product Description
Opening/closing Time: 1.4s Life Cycle: More Than 5 Million Times
Finish: Powder Coatng Color: Customizable
Motor Type: Torque Controller: Microprocessor Type
Support: Loop Detector, IR Sensor, Traffic Indicator Service: OEM/ODM Available
High Light:

car park barrier

,

automatic parking barrier

Catalogue-Toll Gate SJSPD003.pdfUser manual for toll gate.pdf



Outdoor Remote Control Electrical Highway, Airport Automatic Traffic Barrier Gate (1.4s)



Description:

SJSPD003B2 employs special torque motor and master controller with high integration and stong logic function.  Multiple working modes to meet different demands and several interfaces for external device.



Applications:

 Highway

Airport

Bus station

Supermarket

Army

And other places with heavy traffic flow



 Specifications:

Supply Voltage

AC230V or AC110V

Power Frequency

50/60Hz

Rated Power

80 W

Rated Speed

20r/min

Rated Torque

18N. m

Standard Lever Length

<=3.0m straight lever

Noise

<=60dB

Rising/Falling Time

1.4s

Service Life

more than 5 million times

Error action

<=0.01%



Competitive Advantages:

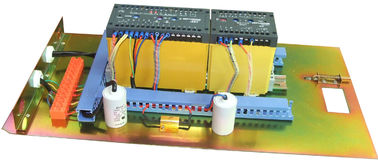

1. The master controller employs the hi-reliable microprocessor

   a. high integration and strong logic function

   b. multiple operation modes available

   c. several interfaces for external devices available

2. The core technology employs the special AC220V torque motor

 a. maintenance-free motor,  work normally under extremely climates

 b. use sine generator to reduce mechanical failure greatly

 c. power protection in case of instant heavy current,  voltage fluctuation

3. All-round safety protection

  a. collision prevention

  b. LED traffic signal (optional)

  c. infrared ray protection (optional)

  d. remote control (optional)

  e. falling protection (optional)



Additional Information:
    Package: export standard wood carton
    Delivery date: 7-10 days after payment confirmed
    Payment terms: 50% T/T  in advance, the balance 50% paid before shipment
    Approval: CE, CCC
    Factory support : ISO 9001: 2008
    OEM/ ODM service acceptable

Outdoor Remote Control Electrical Highway, Airport Automatic Traffic Barrier Gate (1.4s) 0Outdoor Remote Control Electrical Highway, Airport Automatic Traffic Barrier Gate (1.4s) 1
