Shenzhen Turnstile Technology Co., Ltd.
High quality, Best service,Reasonable price.
 |
| Place of Origin: | China |
| Brand Name: | Centuryfair |
| Certification: | CE |
| Model Number: | SJSPD003DZ |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export standard carton |
| Delivery Time: | 7-10 days after payment confirmed |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 800 pcs per month |
| Opening/closing Time: | 3.2s | Color: | Customizable |
|---|---|---|---|
| Life Cycle: | More Than 5 Million Times | Controller: | Microprocessor Type |
| Motor Type: | Torque | Support: | Loop Detector, IR Sensor, Traffic Indicator |
| Service: | OEM/ODM Service | ||
| High Light: | car park barrier,automatic parking barrier |
||
User manual for toll gate.pdf, Catalogue-Toll Gate SJSPD003.pdf

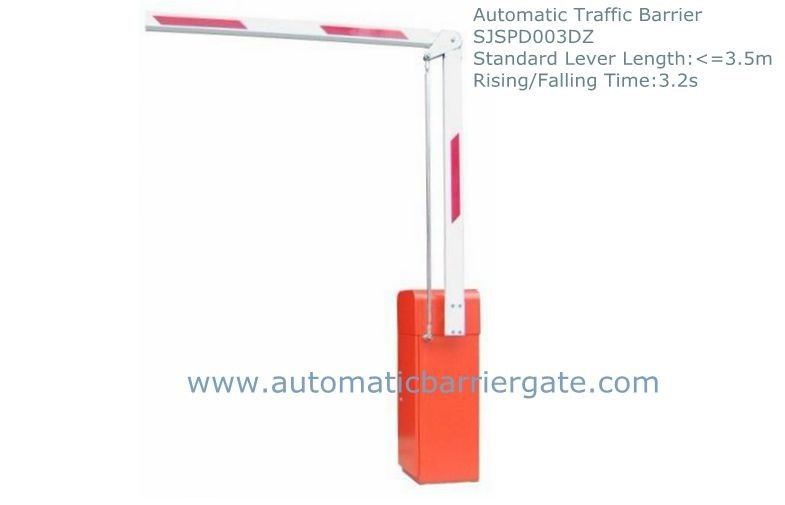

AC230V 50Hz Highway Automatic Traffic Barrier Gate 3.2s for Car Parking Lot
Quick details:
1.Falling/rising time:3.2 s
2.Standard level length:3.5m
3.Falling protection , infrared ray protection,and collision prevention
4.Hi-reliable microprocessor
5.Multible interfaces for external devices available
6. Special AC220V torque motor
Description:
SJSPD003DZ ultilizes special designed AC220V torque motor.The master controller employs the hi-reliable microprocessor, with the traits of high integration and stong logic function. Multiple working modes to meet different demands and several interfaces for external device.The barrier gate is equipped with all-round safety protection,which is an ideal barrier for highway,parking lot,living area,and any other places with heavy traffic flow.
Applications:
Highway
Airport
Bus station
Supermarket
Army
And other places with heavy traffic flow
Specifications:
|
Supply Voltage |
AC230V or AC110V |
|
Power Frequency |
50/60Hz |
|
Rated Power |
80 W |
|
Rated Speed |
10r/min |
|
Rated Torque |
30N. m |
|
Standard Lever Length |
<=3.5m |
|
Noise |
<=60dB |
|
Rising/Falling Time |
3.2s |
|
Service Life |
more than 5 million times |
|
Error action |
<=0.01% |
Competitive Advantages:
1. The master controller employs the hi-reliable microprocessor
a. high integration and strong logic function
b. multiple operation modes available
c. several interfaces for external devices available
2. The core technology employs the special AC220V torque motor
a. maintenance-free motor, work normally under extremely climates
b. use sine generator to reduce mechanical failure greatly
c. power protection in case of instant heavy current, voltage fluctuation
3. All-round safety protection
a. collision prevention
b. LED traffic signal (optional)
c. infrared ray protection (optional)
d. remote control (optional)
e. falling protection (optional)
Additional Information:
Package: export standard wood carton
Delivery date: 7-10 days after payment confirmed
Payment terms: 50% T/T in advance, the balance 50% paid before shipment
Approval: CE, CCC
Factory support : ISO 9001: 2008
OEM/ ODM service acceptable
