Description:

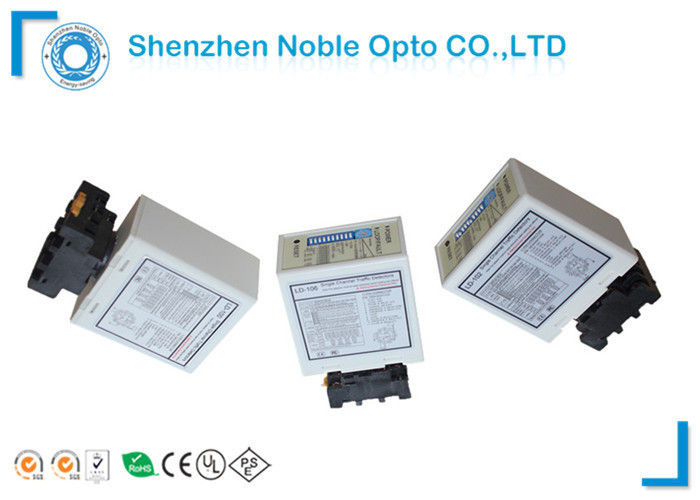

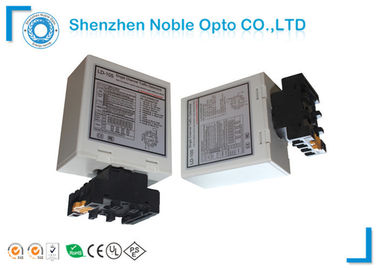

Noble vehicle loop detectors are used wherever vehicle have to be detected such as monitoring and safe guarding
access ways or for counting vehicles. The output signal can be used for controlling door and gate drive
mechanisms, operating barriers.controlling traffic light systems in car parks or activating card dispensers in car parks.



NBLD200 has two-way output relays. Two outputs of them are unlimited when the corresponding loop
is permanently covvered,while the others are multi-mode that can be set by users.the direction detecting.
function can be used to statistics vehicle flux.the principle is based on a change in the inductance
within the loop which is caused by the metallic components of passing vehicle.the changes are picked
up and evaluated by a microprocessor.ease of use thanks to automatic calibration when the operation
voltage applied.







Specification:



Supply voltage	AC110V or 220V
Voltage tolerance AC	+10% / -15%
Voltage tolerance DC	±15%
Power Consumption	4.5VA
Operating temperature	-20°C to +65°C
Storage temperature	-40°C to +85°C
Frequency range	20 kHz to 170 kHz
Reaction time	10ms
Sensitivity	Adjustable
Dimension	78x40x108 mm (L x W x H)
Signal lasting time	Unlimited / limited when
	loop is permanently covered 10 minutes
Loop connection wiring	Maximum length 20 meters
	twisted at least 20 times per meter
Loop inductance	Total loop plus connection wiring
	50μH to 1000μH/Ideal is 100μH to 300μH



Functions & Features:

1. Open the barrier gate by motor wheel when power off and automatic locking w

hen power on
2. Balanced boom running with a motor transmission of cranks and shafts
3. Remote control to operate the barrier gate
4. Auto-reverse when the boom meets obstruction
5. Infrared photocells interface is available
6. Loop detector interface is available
7. Well-integrated with car parking system equipments, with wire control (push button)
8. Interface for traffic light
9. Offering dry contact signal for car parking system (COM, NC, NO)
10. Auto-delay when closing (adjustable)
11. Remote control frequency: 315 MHz, 418MHz, 433MHz





Application & Advantages:

1. Car parking system vehicle loop detector is used in vehicle access control areas to keep the barrier       gate opening until the vehicle leaves the covering area
2. vehicle loop detector are used wherever vehicles have to be detected. Like monitoring and safe guarding access ways to counting vehicles.

3. The output signal can be used for controlling door and gate drive mechanisms, operating barriers, controlling traffic light systems in car parks or activating card dispensers in car parks.







Packaging



Selling units	single item
Single package size	10*10*10cm
Single gross weight	0.5kgs
Package Type	Carton



Advantages


1. Standard； GB2003-14887:EN12368

2. OEM and ODM services

3. Well-packed with K carton+EPE

4. Delivery on time&support via UPS/DHL/EMS/Sea&air.etc

5. Reply you within 24 hours

6. Free maintenance during warranty period if any problems except man-made or natural factors.

7. Video to show you how to use our traffic controller system if necessary.


Trade Terms


1. Payment: T/T, 30% deposits before production, 70% balance to be paid before delivering(Western Union or Escrow, Cash are welcomed).

2. Production lead time for samples:1-2 work days: 1-300sets: 5-7 work days: 7-10 work days: ＞500sets 10-15 work days.

3. Shipping port: Shenzhen, Mainland China.

4. MOQ: 5 sets

5: Warranty: 2 years



Functions & Features:


1. Open the barrier gate by motor wheel when power off and automatic locking when power on
2. Balanced boom running with a motor transmission of cranks and shafts
3. Remote control to operate the barrier gate
4. Auto-reverse when the boom meets obstruction
5. Infrared photocells interface is available
6. Loop detector interface is available
7. Well-integrated with car parking system equipments, with wire control (push button)
8. Interface for traffic light
9. Offering dry contact signal for car parking system (COM, NC, NO)
10. Auto-delay when closing (adjustable)
11. Remote control frequency: 315 MHz, 418MHz, 433MHz



Company Introduction


    Shenzhen Noble OPTO Co.,Ltd is a high tech private company, specialized in research, development, sales M2M(Machine to Machine,Man to Machine),the internet of things,play&plug product and solution. Mainly engaged in developing, producing and salesof Led traffic light, Led tube light, arrow board led street light, parking system, etc.
    Since the extablishment of the company, we recognize the importance of providing good quality products and best pre-to after-sale service, and we are always trying our best to improve out design and production capacity.
    We enjoy highly trained management team, skilled design and development team. Strict ISO9001:2000 quality control system and CE, RoHS certificate.Morever most of our products are exported to oversea market, such as America, Europe, Middle Easternm, South Africa, Japan, Canada, Brazil, Malaysia, and so on.
Widely used in intersection( toll station, airport, railway station, subway), hospital, stadiums and other places.



FAQ:

4, Our vehicle loop detector IP rating?


IP65.


6, Work voltage?


110-240VAC or 12VDC,24VDC/AC.


7, Where are your company solar traffic light system with vehicle loop detector projects:


South Africa,Nigeria,Congo,Libya,Zimbabwe,Mozambique ect..


8, Whole solar traffic light system and vehicle loop detector include?


Including traffic light,controller,battery,solar panel,solar charge,pole,controller box, vehicle loop detector cable.


9, Is easy to install the solar traffic lgiht system and vehicle loop detector?


Yes,it is easy.If any problem on installtion of traffic light and vehicle loop detector,we will provide you video to show,or let you contact our engineer to consult directly.


10, How long warranty is the solar traffic light system and vehicle loop detector?


Traffic light, controller and vehicle loop detector,our warrenty is 2 years,Solar panel and battery,only 1 year warranty.


11, Why choose Noble?


Our company is professional on traffic light system and vehicle loop detector
