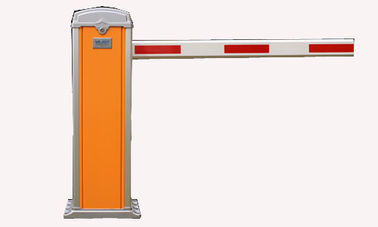

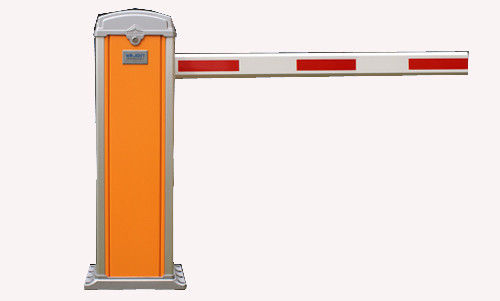

Single Pole Gate Road Boom Barrier Gate System In Driveway / Parking Lot

Single Pole Gate Road Boom Barrier Gate System In Driveway / Parking Lot

  • Single Pole Gate Road Boom Barrier Gate System In Driveway / Parking Lot
  • Single Pole Gate Road Boom Barrier Gate System In Driveway / Parking Lot
  • Single Pole Gate Road Boom Barrier Gate System In Driveway / Parking Lot
Single Pole Gate Road Boom Barrier Gate System In Driveway / Parking Lot
Product Details:
Place of Origin: Shenzhen,China
Brand Name: Integer
Certification: CE, ISO, SGS
Model Number: IBG-601
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Carton(1 unit): 1020*375*467mm
Delivery Time: 5~15
Payment Terms: T/T
Supply Ability: 3000units per month
Contact Now
Detailed Product Description
Model: IBG-201 Color: Optional
Weight: 60kg Power Frequency: 50/60Hz
Steel Thickness: 2.5mm Voltage: AC 220v, 110v
Material: Cold-rolled Steel Plate Dimension: 1020*375*467mm
High Light:

driveway barrier gates

,

security barrier gate

Single Pole Gate Road Boom Barrier Gate System In Driveway / Parking Lot





IBG-103 has wide application in road,parking lot,school ,hospital,supermarket,living area,ect.
The machine is beautiful in design and excellent in performance.The barrier casing are powder
coated by high class paint with uvioresistant function and the barrier boom is made of high strength
aluminum alloy tube covered with light-reflecting material to warn the driver.It is outstanding among
similar products for its reasonable price and high quality.





Specifications

  • water-proof and rust-proof coating.
  • 2.5mm cold-rolled steel plate
  • Anti-bumping function
  • aluminum alloy arm



Application :



Used to control vehicles at customs, military bases, important government, departments, airports, jails, nuclear power stations, docks, logistic centers, gardens, public parking place etc. Our products has a solid and endurable structure





Technical data:



IBG-201

Arm Type

Straight Arm

Arm material

aluminum alloy

Arm length

≤ 6.0m

Rail up or down time

1.8s-6s optional

Motor power

AC220/50Hz

Frequency

50~60Hz

Protection class

IP65

Operating temperature

 -45 to 80

Operating humidity

 ≤ 90% non-condensing

Dimensions

345x295x1000

Material

2.5mm cold-rolled steel plate with waterproof and rustproof coating

Communication Interface

Standard RS485

Communication Range

800-1200m

Functions

remote control

Anti-bumping function to protect cars and pedestrain

 Solid and endurable structure, strong bearing capacity

Manual operating mode is provided

In case of electric failure or trouble, it can manually operate the movable barrier to return to
the horizontal position
