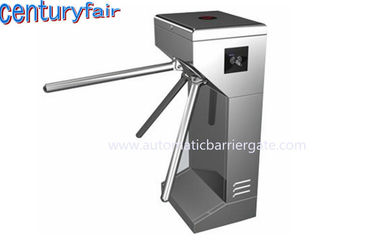

ID Card LED Double Direction Prompt Vertical Tripod Turnstile Gate for Supermarket

ID Card LED Double Direction Prompt Vertical Tripod Turnstile Gate for Supermarket

    • ID Card LED Double Direction Prompt Vertical Tripod Turnstile Gate for Supermarket
  • ID Card LED Double Direction Prompt Vertical Tripod Turnstile Gate for Supermarket

    Product Details:

    Place of Origin: China
    Brand Name: Centuryfair
    Certification: CE
    Model Number: SJSDZG-1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Export standard carton
    Delivery Time: 10-15 days after payment confirmed
    Payment Terms: T/T, Western Union, L/C
    Supply Ability: 300 pcs per month
    Contact Now
    Detailed Product Description
    Communication Interface: RS485 Opening Time: 0.2 Second
    Speed: 20--30 Persons/min Housing Dimension: 420*330*980mm
    Arm Length: 510mm Weight: 40 Kgs
    High Light:

    time attendance gate

    ,

    automatic barrier gates

    Vertical Stainless Steel Tripod Turnstile Gate For Park or Airport

    Quick details:
    1.Framework:304# Stainless Steel
    2.Single direction or bidirection
    3.3groups of infared sensor
    4.NO/NC two models for option  to relieve heavy traffic
    5.Dynamic super bright LED display to show the direction


    Description:
    SJSDZG1 provides a basic tripod to control access smoothly and effectively by basic operation,
    and also prevent illegal entry and exit. The machine has good performance in design, rustproof,
    durable and can resist external destroy, compatible with RFID access control devices, fingerprint
    controller, barcode and so on.


    Applications:
    Bus Station
    Exhibition
    Airport
    Subway
    Government
    Supermarket
    Apartment

    Factory

    Museum
    Park and so on


    Specifications:

    Framework

    304# Stainless Steel

    Dimension

    420*330*980mm

    Weight

    40 kgs

    Arm length

    510mm

    Max Arm load

    80 kgs

    Arm working  force

    3 kgs

    Arm driving way

    Digital

    Open time

    0.2 second

    Transit speed

    20——30 persons per minute

    Temperature

    -10℃—— 50℃

    Relative humility

    ≤90%,  no-condensation

    Communication interface

    RS485,  distance ≤1200M

    Input interface

    dry contact signal or 12V level signal,  or 12V pulse signal with whose pulse width >100ms,  driven electricity >10mA


    Competitive Advantages:

    1. Single direction or double direction for option

    2. A valid lock action can allow one passage at one time

    3. Normally open---the machine will unlock when a valid signal is received

    4. The gate will lock automatically if passagers do not pass it within giving time.  The passing time is

    adjustable for different requirement.

    5. The arm falls down automatically in case of power off

    6. Count and LED digital function (optional)

    7. Traffic light guides traffic direction

    8. Easy to be integrated with magnetic card, barcode card, ID card,  IC card,  etc

    9. Memory function

    10. Standard input/output port to integrate with other systems

    ID Card LED Double Direction Prompt Vertical Tripod Turnstile Gate for Supermarket 0
