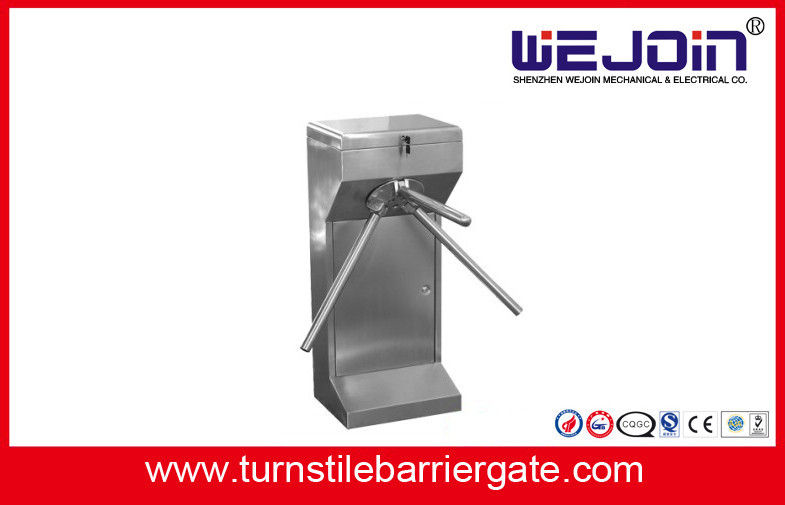

Supermarket Safety Tripod Turnstile Barrier Gate for Customers Access Management

Supermarket Safety Tripod Turnstile Barrier Gate for Customers Access Management

    • Supermarket Safety Tripod Turnstile Barrier Gate for Customers Access Management
    • Supermarket Safety Tripod Turnstile Barrier Gate for Customers Access Management
    • Supermarket Safety Tripod Turnstile Barrier Gate for Customers Access Management
  • Supermarket Safety Tripod Turnstile Barrier Gate for Customers Access Management

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: WEJOIN
    Certification: SO 9001:2008, CE,
    Model Number: WJTS112S/WJTS122S/WJTS110S/WJTS111S

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: negotiation
    Packaging Details: Export Wooden Case
    Delivery Time: 3-15 days depending on the quantity
    Payment Terms: T/T, Western Union
    Supply Ability: 1, 000 set/month
    Trade Terms:: Ex works, CIF
    Contact Now
    Detailed Product Description
    Name: Tripod Turnstile Driving Motor: DC Motor
    Length Of Pole: Length Of Pole Relative Humidity: ≤95%
    Working Environment: Indoor / Outdoor (Shelter) Frequency: 50/60HZ

    Supermarket Safety Tripod Turnstile Barrier Gate for Customers Access Management



    Turnstile Barrier Gate Quick Detail:

    Name: Semi-automatic Tripod turnstile

    Driving Motor: Brushless DC Motor

    Power Supply: 220V±10%, 110V±10%

    Transit Speed: 30~40 persons/min

    Rated Power: 36W

    Rotating Direction: Double Direction



    Turnstile Barrier Gate Function and Features:

    [1]. A compact electro-mechanical design with an exquisite rotating plate and a self-lock mechanism

    [2]. Passable for bi-direction

    [3]. Self-locking within 5 seconds if there is no one passing after signal activation

    [4]. Arm auto dropping when power off and manually put the arm up when power on

    [5]. Person counter output is available to indicating passenger quantity; the pulse is 200MS

    [6]. Able to avoid unauthorized access

    [7]. Fire alarm emergency signal output: if with arm auto drop function, the arm will drop automatically after signal activation; if not, the arm rotating plate can operate freely and there is alarm after signal activation

    [8]. Input interfaces available for left access(L), right access(R), emergency(EM), GND; EM is in priority; NO electrical replay output with pulse between 200MS~500MS; EM signal should maintain connected when any emergency happens.

    [9]. Output interfaces available for passenger counters (left and right side); it is dynatron OC output with the pulse of 200MS; working with devices of DC 5V, 12V, 24V.

    [10]. Emergency Alarm interfaces available for alarm equipments under 12W or DC12V



    Turnstile Barrier Gate Specifications:

    Model
    Item

    WJTS122S

    WJTS110S

    WJTS112S

    WJTS111S

    Manual, Semi or Full-automatic

    Semi-automatic

    Material of Housing

    304 Stainless Steel

    Iron with Powder

    Thickness of Housing

    1.50mm

    Dimension of Housing
    (L×W×H mm)

    420×380×1000

    1235×280×1000

    1235×280×1000

    420×380×1050

    Length of Pole (out of housing)

    490mm

    Net Weight

    40kg

    70kg

    70kg

    35kg

    Max Load-bearing of Pole

    80kg

    Driving Force of Pole

    3KG

    Rotating Direction

    Double Direction

    Power Supply

    220V±10%, 110V±10%

    Frequency

    50/60HZ

    Working Voltage of Motor

    DC12V

    Rated Power

    36W

    Driving Motor

    Brushless DC Motor

    Input Interface

    dry contact with the pulse between 200ms~500ms

    Transit Speed

    30~40 persons/min

    Working Temperature

    -40°C~55°C

    Working Environment

    Indoor / Outdoor (Shelter)

    Relative Humidity

    ≤95%



    Turnstile Barrier Gate Applications:

    The tripod turnstiles can be used in places such as restaurants, hotels, office buildings, museums, gyms, clubs, metros, bus stations, high class communities, intelligent buildings, hotels, subway stations and other high level venues, ect.



    After-sale Service:

    1 year warranty

    Lifetime Service with charge accordingly



    Package Preview:

    Supermarket Safety Tripod Turnstile Barrier Gate for Customers Access Management
