TCP / IP / RFID Tripod Turnstile , Subway Stations Gate Gateways

TCP / IP / RFID Tripod Turnstile , Subway Stations Gate Gateways

    • TCP / IP / RFID Tripod Turnstile , Subway Stations Gate Gateways
    • TCP / IP / RFID Tripod Turnstile , Subway Stations Gate Gateways
    • TCP / IP / RFID Tripod Turnstile , Subway Stations Gate Gateways
  • TCP / IP / RFID Tripod Turnstile , Subway Stations Gate Gateways

    Product Details:

    Place of Origin: CHINA
    Brand Name: FUJICA
    Certification: CE
    Model Number: FJC-Z3148

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Packaging Details: WOODEN BOX
    Delivery Time: 10-15 days
    Payment Terms: T/T IN ADVANCE
    Supply Ability: 500 SET/MONTH
    Contact Now
    Detailed Product Description
    High Light:

    intelligent turnstile

    ,

    swing arm barriers

    TCP / IP / RFID Tripod Turnstile Security Systems , Subway Gate





    Description:

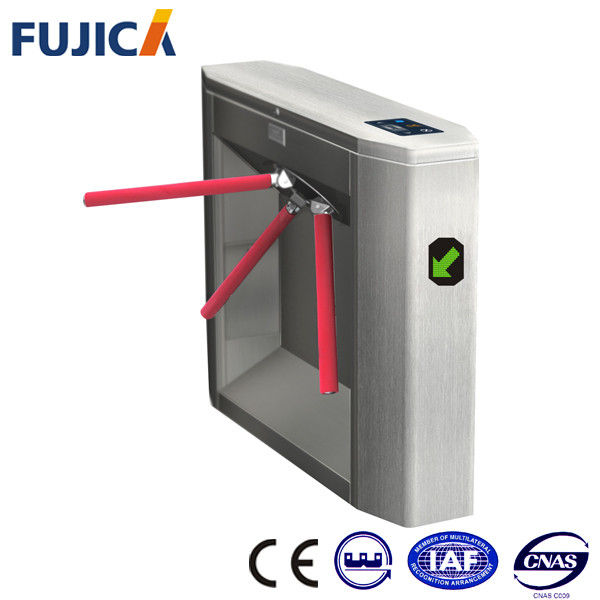

    Fujica semi-automatic tripod turnstile consists of casing, magnetic force turn plate, reader module, main controller module, direction guide, limit switch etc., can be used for entrance control, applications like apartment, factory, museum, station and ferry terminal etc.. Together with intelligent card reader/writer and management software, they are combined as intelligent tripod turnstile management system, can fulfill the functions like entrance control, time attendance, pedestrian volume control and tolling etc. The equipment opens semi-automatically, Mifare-1, IC, ID and Bluetooth are available to be used with the tripod turnstile.



    Technical parameters:



    Power consumption 50W
    Housing Size 1200*280*950 mm
    Housing material 1.5--2mm, 304# stainless steel, corosion resistant
    Drive motor NA
    Channel width 550--600 mm
    Pass speed 25 persons/min.
    Input singal optional DC12V/dry contact/RS485
    railing-off against power off Yes
    Working enviroment temperature -30°C to +70 °C
    Working environments indoor, outdoor
    Relative humidity ≤95% coagulation free
    MCBF 2, 000, 000 cycles





    System function:



    1. Can open the turnstile by two input signals (signals can be input by access controller, buttonor other equipments)
    2. Direction guide function,   when the turnstile is ready to read card, the yellow light in the middle will turn one; after reading card and ready for passing, the upper blue light will turnon; if try to push the railing without permission, the red light will turn on
    3. Single direction or double direction optional
    4. Railing will be off when power off
    5. Counting function, if read the card for N times, N persons can pass before the railing close, N<=8(optional function)
    6. Voice prompt and display screen available (optional)
    7. External counter can be connected to count number of passed people (optional)
    8. RS485communication, PC command through serial port is allowed (optional)
    9. Alarming output for pushing the railing without permission(optional)



    TCP / IP / RFID Tripod Turnstile , Subway Stations Gate Gateways 0TCP / IP / RFID Tripod Turnstile , Subway Stations Gate Gateways 1

    TCP / IP / RFID Tripod Turnstile , Subway Stations Gate Gateways 2
