Security Swing Barrier Gate Corosion Resistant For Exhibition Hall

Security Swing Barrier Gate Corosion Resistant For Exhibition Hall

  • Security Swing Barrier Gate Corosion Resistant For Exhibition Hall
Security Swing Barrier Gate Corosion Resistant For Exhibition Hall
Product Details:
Place of Origin: Shenzhen, China
Brand Name: Fujica
Certification: CE, IS09001
Model Number: FJC-Z2368
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden box
Delivery Time: 10-25 days
Payment Terms: T/T
Supply Ability: 500sets/ month
Contact Now
Detailed Product Description
High Light:

vehicle barrier gate

,

security access gates

High Security Swing Barrier Gate With Light And Sound Alarm Function





Description:



Security Swing Barrier Gate  FJC-Z2368

Fujica intelligentized swing barrier is designed to control pedestrian entering or exiting restricted areas, use SS304 stainless steel for the whole case, and adopt anti-damp, dust-proofing, water-proofing international standard design, suitable for both indoors and outdoors. To be the best choice for the places like park, station, exhibition hall, gymnasium and so on, can fulfill the functions like entrance control, time attendance, pedestrian volume control and fare collection function etc.



Specification:



Power consumption

50W

Housing Size

1550*280*950mm

Housing material

1.5--2mm, 304# ,316#stainless steel, corosion resistant

Drive motor

DC brushless motor

Channel width

≤1150mm

Pass speed

15 persons or bike/min.

Panel open/close time

1.5s(adjustable)

IP protection

IP44

Input singal optional

DC12V/dry/contact/RS485/RS232/Remote)

railing-off against power off

Yes

Working enviroment temperature

minors 30°C to 70 °C

Working environments

indoor,outdoor

Relative humidity

≤95% coagulation free

MCBF

2,500,000 cycle





Functions:



1. Use SS304 stainless steel for the whole case, and adopt anti-damp, dust-proofing, water-proofing international standard design.
  2. Based on standardization design, use laser cropping and cutting, instant-formation Technology, mechanized wire drawing technology, modularized docking,convenient for work piece loading and unloading and also for maintenance, a high level of parts exchanging.
  3. Use 2mm stainless steel for the whole case, durable and reliable, free distortion.
  4. The panel of the barrier uses high-intensity material, logo on the panel can be customized.
  5. Buit in Infrared photocell (light curtain optional)  is used for anti-tail, anti-clamp, alarm and direction judgement function etc.
  6. High visibility lamp to indicate valid/invalid for pedestrain.
  7. International electrical interface, can be connected to the 3rd party read/write device, including: IC/EM reader, Bar-code paper ticket system,  fingerprint  reader, 3D face recognition device etc.
  8. The flaps will open automatically during power interruption.
  9. The operation speed of the panel can be adjusted on the control board according to the circumstance and passing speed.



Pictures &Certifications

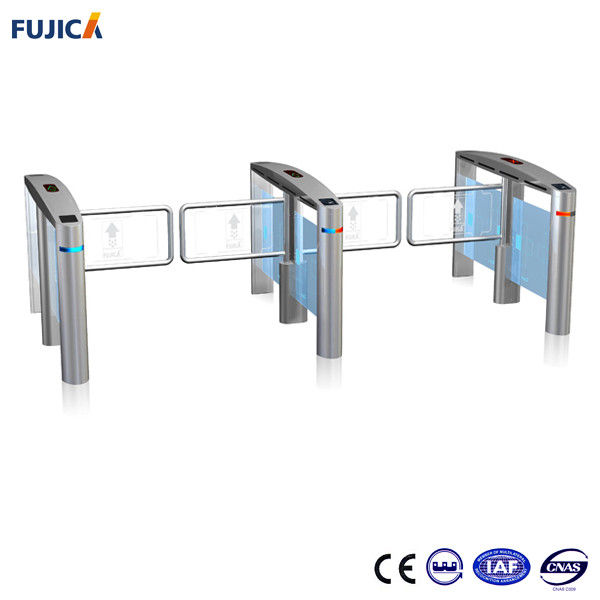

Security Swing Barrier Gate Corosion Resistant For Exhibition Hall 0

Security Swing Barrier Gate Corosion Resistant For Exhibition Hall 1

Security Swing Barrier Gate Corosion Resistant For Exhibition Hall 2

Security Swing Barrier Gate Corosion Resistant For Exhibition Hall 3

Security Swing Barrier Gate Corosion Resistant For Exhibition Hall 4
