360 Degree Wide Angle Car Reverse Parking System Around View Monitor For Audi Q5

Audi Q5 360 Degree Wide Angle Car Reverse Parking System Around View Monitor





HD CMOS 360 Degree around Bird view Parking System Around View Monitor / AVM Parking Guidance System With Car Vehicle Travelling Data Recorder Specific for Audi Q5



Product Details

Item	usage
Bird-view CPU Box	system core part
Front camera	180°wide angle HD night vision Camera at car front
Right camera	180°wide angle HD night vision Camera at car right side

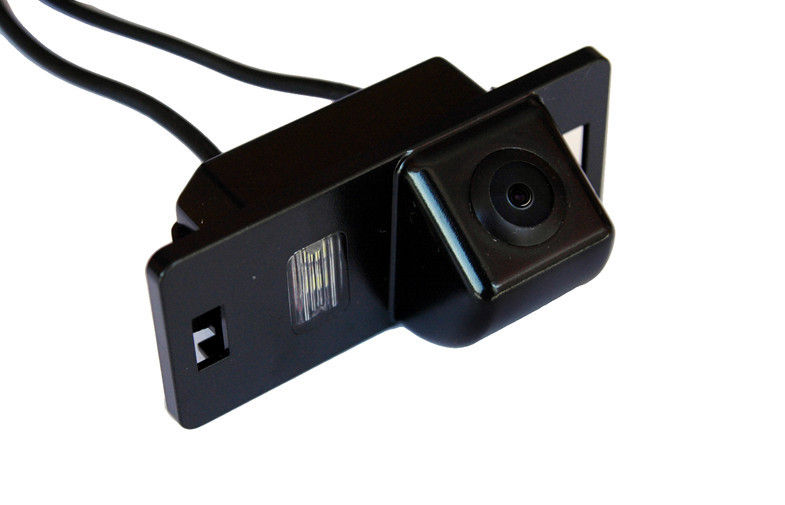

Rear camera	180°wide angle HD night vision Camera at car rear
Left camera	180°wide angle HD night vision Camera at car left side
Camera extension line	camera’s power supply changeover and extension connection
Controlling wire	wires to reverse line, left/right signal line, infrared line…

Description:

360 degree Bird-view Parking Assistant System is a system that through 4 pcs. extra wide angle cameras at front, rear, left and right side, collecting images around the car to form a 360°bird-view image by image software tool and splicing technology, then sending the images to the SZM display equipment.

Through this system, drivers can visually know car’s position and the around objects, and control parking the car easily, or reduce traffic accidents, like scratch, crash, or sink.





Applications:



This unit is specific for Audi Q5 car, a helpful tool for drivers to park cars.



We have many models for choice for specific brand cars, like for AUDI, VW, TOYOTA, HYUNDAI, KIA, and so on. If you have special requirement, welcome to send us enquiry!



Quick Details:

Type: 360 Degree Car Visual Security Parking System

Voltage: DC 12V

Model: Specific model for Audi Q5

Resolution: 720P

MOQ: 1 set

Place of origin: Guangzhou China.





Specifications:

Key Specifications/Special Features:

• System:

o    Left/right rear-view mirror cameras specially design for Toyota Crown

o    Capture the image of 4 different views with the use of 4 wide angle cameras (fish-eye angle) installed around the car, after image processing and stitching and synthesizes to a panoramic view image with 360° from top-down (bird view) surrounding the car, and the panoramic view timely transferred to the display screen of the control center

o    Equipped with DVR to record image from 4 cameras

• Clear 360° bird view panoramic display around automobiles
• Super wide horizontal viewing angle (180°)
• Auto image mosaic
• Video output to DVD or monitor, image show in screen with remote control can be:

o    Front view + bird view

o    Rear view + bird view

o    Left/right side view + bird view

• Video output: CVBS/NTSC
• Resolution of video output: 720p
• DVR memory: micro SD card up to 32GB or mobile hard disk via USB
• USB: USB2.0 for connection to mobile hard disk, for DVR recording, for software upgrading, and for view DVR recording
• On screen set up menu
• Working voltage: 8 to 30V DC
• Working current: <500mA at DC 12V
• Working temperature: -30 to 70°C
• Storage temperature: -40 to 85°C
• DVR features:

o    Your on-site witness, automatically record when ignition on

o    Shutdown time-lapse delay recording

o    Synchronous video replay and recording

o    Manually open/close recording quickly

o    Replay video at any time

o    Date/time shown on video

o    Loop recording

• Camera features:

o    Image sensor: CMOS high-definition sensor AR0130

o    Waterproof and weather-resistant housing for outdoor use

o    Good night vision performance, small noise and no color aberration

o    180° wide viewing angle

o    Picture elements: NTSC/PAL

o    Effective pixels: 720P

o    Horizontal resolution: 520TVL

o    Video output: 1.0Vp-p 75Ω

o    Low illumination: 0.5 lux

o    Gain control: automatic

o    White balance: automatic

o    Backlight compensation: automatic

o    Working temperature: -30 to 70°C

o    Storage temperature: -40 to 85°C

o    Waterproof level: IP68



Primary Competitive Advantages:

• Brand-name Parts
• Country of Origin
• Distributorships Offered
• Experienced Staff
• Form A
• Green Product
• Guarantee/Warranty
• Packaging
• Price
• Product Features
• Product Performance
• Prompt Delivery
• Quality Approvals
• Reputation
• Service
• Small Orders Accepted

Tag Words:

360 degree bird view parking system, around view monitor parking guidance system, AVM parking system, 360 degree bird view parking system with DVR function…..
