304 # Stainless Steel CE Approved Indoor/Outdoor Use Optical Flap Barrier FJC-Z1118

304 # Stainless Steel CE Approved Indoor/Outdoor Use Optical Flap Barrier FJC-Z1118

304 # Stainless Steel CE Approved Indoor/Outdoor Use Optical Flap Barrier FJC-Z1118

Product Details:

Place of Origin: CHINA
Brand Name: FUJICA
Certification: CE
Model Number: FJC-Z1118

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: WOODEN BOX
Delivery Time: 10-15 days
Payment Terms: T/T IN ADVANCE
Supply Ability: 500 SET/MONTH
Contact Now
Detailed Product Description

304 # Stainless Steel CE Approved Indoor/Outdoor Use Optical Flap Barrier FJC-Z1118



Description :

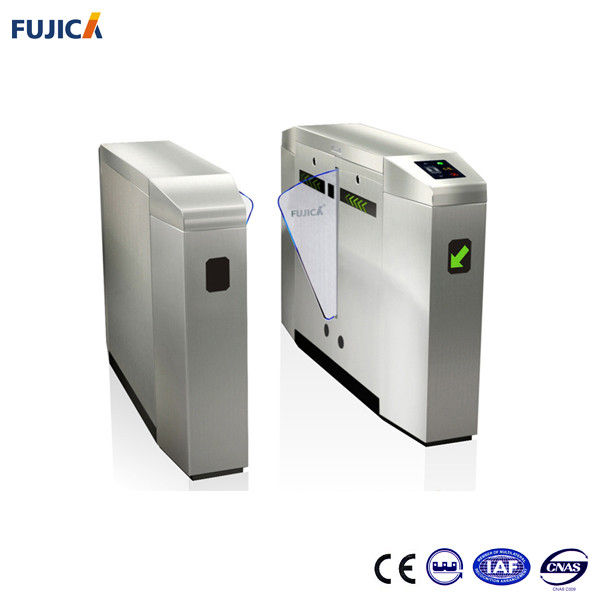

Fujica intelligentized flap barrier is designed to control pedestrian entering or exiting restricted areas, use SS304 stainless steel for the whole case, and adopt anti-damp, dust-proofing, water-proofing international standard design, suitable for both indoors and outdoors.

Flap barrier consists of cabinet, reader module, main control module, motor&driver module, infrared photocell, alarm device, limit switch and voice prompt device etc., can be used for the applications like apartment, factory, museum, station and ferry terminal etc.. Together with intelligent card reader/writer and management software, they are combined as intelligent flap barrier management system, can fulfill the functions like entrance control, time attendance, pedestrian volume control and tolling etc.

System function:

1. Smartcard reader compatible with a variety of card such as Mifare one and EM card.
2. Can be expanded to automatic identification system, realizing function of access control, pedestrian flow control, attendance check or fare collection.
3. Equipped with international standard electrical interface, can be easily integrated with other R/W device, also can be controlled and management through remote supervision computer
4. Equipped with a couple of infrared photocells, alarm at unauthorized entry or tailgating attempts,    together with anti-strike function to protect pedestrian
5. LED gate direction indicator that displays the current operational state to pedestrian. Green arrow for entry free, Red cross for passage locked.
6. Can open the turnstile by two input signals (signals can be input by access controller, button or other equipments)
7. Provide audible sound prompt and information display function.
8. The flaps will open automatically during power interruption, and recover N/C mode after power on(optional)
9. Counting function. Flap closes after passing N pedestrians continuously by swiping card N times correspondingly (N<=16) (optional)
10.Reversed passing alarm function, barrier will alarm if pedestrian pass from opposite direction after reading the card.(optional)

304 # Stainless Steel CE Approved Indoor/Outdoor Use Optical Flap Barrier FJC-Z1118

Technical parameters :



Power consumption 50 / 100 W
Housing Size 1400*280*950 mm
Housing material 1.5--2 mm, 304# stainless steel, corosion resistant
Drive motor DC brushless motor
Channel width 500--550 mm
Pass speed 40 persons/min.
Input singal optional DC12V dry contact/RS485
railing-off against power off Optional
Working enviroment temperature -30°C to +70 °C
Working environments indoor, outdoor
Relative humidity ≤95% coagulation free
MCBF 3, 000, 000 cycles
