|Place of Origin:||CHINA|
|Brand Name:||Asian China Security Product supplier OEM/ODM|
|Certification:||Security access control products supplier|
|Minimum Order Quantity:||Security automation system products|
|Price:||Security equipment factory price|
|Packaging Details:||Standard export package|

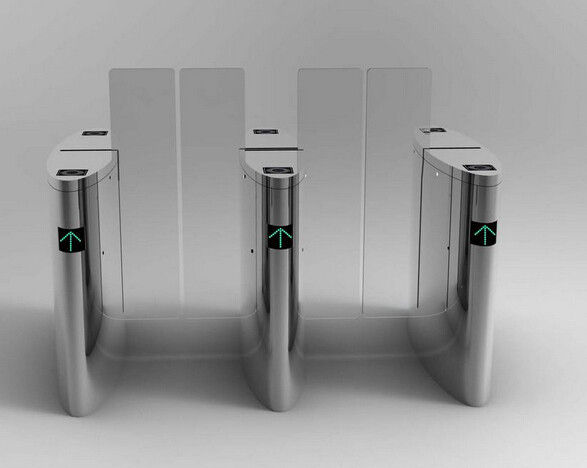

Full Height Translation Gate Turnstile For Access Control
1. Top quality.Provide 1 year warranty
2. CE, certificate.
3. Automatic Flap Gate Turnstile
4. RS485 Interface with Flap Gate Turnstile
5. All list price just for EXW, not including any shipping fee
6. Different style with different size.
1.Reliable and durable, low noise and stable operation, adapt to varied situation,;
2. Standard electrical interface, various card reader acceptal to our wing gate & can be (remote) controlled by computer, single/Double Directional Optional which can be controlled by both ways or single way( can be mechanically set by the buttons on built-in control panel) ;
3. Flap Gate Turnstile open automatically when power off to the request of fire protection, and automatically closes when power on;
4. The Flap Gate Turnstile installed Infrared sensor interfaces, could be expanded to Infrared testing function.
5. Breakdown Self-checking and alarm indication, easy for maintenance and using;
6. The Flap Gate Turnstile arm will automatically locked until opening signal is received, motor will stop working in case of the wing encounter of obstruct;;
7. Anti illegal entering alarm: Light and sound alarm is generated when the illegal invasion and the tail followed;
8. Automatically reset function: It will automatically lock if the pedestrian hasn't pass through the channel in the pre-set time after the opening. The passing time is adjustable;
9. Passage in both directions electronically controlled. The pedestrian retractable barrier is available in Normally Open (N/O) or normally Closed (N/C) mode. In N/O the speed gate provides an always open walkway in rest position and will only close at unauthorized entry or tailgating attempts;
10. Driving Mechanism:The wings are moved by mechanical arms. The arms are rotated by a torque shaft connected to the drive unit. The drive unit is a DC motor working in conjunction with a bi-directional encoder. A microprocessor control system guarantees the precise movement and positioning of the wings;
11. Method of Operation: ON receiving a signal from the access control system, or push button, the Wing Gate open. If an unauthorized person tries to tailgate or attempts to enter from the opposite direction, the system detects the unauthorized passage and activates the in-built alarm system;
1. Flap Gate Turnstile is designed to control pedestrian entering or exiting restricted areas, personal surveillance is recommended as the barrier can be breached. The ultra quiet retractable barriers allow for rapid pedestrian movement through the lane while the advanced optical sensors prevent "tailgating" and crawling by those without proper credentials.
2.Flap Gate Turnstile is available with two wing types, that are either a composition of a 20mm acrylic glass. With the use of soft wings the risk of injury or damage is minimized, even in the event of a visitor running into the closed retractable barrier. Furthermore, a significant increase of the opening and closing time can be achieved, resulting in a much better tail-gating behavior to reach to the customer's advantage.
