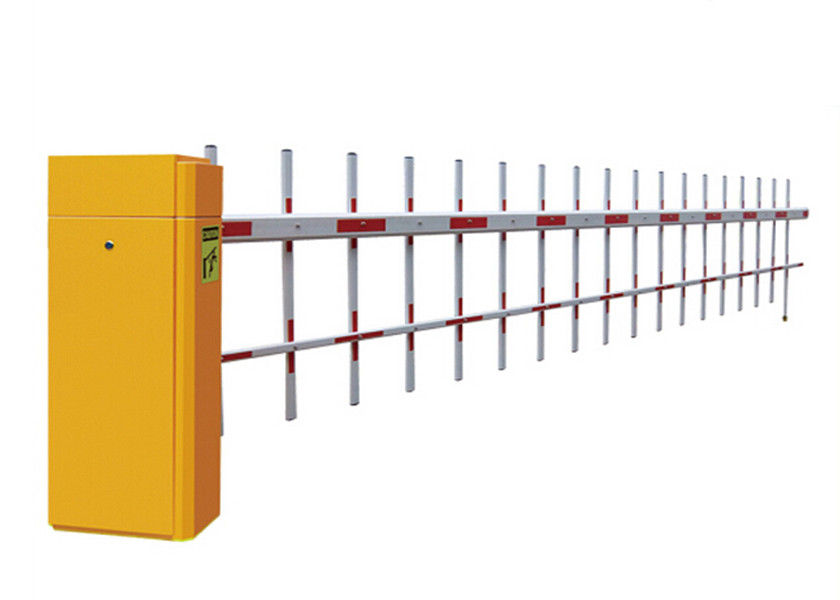

AC 220 Intelligent Automatic Security Fence Barrier Gate For Parking Lot

AC 220 Intelligent Automatic Security Fence Barrier Gate For Parking Lot

    • AC 220 Intelligent Automatic Security Fence Barrier Gate For Parking Lot
    • AC 220 Intelligent Automatic Security Fence Barrier Gate For Parking Lot
  • AC 220 Intelligent Automatic Security Fence Barrier Gate For Parking Lot

    Product Details:

    Place of Origin: China
    Brand Name: TENET
    Certification: CE FCC ROHS
    Model Number: TAB - 312

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: USD 338 per unit
    Packaging Details: Artificial wooden box
    Delivery Time: 1 - 5 days after receiption
    Payment Terms: T/T, Western Union
    Supply Ability: 9999 unit per month
    Contact Now
    Detailed Product Description
    Product Name: High Quality Automatic Boom Barrier Gate Arm Length: Max.6m
    Power Supply: AC 220±10%,50/60HZ,Max.0.5A AC 220V Toque Motor: 100% Duty Cycle
    Motor Power: 80W Certificate: CE FCC ROHS
    Warranty: 2 Year Shape Specification: 338*275*1030mm
    Housing Color: Yellow,Red,Blue,Orange,White Optional Open / Close Time: 1.5 / 2 / 3 / 4 / 6 Sec
    Product Type: Automatic Fence Barrier Gate

    Intelligent automatic security fence barrier gate for parking access control



      TENET Automatic fence barrier gate provides a secure and convenient solution of stopping unauthorized vehicle or giving access to authorized vehicle for parking lot, as well as hotel, exhibition center, office building ,hospitals,airports, shopping mall etc..



      The general structure of this barrier gate is made up by the movement, chassis, barrier lever, main controller and so on major components. There into, the movement is comprised by the integration of motor and reducer, connecting rod transmission mechanism, balance spring, optical limit switches, mechanical limit switches and other components.


    Description

    1) Open/close time: 0.8 / 1.5 / 2 / 3 / 4 sec. optional

    2) Max. 6m straight arm with rubber bar

        Max. 4.5 m folding arm with rubber bar

        Max. 4m fence arm with rubber bar

    3)  Inclusive of arm and "push button" which opens/closes barrier

    4)  Exclusive of LED light bar,remoter, boom bracket and anti-collision mechanism: need to buy extrally

    5)  Optional housing color: yellow (default),orange, white, red and blue

    6)  Optional boom arm direction: leftward or rightward



    Main functions and features​Features

    Specially designed rod drive mechanism, the brake lever slow start, fast run, slow stop and remove the brake lever to bring in the operation of the jitter.
    Drive mechanism design of intelligent thermal protection device, in frequent use, when the motor temperature to rise to 140 °, the system automatically stop working. When the motor temperature down to 80 °, the system also automatically return to work.
    The machine core is using optical and mechanical limit switch limit switch double protection
     the main controller has a sense (vehicle detector), infrared interface device for radio

    0.8 second fastest action and 100% duty cycle operation with 5 million MTBF

    Heavy-duty and simple-design housing
    System automatically self-checks operation status and reports errors
    Sine lever drive mechanism ensures smooth landing of boom without shaking
    Anti-collision protects boom arm and vehicle (optional)
    Safety--- Anti-hit by pressure resistance bounce
    Safety--- Anti-hit by Loop Detector (Optional)
    Safety--- Anti-hit by IR photocell (Optional)
    Safety--- Anti-hit by “Opening Priority”
    Closing Priority
    Automatically close after the given time
    Automatically close or open by loop detector (Optional)
    Manually control in case of no power
    Boom open up fully or close down in case of power failure
    Anti-condensation in cold climate
    Transparent plastic covers on Control Board



    Installation

    1.The choice of installation location

    Barrier according to customer requirements to determine the installation location, should note the following requirements;

    a)        Installation location should be such that barrier lever in the vertical and horizontal angle of operation.

    b)        If you do install the base mounting surface must be firmly fixed to the box, so that stable operation of barrier lever.

    c)        If you do the installed base, it is recommended to do with the quick-drying cement, installed base of not less than 800 * 800 * 150MM, the mounting surface to level.

    2. Mounting holes to determine

    a)   Mounting holes in the mounting surface can be determined by the following size.

               AC 220 Intelligent Automatic Security Fence Barrier Gate For Parking Lot

                  Mounting holes dimensions

    b)   Mounting holes of the cabinet to determine the barrier can also be placed on the mounting surface, mounting holes through the cabinet to mark the mounting surface.

    3. Laying of power lines

      The power cord from the power supply to the barrier at the laying of the cabinets. Power cord specifications for RVV3 × 1.5mm ² or above.

    4. Cabinet installation

    1. 14MM impact drill with a diameter mounting holes on the drilling depth of about 100MM.

    2. 12MM in diameter expansion bolts into the mounting hole, tighten the nut, the nut and exit.

    3. The barrier on the mounting holes on the box, while tightening the nut, while adjusting the vertical barrier box, so that making the  box vertical, at the end firmly fixed box.

    4. The fixed barrier arm

    The barrier arm and barrier lever splint aligned holes, diameter 12MM bolt penetration, and then fixed to the barrier lever fixed barrier cabinet board.

    5. Connect the power supply

    After the above steps to connect power to the device. Access to the identity of the controller on the AC220V power.



    Quick Brief of TENET

    • One of leading manufacturer of Vehicle Access Control System(Parking Management System, Barrier Gate, & Parking Lock) in China with 15 years.
    • Develop both hardware and software to make simple operation, customized solution available.
    • Worldwide reference: Australia, UK, Chile, Mexico, Peru, Sweden, Ukraine, Southeast Asia, DUBAI,Thailand, India, Mumbai Nirmal , Guatemala ,Canada, Seychelles , Rwanda, Iran, Poland, HK, Macro, Chinese mainland etc. ,also ready for you now.
    • Warranty: 1 year labor and parts?Certificates: CE marking

    • Lead time : 5 working days after deposite received; contact our sales for lead time of customized orders and bulky orders
