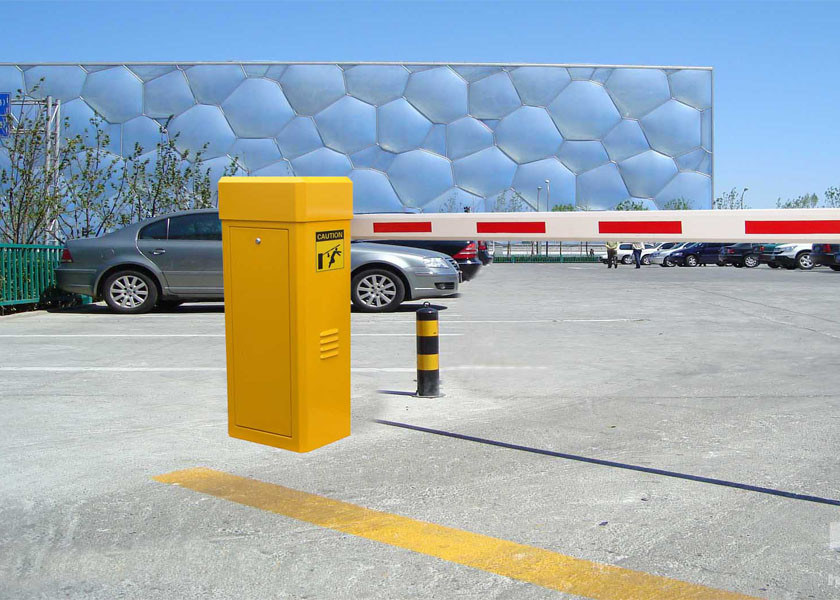

Yellow / White 80W Automatic Boom Barrier Gate For Parking / Traffic Access Control

Yellow / White 80W Automatic Boom Barrier Gate For Parking / Traffic Access Control

  • Yellow / White 80W Automatic Boom Barrier Gate For Parking / Traffic Access Control
  • Yellow / White 80W Automatic Boom Barrier Gate For Parking / Traffic Access Control
Yellow / White 80W Automatic Boom Barrier Gate For Parking / Traffic Access Control
Product Details:
Place of Origin: China
Brand Name: TENET
Certification: CE FCC ROHS
Model Number: TAB - 320Y
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: USD 320 per unit
Packaging Details: Artificial wooden box
Delivery Time: 1 - 5 days after receiption
Payment Terms: T/T, Western Union
Supply Ability: 9999 unit per month
Contact Now
Detailed Product Description
Product Name: High Quality Automatic Boom Barrier Gate Housing Color: Yellow,Red,Blue,Orange,White Optional
Arm Length: Max.6m Open / Close Time: 0.8 / 1.5 / 2 / 3 / 4 / 6 Sec
Power Supply: AC 220±10%,50/60HZ,Max.0.5A AC 220V Toque Motor: 100% Duty Cycle
Motor Power: 80W Certificate: CE FCC ROHS
Warranty: 2 Year Shape Specification: 338*275*1030mm
High Light:

arm barrier gate

,

Automatic barrier gate

High quality automatic boom barrier gate for parking / traffic access control



  Automatic boom barrier gate provides a secure and convenient solution of stopping unauthorized vehicle or giving access to authorized vehicle for parking lot, as well as hotel, exhibition center, office building ,hospitals,airports, shopping mall etc.. Especially for highway toll gate.





  The general structure of this barrier gate is made up by the movement, chassis, barrier lever, main controller and so on major components. There into, the movement is comprised by the integration of motor and reducer, connecting rod transmission mechanism, balance spring, optical limit switches, mechanical limit switches and other components.


Description

1) Open/close time: 0.8 / 1.5 / 2 / 3 / 4 sec. optional

2) Max. 6m straight arm with rubber bar

    Max. 4.5 m folding arm with rubber bar

    Max. 4m fence arm with rubber bar

3)  Inclusive of arm and "push button" which opens/closes barrier

4)  Exclusive of LED light bar,remoter, boom bracket and anti-collision mechanism: need to buy extrally

5)  Optional housing color: yellow (default),orange, white, red and blue

6)  Optional boom arm direction: leftward or rightward



Features

0.8 second fastest action and 100% duty cycle operation with 5 million MTBF

Heavy-duty and simple-design housing
System automatically self-checks operation status and reports errors
Sine lever drive mechanism ensures smooth landing of boom without shaking
Anti-collision protects boom arm and vehicle (optional)
Safety--- Anti-hit by pressure resistance bounce
Safety--- Anti-hit by Loop Detector (Optional)
Safety--- Anti-hit by IR photocell (Optional)
Safety--- Anti-hit by “Opening Priority”
Closing Priority
Automatically close after the given time
Automatically close or open by loop detector (Optional)
Manually control in case of no power
Boom open up fully or close down in case of power failure
Anti-condensation in cold climate
Transparent plastic covers on Control Board





Products Main Technical Parameters

Two Columns Barrier Pole: The hole central distance between two vertical member is 250mm; the central distance between the main cross rod and sub cross rod is 445mm, and the length of vertical member is 850mm. The height from the bottom of vertical member to ground is 140mm. The size of the main cross rod is: 100*45*1.0mm; the size of sub rod and vertical member is 38*25*0.8mm.

Yellow / White 80W Automatic Boom Barrier Gate For Parking / Traffic Access Control 0



Quick Brief of TENET

  • One of leading manufacturer of Vehicle Access Control System(Parking Management System, Barrier Gate, & Parking Lock) in China with 15 years.
  • Develop both hardware and software to make simple operation, customized solution available.
  • Worldwide reference: Australia, UK, Chile, Mexico, Peru, Sweden, Ukraine, Southeast Asia, DUBAI,Thailand, India, Mumbai Nirmal , Guatemala ,Canada, Seychelles , Rwanda, Iran, Poland, HK, Macro, Chinese mainland etc. ,also ready for you now.
  • Warranty: 1 year labor and parts?Certificates: CE marking

  • Lead time : 5 working days after deposite received; contact our sales for lead time of customized orders and bulky orders
