Waterproof, sunscreen, anti-temperature, anti-cold.
Access Prompt function:Red and green light prompt the passing information.
Can set a one-way or two-way control
Compatible IC, ID, magnetic card, bar code card, and other control equipment.
Small button into the main control panel ,can be set state of equipment.
Anti-pinch, anti bumps function
Scour protection function ,when the gate signal is not received, arms keep closed
With automatic reset function,if does not pass in the set time,turnstile will get back
Normally open or closed can be freely adjusted
can be used with a variety of reading devices, work when it receive relay switch signal
Indoor Intelligent Swing Barrier Gate , Drop Arm Turnstile Security Systems
Description:
Fujica intelligentized swing barrier is designed to control pedestrian entering or exiting restricted areas, use SS304 stainless steel for the whole case, and adopt anti-damp, dust-proofing, water-proofing international standard design, suitable for both indoors and outdoors. To be the best choice for the places like park, station, exhibition hall, gymnasium and so on, can fulfill the functions like entrance control, time attendance, pedestrian volume control and fare collection function etc.
Technical parameters:
Power consumption | 50 / 100 W |
Housing Size | 1550*280*950 mm |
Housing material | 1.5-2 mm, 304# stainless steel, corosion resistant |
Drive motor | DC brushless motor |
Channel width | ≤1150mm |
Pass speed | 15 persons or bike/min. |
Panel open/close time | 1.5s(adjustable) |
Input singal optional | DC12V dry contact/RS485 |
railing-off against power off | Optional |
Working enviroment temperature | -30°C to +70 °C |
Working environments | indoor, outdoor |
Relative humidity | ≤95% coagulation free |
MCBF | 1, 000, 000 cycles |
System function:
1. Use SS304 stainless steel for the whole case, and adopt anti-damp, dust-proofing, water-proofing international standard design.
2. Based on standardization design, use laser cropping and cutting, instant-formation Technology, mechanized wire drawing technology, modularized docking, convenient for work piece loading and unloading and also for maintenance, a high level of parts exchanging.
3. Use 2mm stainless steel for the whole case, durable and reliable, free distortion.
4. The panel of the barrier uses high-intensity material, logo on the panel can be customized.
5. Buit in Infrared photocell (light curtain optional) is used for anti-tail, anti-clamp, alarm and direction judgement function etc.
6. High visibility lamp to indicate valid/invalid for pedestrain.
7. International electrical interface, can be connected to the 3rd party read/write device, including: Mifare/EM reader, Bar-code paper ticket system, fingerprint reader, 3D face recognition device etc.
8. The flaps will open automatically during power interruption.
9. The operation speed of the panel can be adjusted on the control board according to the circumstance and passing speed.

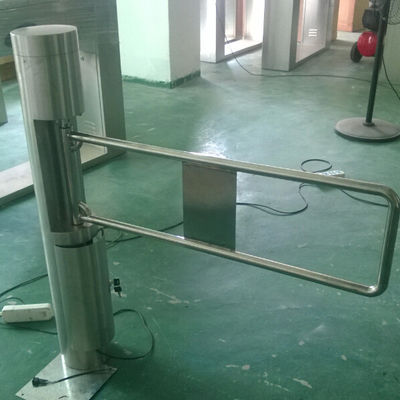

Fully atuomatic vertical Single swing barrier gate with 600mm - 900mm channel width
Quick Details
Product Descriptions:
Technical Parameters
Material | 304/316 stainless seel (optional) |
Fishing | Brushed surface (standard) / Polishing surface |
Dimension | 420*330*980mm |
Swing arm length | 600 - 900mm |
Drive motor | Brushless DC motor (24V) |
Power supply | AC220 (110) ± 10%V,50Hz |
Working life | 3,000,000 times |
Communication Interface | RS485 / RS232,Ethernet |
Transit Speed | 20 - 35 passage / minute |
Work Environment | Indoor / Outdoor (Shelter) |
Use Place | Station,park,apartment,school,factory,bank,building |
Customized Features:
Our service
|
1. One -stop security solution provider, can help you save time and costs. |
2. Good quality with competitive price, offer OEM and ODM service. |
3. Professional technical supports and great after-sales service. |
4. Custom design shape and logo,for large amount, custom logo available for free. |
5. Fastest delivery and safe shipping way. |
6. Warranty: One year Warranty, from the date of delivery, a lifetime technical support. |
7. Feedback quickly: 24 hours online service and reply your inquiry within 8 hours. |
8. We could provide Online supports for you when need supports on testing. |
Payment Terms |
TT, Western Union, Cash |
Shipping Way: |
1. Fast way: by express courier,door to door, such as DHL, FedEx, UPS, TNT, EMS. by air, to airport |
2. Cheap way: by sea shipment. |
Indoor Time Attendance Access Control System Speedgate Turnstile For Building
Quick Details
Product Descriptions:
Technical Parameters
Material | 304/316 stainless seel (optional) |
Fishing | Brushed surface (standard) / Polishing surface |
Dimension | 1600*150*1000mm |
Occasions | Bank,government,railway,airport |
Channel width | 600 - 900mm |
Drive motor | Brushless DC motor (24V) |
Power supply | AC220 (110) ± 10%V,50Hz |
Working life | 3,000,000 times |
Communication Interface | RS485 / RS232,Ethernet |
Transit Speed | 30 - 40 passage / minute |
Work Environment | Indoor / Outdoor (Shelter) |
Use Place | Station,park,apartment,school,factory,bank,building |
Customized Features:
Our service
|
1. One -stop security solution provider, can help you save time and costs. |
2. Good quality with competitive price, offer OEM and ODM service. |
3. Professional technical supports and great after-sales service. |
4. Custom design shape and logo,for large amount, custom logo available for free. |
5. Fastest delivery and safe shipping way. |
6. Warranty: One year Warranty, from the date of delivery, a lifetime technical support. |
7. Feedback quickly: 24 hours online service and reply your inquiry within 8 hours. |
8. We could provide Online supports for you when need supports on testing. |
Payment Terms |
TT, Western Union, Cash |
Shipping Way: |
1. Fast way: by express courier,door to door, such as DHL, FedEx, UPS, TNT, EMS. by air, to airport |
2. Cheap way: by sea shipment. |
Pedestrian Building Entrance Automatic Barrier Gates 550mm - 850mm Channel Width
Quick Details
Product Descriptions:
Technical Parameters
Material | 304/316 stainless seel (optional) |
Fishing | Mirror Surface |
Dimension | 1600*150*1000mm |
Occasions | Bank,government,railway,airport |
Channel width | 600 - 900mm |
Drive motor | Brushless DC motor (24V) |
Power supply | AC220 (110) ± 10%V,50Hz |
Working life | 3,000,000 times |
Communication Interface | RS485 / RS232,Ethernet |
Transit Speed | 30 - 40 passage / minute |
Work Environment | Indoor / Outdoor (Shelter) |
Use Place | Station,park,apartment,school,factory,bank,building |
Customized Features:
Our service
|
1. One -stop security solution provider, can help you save time and costs. |
2. Good quality with competitive price, offer OEM and ODM service. |
3. Professional technical supports and great after-sales service. |
4. Custom design shape and logo,for large amount, custom logo available for free. |
5. Fastest delivery and safe shipping way. |
6. Warranty: One year Warranty, from the date of delivery, a lifetime technical support. |
7. Feedback quickly: 24 hours online service and reply your inquiry within 8 hours. |
8. We could provide Online supports for you when need supports on testing. |
Payment Terms |
TT, Western Union, Cash |
Shipping Way: |
1. Fast way: by express courier,door to door, such as DHL, FedEx, UPS, TNT, EMS. by air, to airport |
2. Cheap way: by sea shipment. |
Residential Security Swing Barrier Gate , Drop Arm Turnstile Entry Systems
Description:
Fujica intelligentized swing barrier is designed to control pedestrian entering or exiting restricted areas, use SS304 stainless steel for the whole case, and adopt anti-damp, dust-proofing, water-proofing international standard design, suitable for both indoors and outdoors. To be the best choice for the places like park, station, exhibition hall, gymnasium and so on, can fulfill the functions like entrance control, time attendance, pedestrian volume control and fare collection function etc.
Technical parameters:
Power consumption | 50 / 100W |
Housing Size | 1550*280*950 mm |
Housing material | 1.5-2 mm, 304# stainless steel, corosion resistant |
Drive motor | DC brushless motor |
Channel width | ≤1150mm |
Pass speed | 25 persons or bikes/min |
Panel open/close time | 1.5s(adjustable) |
Input singal optional | DC12V dry contact/RS485 |
railing-off against power off | Optional |
Working enviroment temperature | -30°C to +70 °C |
Working environments | indoor, outdoor |
Relative humidity | ≤95% coagulation free |
MCBF | 1, 000, 000 cycles |
System function:
1. Use SS304 stainless steel for the whole case, and adopt anti-damp, dust-proofing, water-proofing international standard design.
2. Based on standardization design, use laser cropping and cutting, instant-formation Technology, mechanized wire drawing technology, modularized docking, convenient for work piece loading and unloading and also for maintenance, a high level of parts exchanging.
3. Use 2mm stainless steel for the whole case, durable and reliable, free distortion.
4. The panel of the barrier uses high-intensity material, logo on the panel can be customized.
5. Buit in Infrared photocell (light curtain optional) is used for anti-tail, anti-clamp, alarm and direction judgement function etc.
6. High visibility lamp to indicate valid/invalid for pedestrain.
7. International electrical interface, can be connected to the 3rd party read/write device, including: Mifare/EM reader, Bar-code paper ticket system, fingerprint reader, 3D face recognition device etc.
8. The flaps will open automatically during power interruption.
9. The operation speed of the panel can be adjusted on the control board according to the circumstance and passing speed.
Description
manully swing barrier systems RS 316-3 provide effective means for pedestrian flow control at
entrances of production facilities, administrative buildings, company offices, schools, university campuses,
stadiums,leisure and fitness facilities, amusement parks and zoos, shopping outlets.
Quick Details | |
Place of Origin | Guangdong, China (Mainland) |
Brand Name | RS Security |
Model Number | RS 316-3 |
Material | 304 stainless steel |
Thickness of steel | 1.5mm |
Dimension | L1030x H890mm |
Arm length | ≤1500mm |
Power supply | AC 220V |
Transit speed | 50 persons/min |
Operating environment | indoor/outdoor |
Operating temperature | -30~60 |
Operating humidity | lower than 95% |
Feature
Architectural esthetic design, high quality brushing 304SS, stainless steel frame.
Smooth operation, reliable performance , low noisy Fraud Detection through sophisticated and proven
algorithm.
Top quality infrared sensor and logic control system ensure users' safety
Flexible extendibility. Operated by access control system and manual control both are available
Easy installation and low cost maintenance due to modular design
