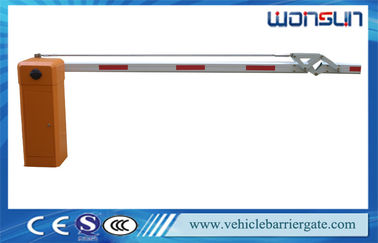

180 Degree Folding Arm Automatic Boom Barrier for Hospital , Railway

180 Degree Folding Arm Automatic Boom Barrier for Hospital , Railway

  • 180 Degree Folding Arm Automatic Boom Barrier for Hospital , Railway
180 Degree Folding Arm Automatic Boom Barrier for Hospital , Railway
Product Details:
Place of Origin: China
Brand Name: WONSUN
Certification: CE, ISO, SGS
Model Number: WST-1151
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: negotiation
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Contact Now
Detailed Product Description
Housing Dimension: 320 * 280 * 935 Mm Arm Type: Straight Arm, Folding Arm, Fence Arm, Optional
Housing Material: 2mm Cold Roller Steel Plate Open / Close Time: 1s, 1.8s, 3s, 6s
Power Supply: AC 220V / 110V Max Boom Length: 6m
Highlight:

Parking Barrier Gate

Straight Arm Automatic Boom Barrier for Hospital , Railway


Quick Detail:

Name: Automatic boom barrier
Application: Toll system
Speed:1s,3s,6s
Feature: Auto-closing
Rated Power:80W
Net Weight: 60KG
Voltage:AC220V, AC110V

Model Selection and Differences


Model

Boom Shape

Max Boom Length

Speed

WST11561

180 degree, Articulated boom

5m

6 seconds

WST11562

180 degree, Articulated boom

3m

3 seconds








Applications:

Fast Barrier Gate adopts special machine core, swing away boom holder and boom. This barrier gate runs in high speed but stably. The running time is 1 second. It can be used for highway toll, parking system, factory gate, and so on.

Specifications



ModelWST-11561
Working Temperature-35℃~+75℃
Voltage220V±10%, 110V±10%, 50/60HZ
Rated power80W
Relative humidity≤90%
Remote control distance≥30m
Max boom length8meters
Speed1S,3s,6s
Net weight60kgs


Functions & Features:

1. Manual release device to operate the barrier when power failure
2. Barrier motor with die-casting aluminum alloy is high-hermetic and easy for heat dissipation
3. Motor cooling fan to avoid the over-heating possibility
4. Reversing on obstacle
5. Auto closing realization through menu setting on the control panel
6. The barrier works well with infrared photocells, loop detectors, card readers, ticket dispensers, manual switch (wire control), and traffic light
7. RS485 Communication Module is compatible


Applications:

Automatic boom barrier adopts special machine core, swing away boom holder and boom. This barrier gate runs in high speed but stably. The running time is 1 second. It can be used for highway toll, parking system, factory gate, and so on.

With WONSUN, your job gets easier.
Because we don’t just create “good” products, that work pretty well.Our thinking is beyond the short-term.We are conceiving, designing and creating high-tech solutions that are as advanced and effective as they are reliable and long-lasting.
Because we want to provide tools and services that truly are innovative,that will improve your performance and enhance your skills;and that will make your business easier, increasing its profitability.
Because our focus is on Quality with a capital Q.We just won’t settle for less.


Our Car Park Barriers Packing List


Packing list
NameSpecificationsQuantityRemarks
Machine coreGood in working1Main part
Barrier armStraight, folding or fence arm1Optional
Boom press board 1Fixing the boom
Self-tapoing screwST4*16Fixing the boom
Self-tapoing screwst3*104Fixing the boom
Supporting pole 1Fupporting the boom
Expanion boltM16*1504Fixing the case
Hexagonal Inner ScrewM8*354fixing the case
Clutch key 1clutch device
Case Key 2for case and cover locking
Balance springAccording to length of barrier arm1for sapre usage
Remote emitterless than 30m is available1For remote control
Remote conrol handlesless than 30m is available2For remote control
Instructionin English1For reference
RS485 interface 1Optional
Disc 1Optional
Communication Mould 1Optional
Cover head 13 years without fading
Expanion nutM84Fixing the supporting pole
