Place of Origin: | China(mainland) |
Brand Name: | RS Security |
Certification: | ISO,FCC,SGS,RoHS,CE |
Model Number: | RS 218 |
Minimum Order Quantity: | 1pcs |
---|---|
Price: | 1200USD |
Packaging Details: | wooden box |
Delivery Time: | 3-8workdays |
Payment Terms: | TT |
Supply Ability: | 3000pcs/month |

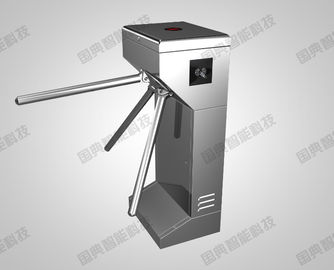

Series: | Tripod Turnstile | Product Name: | Vertical Tripod Turnstile |
---|---|---|---|
Modal: | RS 218 | Brand: | RS Security |
Material: | 304 Stainless Steel | Size: | 420*330*980mm |
Highlight: | tripod turnstile gate |
Features
Optional features
Counter:
Voice speech
Remote control
Applications:
High security places, factory, fitness club, prison, hotel lobby, school, port, exhibition hall.
Traffic type
Specifications:
item | peremeters |
size | 1200*280*980mm |
work voltage | AC220V±10% 50HZ±10% |
Core | DC24V solenoid valve |
Arm length | 500-550mm |
Max bearing force | 80kg |
Max lane width | 550mm |
Rotation direction for arm | left or right, or bi-directional |
Card reading window | standard or customized |
Work environment | indoor or outdoor, 10℃~70℃,relative humidity:≤90%, no condensation |
Barrier open time | 0.2s |
Transit speed | 30 people/minute |
Emergency | auto drop for arm |
Normal work life | 3,000,000 times |
Communication interface | RS 485, distance ≤1200m |
Input interface | relay switch signal, 12V level signal or 12V pulse signal,pulse width>100ms,drive current>10Ma |
Competitive Advantage:
