Single Turnstile Entry Systems

Single Turnstile Entry Systems

  • Single Turnstile Entry Systems
  • Single Turnstile Entry Systems
Single Turnstile Entry Systems
Product Details:
Place of Origin: China
Brand Name: TDZ
Certification: CE
Model Number: TDZ-B124
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 500 -1000 / Piece
Packaging Details: paper carton and wooden cases
Delivery Time: 3-4 working days
Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability: 200 pieces / month
Contact Now
Detailed Product Description
Material: 304 / 316 Stainless Steel Thickness: 1.5mm
Dimension: ¢168*1050mm Package Size: 1400*320*1060mm
Occasions: Supermarket , Shopping Mall , Airport Channel Width: 600 -900 Mm
Machine Core: Fully Automatic Motor: Brushless DC Motor (24V)
Power Supply: AC 220 ± 10%V,50Hz Normal Life: 3,000,000 Times
Temperature: -10℃ - 50℃ Work Environment: Indoor And Outdoor
MOQ: 1 Piece Package: Paper Carton And Wooden Case
Leading Time: 4 - 5 Working Days For Sample Production Payment Terms: T/T Or West Union
Model: TDZ-B112
High Light:

Swing Turnstile


Entrance Turnstiles

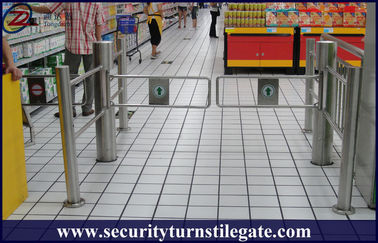

One way supermarket turnstile / entrance and exit gate

Quick Details

  • 316 stainless steel single way pillar swing turnstile with guardrail  for supermarket
  • Channel width:600-900mm
  • Arm transmission angle : 90 degree or 180 degree
  • manual / full automatic are optional

Product Descriptions:

  1. Waterproof, sunscreen, anti-temperature, anti-cold.​​
  2. The single way swing turnstile is often used in supermarket
  3. Can set a one-way or two-way control for different situations
  4. Compatible IC, ID, magnetic card, bar code card, and other control equipment.
  5. Small button into the main control panel ,can be set state of equipment.
  6. Anti-pinch, anti bumps function
  7.  Scour protection function ,when the gate signal is not received, arms keep closed
  8. With automatic reset function,if does not pass in the set time,turnstile will get back
  9. Normally open or closed can be freely adjusted
  10. can be used with a variety of reading devices, work when it receive relay switch signal
  11. Fire emergency function,after power,arms will be automaticlly opened.When on power,will be closed automatically




Technical Parameters


Material 304/316 stainless seel (optional)
Fishing Brushed surface (standard) / Polishing surface
Dimension  ¢168*1050mm
Channel width 600 - 900mm
Drive motor Brushless DC motor (24V)
Power supply AC220 (110) ± 10%V,50Hz
Working life 3,000,000 times
Communication Interface RS485 / RS232,Ethernet
Transit Speed 30 - 40  passage / minute
Work Environment Indoor / Outdoor (Shelter)
Use Place Station,park,apartment,school,factory,bank,building


Customized Features:


  1. Alternative Materials, Finishes and Custom Design
  2. Access Control System Integration
  3. Ticket System Integration
  4. Camera System Integration
  5. Thermostat System Integration
  6. Remote-Controlled Button
  7. Usage Counters
  8. Waterproof and Dustproof Design: IP53 for mechanical module, IP65 for electric module
  9. SDK and technical support will be provided for Secondary development of software
