Place of Origin: | China |
Brand Name: | TDZ |
Certification: | CE |
Model Number: | TDZ-S318 |
Minimum Order Quantity: | 1 piece |
---|---|
Price: | USD 500 -1000 / Piece |
Packaging Details: | paper carton and wooden cases |
Payment Terms: | T/T, Western Union, MoneyGram, L/C, D/A, D/P |
Supply Ability: | 200 pieces / month |
Material: | 304 / 316 Stainless Steel | Dimension: | 1200*280*1000mm |
---|---|---|---|
Package Size: | 1250*330*1050mm | Rod Length: | 510mm |
Normal Life: | 3,000,000 Times | Temperature: | -10℃ - 50℃ |
Work Environment: | Indoor And Outdoor | Package: | Paper Carton And Wooden Case |
Highlight: | Controlled Access Turnstiles |

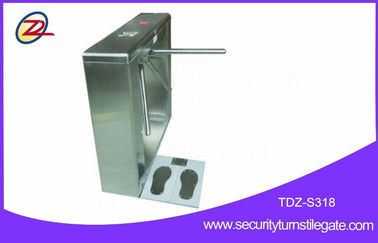

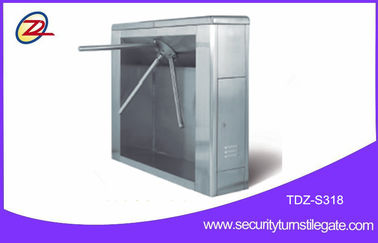

Waist Height Esd Tripod Turnstile Gate / Stainless Steel Tripod Gate Barrier
Quick Details
Application:
Station, port, view spot, exhibition, swimming club, enterprise and institution, special access and so on
Advantages:
1. Being compatible wth serveral control devices IC , ID, magcard, barcode, fingerprint etc.
2. Smoothly operation, low noice
3. Unlocking is quick and reliable.
4. Automatically reset function: It will automatically lock if the pedestrian hasn’t pass through the channel in the pre-set time after the opening. The passing time is adjustable.
5. Auto-drop-arm function:the middle arm will drop down automatically(default) or free passing(optional) when power is off.
6. Emergency-escape function:the middle arm will drop down automatically by pressing the emergency button which can be remote-controlled whether the power is on or not.(optional)
7. Several working modes are optional, namely two-direction card reading for limiting flow capacities, or, one passage works while another is set to forbid passing, or, one passage normally operates while another is free to pass
8. Counting Function of the controllor, LED figure display function (optional)
9. Memory Function attached in the controllor
10. With standard input, output interface, it's best choice of system integration buyers.
Technical parameters
Overall dimension |
1200*300*1000mm |
Weight |
70kg |
Tripod arm length |
≤500mm |
Housing material |
SUS(304#),thickness is no less than 1.5mm |
Working voltage |
AC220V±10%,50HZ±10% |
Drive motor |
DC brushed motors(24V) |
Passage width |
≤600mm |
MCBF |
3,000,000 cycle |
Communication interface |
TCP/IP |
Passing speed |
40~50 people/min |
Readable cards |
IC/ID card |
Operating time |
1s |
Protection grade |
IP54 |
Working environment |
Indoor; Outdoor (with shelter) |
Working temperature |
-40°C~60°C |
Relative humility |
≤95%, no-condensation |
Operating places |
Government agency, Residential area, School, Enterprise, Factory, etc |
Attractions tripod turnstile
Our service
|
1. One -stop security solution provider, can help you save time and costs. |
2. Good quality with competitive price, offer OEM and ODM service. |
3. Professional technical supports and great after-sales service. |
4. Custom design shape and logo,for large amount, custom logo available for free. |
5. Fastest delivery and safe shipping way. |
6. Warranty: One year Warranty, from the date of delivery, a lifetime technical support. |
7. Feedback quickly: 24 hours online service and reply your inquiry within 8 hours. |
8. We could provide Online supports for you when need supports on testing. |
Payment Terms |
TT, Western Union, Cash |
Shipping Way: |
1. Fast way: by express courier,door to door, such as DHL, FedEx, UPS, TNT, EMS. by air, to airport |
2. Cheap way: by sea shipment. |
