|Place of Origin:||China|
|Minimum Order Quantity:||1 set|
|Packaging Details:||WOODEN BOX|
|Delivery Time:||10-15 days|
|Payment Terms:||T/T IN ADVANCE|
|Supply Ability:||500 SET/MONTH|
arm barrier gate,
security barriers and gates

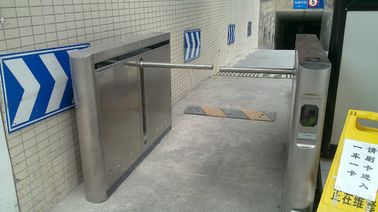

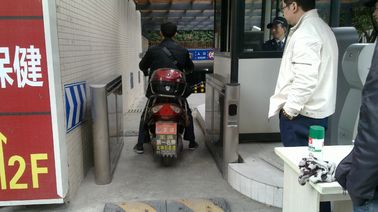

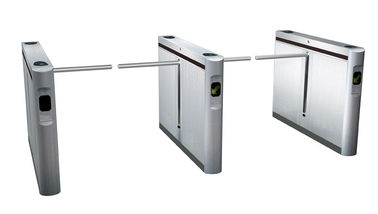

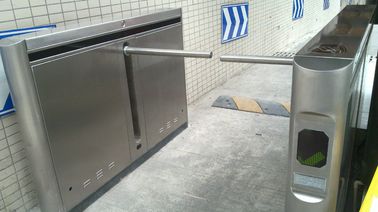

Arm Drop Waist Height Turnstile Barrier Gate With Bar-Code Paper Ticket System
Arm drop turnstile, it is designed to allow passage of wheel chair, pushing prams or passage with luggage, mainly used in mall, market etc.
System function :
1. Use SS304 stainless steel for the whole case, and adopt anti-damp, dust-proofing, water-proofing international standard design.
2. Based on standardization design, use laser cropping and cutting, instant-formation Technology, mechanized wire drawing technology, modularized docking, convenient for work piece loading and unloading and also for maintenance, a high level of parts exchanging.
3. Use 2mm stainless steel for the whole case, durable and reliable, free distortion.
4. The panel of the barrier uses high-intensity material, logo on the panel can be customized.
5. Stand alone infrared photocell can be applied.
6. International electrical interface, can be connected to the 3rd party read/write device, including: Mifare/EM reader, Bar-code paper ticket system, fingerprint reader, 3D face recognition device etc.
7. The Flap will open automatically during power interruption.
8. The operation speed of the panel can be adjusted on the control board according to the circumstance and passing speed.
Technical parameters :
|Description||Arm drop turnstile|
|Type||single flap||double flap|
|Power consumption||50W 100W|
|Housing Size||1400*150*950 mm|
|Housing material||1.5--2 mm, 304# stainless steel, corosion resistant|
|Drive motor||DC brushless motor|
|Channel width||≤1150 mm|
|Pass speed||40 persons/min.|
|Input signal optional||DC12V level signal or DC12V pulse signal|
|Flap open against power off (with capacitor)||Optional|
|Working enviroment temperature||-30℃ to +70 ℃|
|Working environments||Indoor, outdoor|
|Relative humidity||≤95% coagulation free|
1, 000, 000 cycles
