|Place of Origin:||China(mainland)|
|Brand Name:||RS Security|
|Minimum Order Quantity:||1pcs|
|Packaging Details:||wooden box|
|Series:||Drop Arm Turnstile||Product Name:||Rounded Drop Arm Turnstile|
|Material:||304 Stainless Steel||Size:||1200*165*980mm|
security barriers and gates,
biometric access control system

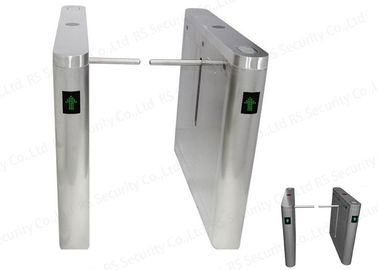

drop arm turnstile:
304 Stainless Steel
drop arm barrier and drop arm turnstile :
1. Fault detection and alarm functions, easy to use and maintenance
2. The running status can be programmed and controlled with the built-in keyboard on the main board
3. Mechanical anti-pinch function. If the gate meets resistance in the reset process, motors will stop working automatically within the prescribed time and reset again after the default delay (till fully reset)
4. Anti-breakthrough function. The gate is locked automatically until opening signal received
5. Synchronization functions (for dual gate equipments)
6. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically
7. Gate can be set as normally open or normally closed
8. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Access controller needed)
9. Direction can be set as single-direction or bi-direction
10. LED direction indicator
11. Gate auto opens when power off and auto close when power on, complying with fire safety requirements
12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.
13. Counter function (optional)
14. Support infrared photocell for anti-pinch and reset function
1. With functions of breakdown self- checking and alarm prompt, it has easy maintenance and usage;
2. With telephone self-checking function, automatic recovery in locked state and Powering off , automatically open.
3. Can read the card and with no memory function, which users can set according to their own needs through motherboard keyboard.
4. When pedestrians read effectively cartoon lines, infrared detect pedestrians ,then switch off the machine. Moreover, switching off time can be delayed from 1 to 5 seconds can through the main menu set.
5. With automatic reset function. After reading card effectively, the passage won't go through within the prescribed period of time the system will automatically cancel the passage of the permission to pass, and restrict the passage of time can be set by the managers themselves.
6. If pedestrians forget to read CARDS or invalid CARDS into the channel, the system will ban pedestrians and will send out alarm, only after the pedestrian exit channel to remove alarm; To read the chi-square allows traffic effectively;
7. With 485 remote control on switch-off function, in order to satisfy the user's special requirements and fire safety requirements.
8. Impact resistant, without receiving the start signal, automatically telescopic arm will be locked.
9. A unified, standard external electrical interface, can be hooked up with all kinds of reading and writing equipment, facilitate system integration, and can be realized through the management of computer remote control and management.
10. Can automatically get traffic statistics, it presents an intuitive way (optional) for managers, to make managers know certain direction of passage well like the palm of his hand.
drop arm turnstile Technical data:
1) Length of the standard arm: 490mm; optional range: 250-550mm
2) Weight: 90kg
3) Material of the case: Chinese standard (304, 1.2mm) stainless steel, perforated with laser
4) Power voltage: AC220±10% V, 50HZ
5) Driving motor: DC motor(24V)
6) Input interface: the relay switch signal or 12V level signal or 12V pulse width > 100ms 12V pulse signal, driving current > 10mA
7) Normal service life: 4 million times
8) LED Indicator Light: 2
9) Card-reading Window: the entire upper cover is toughened with 10mm cranberry ground glass, elegant and luxurious
10) Access port: 4
11) Passing speed: 30-40 persons/ minute
12) The leading time for the gate opening and closing: 1 second
13) The time needed for going into the state of passing after powered on: 3 seconds
14) Restoring time after fault occurs: 10 seconds
15) Working environment: indoor/ outdoor( with shelter);
Relative Humidity: :≤90%, no condensation
1. For all your inquires about us or our products, we will reply you in detail within 24hours.
2. We have engineers who has the experience of big turnstile engineering projects to help you solve all theproblems of technical.
3. Delivery Support:
Monthly capacity in our factories reaches 60,000 sets, while we accept the 5-set MOQ. With enough stock, we can arrange the delivery at once, or three days for volume orders.
Having gathered a team of hi-tech talent, marketing elite and management talent, we employ 150 staff, including a doctor, a technology expert, 6 senior engineers and 9 development engineers.
After sale support:
Warranty time: 12 months
