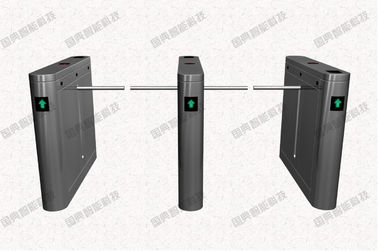

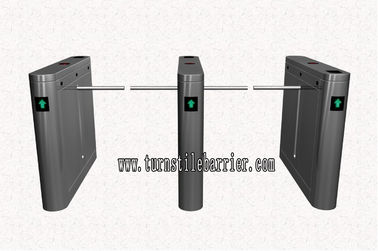

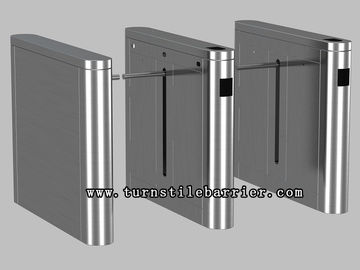

Bi-direction 304 Stainless Steel Drop Arm Turnstile Waterproof Traffic Barrier

Bi-direction 304 Stainless Steel Drop Arm Turnstile Waterproof Traffic Barrier

  • Bi-direction 304 Stainless Steel Drop Arm Turnstile Waterproof Traffic Barrier
  • Bi-direction 304 Stainless Steel Drop Arm Turnstile Waterproof Traffic Barrier
Bi-direction 304 Stainless Steel Drop Arm Turnstile Waterproof Traffic Barrier
Product Details:
Place of Origin: China(mainland)
Brand Name: RS Security
Certification: ISO,FCC,SGS,RoHS,CE
Model Number: RS1009
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: wooden box
Delivery Time: 3-8workdays
Payment Terms: TT
Supply Ability: 3000pcs/month
Contact Now
Detailed Product Description
Material: 304 Stainless Steel Size: 1200*165*980mm
Color: Black(Optional) Product Name: Rounded Drop Arm Turnstile
Series: Drop Arm Turnstile Model: RS 1009
High Light:

security barriers and gates

,

biometric access control system







Bi-direction 304 Stainless Steel Drop Arm Turnstile Waterproof Traffic Barrier





product name: drop arm gate turnstile



Quick Detail:



Brand Name RS Security

Modle Number: RS 1009B

Material: 304 stainless steel

Size: 1200x165x990mm

Finished: Brushed surface

Power supply voltage220V AC220±10%

Weight102kg/unit

Guarantee: 2 years

Place of Origin: China(shenzhen)





Description:



  • The barrier arm turnstile is a perfect combination of aesthetic look and fast passage.
  • Normal close or normal open can be switched.
  • It provides standard or wide lane to meet different requirements for the lane width, the lane width can be 600-1200mm



Features


Bidirectional control, by authorized card or biometric identifications, push button and so on
Can be integrated with all kinds of access control systems,
Flow direction guide with high bright led lamp
Anti-punch, the barrier will not close if it detects people inside the passageway
Anti-tailgating, it allows only one person to pass for an authorized card presented.
Anti-panic, when power off, the barrier will open for people to go through.
Normal close or normal open (for group pass)
Close and open by remote control
Card reading memory function, the user can set multiple time card reading passing or single time card reading passing
Failure detection and alarm functions;
Optional features
Case size changes.
Telescopic arm color, material to customize.
Counter displays.
Sound and light alarm.
Voice prompt.
Infrared number increase or decrease.
Other possible increase or decrease, change parts requirements
Applications:
Office building, factory, fitness club, prison, hotel lobby, school, port, exhibition hall.



Specification



Material

304 stainless steel

Input voltage

220V AC220±10%

Size

1200x165x990mm

Arm length

300-600mm

Net weight

102kg/unit

Clear passageway

600-1200mm

Motor

24V DC brush

Top Cover

Acrylic or stainless steel

Communication interface

RS485

Sensor beams

5 pairs for 1 complete lane

Transit speed

30-40 people/minute

Service life

3000,000 times

Close and open time

0.6S

Input interface

Relay signal, 12V level signal,

Clear passage width

600mm-1200mm

Work environment

Indoor and outdoor (shelter)

Number of led lamp

3pcs

Model

RS1009



Bi-direction 304 Stainless Steel Drop Arm Turnstile Waterproof Traffic Barrier 0

Competitive Advantage:



  • We are a leading manufacturer of turnstile and speed gate in China.
  • We focus on pedestrian turnstile gates.
  • We keep stock for regular products and we can support small orders. Usually, our lead time is just 3 days.
  • Design products according to customers’ requirements.
  • Credibility: We are SGS certificated Supplier. Our customers are located over 50 countries
  • Gratitude: We cherish the business chance you give us and return you with quality products and good service.
  • Professional: We have been in this business for more than 8 years. We have a strong professional team with various experiences.
  • We keep doing new product development. Our goal is to enhance our competitive capacity constantly.
  • Price: very competitive price and good quality products
  • Quality: we do 100% inspection before the shipment.
  • Promise: we are always ready to take the responsibility if any loss caused to our customer due to our mistakes.
