SS304 Stainless Steel Drop Arm Gate Handicap Flap Tripod Turnstiles Lane Width 1100mm

SS304 Stainless Steel Drop Arm Gate Handicap Flap Tripod Turnstiles Lane Width 1100mm

    • SS304 Stainless Steel Drop Arm Gate Handicap Flap Tripod Turnstiles Lane Width 1100mm
    • SS304 Stainless Steel Drop Arm Gate Handicap Flap Tripod Turnstiles Lane Width 1100mm
    • SS304 Stainless Steel Drop Arm Gate Handicap Flap Tripod Turnstiles Lane Width 1100mm
    • SS304 Stainless Steel Drop Arm Gate Handicap Flap Tripod Turnstiles Lane Width 1100mm
    • SS304 Stainless Steel Drop Arm Gate Handicap Flap Tripod Turnstiles Lane Width 1100mm
  • SS304 Stainless Steel Drop Arm Gate Handicap Flap Tripod Turnstiles Lane Width 1100mm

    Product Details:

    Place of Origin: China
    Brand Name: Fujica
    Certification: CE
    Model Number: FJC-Z6618

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Packaging Details: WOODEN BOX
    Delivery Time: 10-15 days
    Payment Terms: T/T IN ADVANCE
    Supply Ability: 500 SET/MONTH
    Contact Now
    Detailed Product Description

    SS304 Stainless Steel Drop Arm Turnstile Gate , Handicap Flap Tripod Turnstiles





    Description:



    SS304 Stainless Steel Drop Arm Gate Handicap Flap Tripod Turnstiles Lane Width 1100mm,  it is designed to allow passage of wheel chair, pushing prams or passage with big luggage, mainly used in mall, market etc.

    FUJICA intelligentized Arm drop turnstile is designed to control pedestrian entering or exiting restricted areas, use SS304 stainless steel for the whole case, and adopt anti-damp, dust-proofing, water-proofing international standard design, suitable for both indoors and outdoors.
    Arm drop turnstile consists of cabinet,reader module,main control module,motor&driver module,infrared photocell,alarm device,limit switch and voice prompt device etc., can be used for the applications like apartment, factory, museum, station and ferry terminal etc.. Together with intelligent card reader/writer and management software, they are combined as intelligent flap barrier management system, can fulfill the functions like entrance control, time attendance, pedestrian volume control and tolling etc.





    System function :



      1. Use SS304 stainless steel for the whole case, and adopt anti-damp, dust-proofing, water-proofing international standard design.
      2. Based on standardization design, use laser cropping and cutting, instant-formation Technology, mechanized wire drawing technology, modularized docking, convenient for work piece loading and unloading and also for maintenance, a high level of parts exchanging.
      3. Use 2mm stainless steel for the whole case, durable and reliable, free distortion.
      4. The panel of the barrier uses high-intensity material, logo on the panel can be customized.
      5. Stand alone infrared photocell can be applied.
      6. International electrical interface, can be connected to the 3rd party read/write device, including: IC/EM reader, Bar-code paper ticket system,   fingerprint  reader, 3D face recognition device etc.
      7. The Flap will open automatically during power interruption.
      8. The operation speed of the panel can be adjusted on the control board according to the circumstance and passing speed.


    Technical parameters :

    Description Arm drop turnstile
    Type single flap double flap
    Power consumption 50W/unit
    Housing Size 1400*150*950mm
    Housing material 1.5--2mm,  304# stainless steel,  corosion resistant
    Drive motor DC brushless motor
    Channel width ≤1150mm
    Pass speed 40 persons/min.
    Communication Interface RS485
    Input signal optional DC12V level signal or DC12V pulse signal
    Flap open against power off (with capacitor) Optional
    Working enviroment temperature -30℃ to 70 ℃
    Working environments indoor, outdoor
    Relative humidity ≤95% coagulation free
    MCBF 1,000, 000 cycles



    Pictures & Certificates:

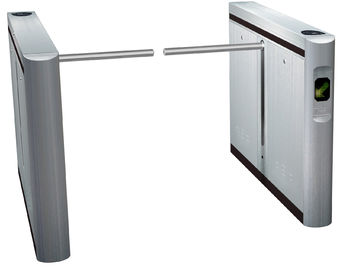

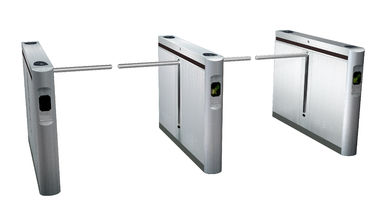

    SS304 Stainless Steel Drop Arm Gate Handicap Flap Tripod Turnstiles Lane Width 1100mmSS304 Stainless Steel Drop Arm Gate Handicap Flap Tripod Turnstiles Lane Width 1100mmSS304 Stainless Steel Drop Arm Gate Handicap Flap Tripod Turnstiles Lane Width 1100mmSS304 Stainless Steel Drop Arm Gate Handicap Flap Tripod Turnstiles Lane Width 1100mm
