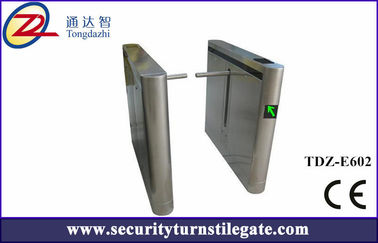

Name: Single / Double Swing Turnstile Drop Arm Barrier with fingerprint function
Brand: Shenzhen Turnstile Technology Co., Ltd.
SKU: TDZ-E602
Price: 750.00 USD
Availability: InStock

Home Products Drop Arm Barrier

Single / Double Swing Turnstile Drop Arm Barrier with fingerprint function

Product Details:

Place of Origin:	China
Brand Name:	TDZ
Certification:	CE
Model Number:	TDZ-E602

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	USD 500 -1000 / Piece
Packaging Details:	paper carton and wooden cases
Delivery Time:	3-4 working days
Payment Terms:	T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability:	200 pieces / month

Contact Now

Detailed Product Description

Normal Life:	3,000,000 Times	Material:	304 / 316 Stainless Steel
Dimension:	12001601000mm	Occasions:	Bank,government,railway,airport
Channel Width:	600 -900 Mm	Machine Core:	Fully Automatic
Motor:	Brushless DC Motor (24V)	Power Supply:	AC 220 ± 10%V,50Hz
Highlight:	security barriers and gates

Fingerprint Drop Arm Barrier with Single / Double Swing Turnstile

Quick Details

316 stainless steel automatic drop arm barrier with card reader
Channel width:600-900mm
3 pairs of infrared sensor
Control panel with counting function,LED display function (optional).
Can use with RFID,Mifare,fingerprint,bar code,facial scanner,etc access control products

Product Descriptions:

Waterproof, sunscreen, anti-temperature, anti-cold.
Access Prompt function:Red and green light prompt the passing information.
Can set a one-way or two-way control
Compatible IC, ID, magnetic card, bar code card, and other control equipment.
Small button into the main control panel ,can be set state of equipment.
Anti-pinch, anti bumps function
Scour protection function ,when the gate signal is not received, arms keep closed
With automatic reset function,if does not pass in the set time,turnstile will get back
Normally open or closed can be freely adjusted
can be used with a variety of reading devices, work when it receive relay switch signal
Fire emergency function,after power,arms will be automaticlly opened.When on power,will be closed automatically

Single / Double Swing Turnstile Drop Arm Barrier with fingerprint function 0

Technical Parameters

Material	304/316 stainless seel (optional)
Fishing	Brushed surface (standard) / Polishing surface
Dimension	12001601000mm
Channel width	600 - 900mm
Drive motor	Brushless DC motor (24V)
Power supply	AC220 (110) ± 10%V,50Hz
Working life	3,000,000 times
Communication Interface	RS485 / RS232,Ethernet
Transit Speed	30 - 40 passage / minute
Work Environment	Indoor / Outdoor (Shelter)
Use Place	Station,park,apartment,school,factory,bank,building

Customized Features:

Alternative Materials, Finishes and Custom Design
Access Control System Integration
Ticket System Integration
Camera System Integration
Thermostat System Integration
Remote-Controlled Button
Usage Counters
Waterproof and Dustproof Design: IP53 for mechanical module, IP65 for electric module
SDK and technical support will be provided for Secondary development of software
