Automatic Intelligent Remote Control Telescopic Sliding Gate For Exterior Stadium

Automatic Intelligent Remote Control Telescopic Sliding Gate For Exterior Stadium

    • Automatic Intelligent Remote Control Telescopic Sliding Gate For Exterior Stadium
  • Automatic Intelligent Remote Control Telescopic Sliding Gate For Exterior Stadium

    Product Details:

    Place of Origin: China
    Brand Name: Hongmen
    Certification: CE
    Model Number: HSG61B

    Payment & Shipping Terms:

    Minimum Order Quantity: L=3m * H=1.5m
    Packaging Details: Iron rack plus plywood
    Delivery Time: 10 Working Days
    Payment Terms: T/T
    Supply Ability: 30.00m/month
    Contact Now
    Detailed Product Description
    High Light:

    Automated Sliding Gates

    ,

    Motorized Sliding Gate

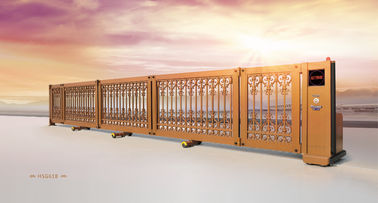

    Automatic Intelligent Remote Control Telescopic Sliding Gate For Exterior Stadium





    Features:



         1.EMO Button (Emergency Stop Button).

         2.Trackless Operation.

         3.Industrial Grade Aluminium Alloy (6063-T5).

         4.Wireless Remote Control (433MHz).

         5.Smart Power Outage Clutch.

         6.Dispatch In Modules Form (Transportation Friendly).

         7.Powder Coating.

         8.Anti- Collision IR Sensor.

         9.Anti- Climb Photo Cell.



    Specifications:



    Automatic Intelligent Remote Control Telescopic Sliding Gate For Exterior Stadium 0



    Material Specification:



    Description Material Specification (mm)
    Upper Beam 6003-T5 120*74*d2.5
    Slide Bar 6003-T5 135*80*d2.5
    Gate Frame Post 6003-T5 110*80*d3.0
    Rear Gate Frame Post 6003-T5 80*80*d3.0
    Front Gate Frame Post 6003-T5 80*76*d2.0
    Auxiliary Gate Frame 6003-T5 35*29*d1.0
    IR Sensor Post 6003-T5 70*25*d2.0
    Motor Tower A3 L397*W390*H650





    Technical Specification:



    Descrition Guide Motor Swing Motor
    Operation Voltage DC36V DC36V
    Operation Temperature -25ºC to +70ºC -25ºC to +70ºC
    Current 5A 4.63A
    Environment Humidity < 90% < 90%
    Operation Speed 20m/min 20m/min
    Motor Power Rating 1000W 1000W
    Motor RPM 1800r/min 1800r/min
    IP Rating IP44 IP44
    Insulation Grade E E
    Speed Reduction Ratio 35: 1 60: 1
    Remote Distance 50m (empty space) 50m (empty space)
