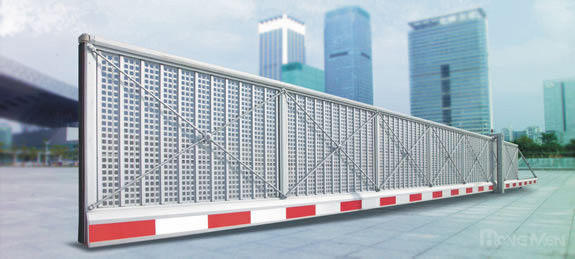

Motorized Cantilever Remote Control Automatic Sliding Gates , 433MHz

Motorized Cantilever Remote Control Automatic Sliding Gates , 433MHz

  • Motorized Cantilever Remote Control Automatic Sliding Gates , 433MHz
Motorized Cantilever Remote Control Automatic Sliding Gates , 433MHz
Product Details:
Place of Origin: China
Brand Name: Hongmen
Certification: CE
Model Number: P703K-Y
Payment & Shipping Terms:
Minimum Order Quantity: L=3m * H=1.5m
Packaging Details: Plywood + Iron Rack
Delivery Time: 10 Working Days
Payment Terms: TT With 50% Deposit, 50% Payable Upon Goods Dispatch
Supply Ability: 30.000m / month
Contact Now
Detailed Product Description
High Light:

Automatic Slide Gates

,

Electric Sliding Gate





Automatic Sliding Gates , Electric Cantilever Gate , Motorized Gate Operator



Features:



  1. CE Certified.
  2. EMO Button (Emergency Stop Button).
  3. Trackless Operation.
  4. Industrial Grade Aluminium Alloy (6063-T5).
  5. Wireless Remote Control (433MHz).
  6. Powder Coating
  7. Dispatch in Modules Form (Transportation Friendly).
  8. Smart Power Outage Clutch.
  9. Anti- Collision IR Sensor.
  10. Anti- Climb Photo Cell.



Specifications:



Operating Voltage 220 VAC ±10% (50Hz ~ 60Hz)
Operating Temperature ˗ 25˚C ~ + 75˚C
Environmental Humidity ≤ 90%
Operating Speed 15m/min, 23m/min, 31m/min
Motor Voltage Rating 36 VDC
Motor Power Rating 300W
Motor RPM 1800r/min
IP Rating IP54
Insulation Grade F
Motor Output Torque 1.6 N.m
Current (A) 15A
Speed Reduction Ratio 15 to 1
Wireless Remote Distance

50m



Parts Material Hardness Specsification
Hw mm
Main Slide Bar 6063-T5 13-15˚ 260*170*d4-9
Upper Beam 6063-T5 10-13˚ 120*65*d2-3
Gate Frame 6063-T5 10-13˚ 98*60*d1.2
Upright Post 6063-T5 10-13˚ 180*100*d3
Control Box 6063-T5 10-13˚ 230*130*d3.5
Pull Rod 6063-T5 10-13˚ 20*ɸ8
Traingle Rod Beam SUS304 N/A 60*40*d1.5
Pickets 6063-T5 10-13˚ 38*25*d1
Gridding Vertical Beam 6063-T5 10-13˚ 14*8.3
Gridding Horizontal Beam 6063-T5 10-13˚ ɸ8*d1.5
Enhance Pickets 6063-T5 10-13˚ 45*32*d1



Motorized Cantilever Remote Control Automatic Sliding Gates , 433MHz 0



Motorized Cantilever Remote Control Automatic Sliding Gates , 433MHz 1

Motorized Cantilever Remote Control Automatic Sliding Gates , 433MHz 2
