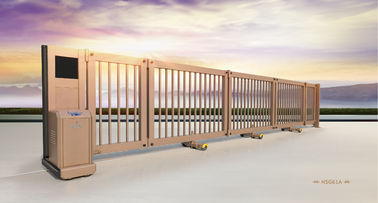

Telescopic Powder Coating Electric Cantilever Sliding Gates 433MHz

Telescopic Powder Coating Electric Cantilever Sliding Gates 433MHz

Telescopic Powder Coating Electric Cantilever Sliding Gates 433MHz

Product Details:

Place of Origin: China
Brand Name: Hongmen
Certification: CE
Model Number: HSG61A

Payment & Shipping Terms:

Minimum Order Quantity: L=3m * H=1.5m
Packaging Details: Iron rack plus plywood
Delivery Time: 10 Working Days
Payment Terms: T/T
Supply Ability: 30.00m/month
Contact Now
Detailed Product Description

Telescopic Powder Coating Electric Cantilever Sliding Gates 433MHz





Features:



     1. EMO Button (Emergency Stop Button).

     2. Trackless Operation.

     3. Industrial Grade Aluminium Alloy (6063-T5).

     4. Wireless Remote Control (433MHz).

     5. Powder Coating.

     6. Dispatch In Modules Form (Transportation Friendly).

     7. Smart Power Outage Clutch.

     8. Anti- Collision IR Sensor.

     9. Anti- Climb Photo Cell.



Specifications:



Telescopic Powder Coating Electric Cantilever Sliding Gates 433MHz



Material Specification:



Description Material Specification (mm)
Upper Beam 6003-T5 120*74*d2.5
Slide Bar 6003-T5 135*80*d2.5
Gate Frame Post 6003-T5 110*80*d3.0
Rear Gate Frame Post 6003-T5 80*80*d3.0
Front Gate Frame Post 6003-T5 80*76*d2.0
Auxiliary Gate Frame 6003-T5 35*29*d1.0
IR Sensor Post 6003-T5 70*25*d2.0
Motor Tower A3 L397*W390*H650





Technical Specification:



Descrition Guide Motor Swing Motor
Operation Voltage DC36V DC36V
Operation Temperature -25ºC to +70ºC -25ºC to +70ºC
Current 5A 4.63A
Environment Humidity < 90% < 90%
Operation Speed 20m/min 20m/min
Motor Power Rating 1000W 1000W
Motor RPM 1800r/min 1800r/min
IP Rating IP44 IP44
Insulation Grade E E
Speed Reduction Ratio 35: 1 60: 1
Remote Distance 50m (empty space) 50m (empty space)
