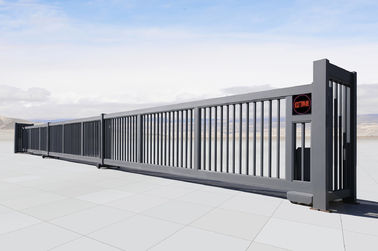

Villa Security Aluminium Alloy Telescopic Sliding Gate , 18m/min

Villa Security Aluminium Alloy Telescopic Sliding Gate , 18m/min

  • Villa Security Aluminium Alloy Telescopic Sliding Gate , 18m/min
Villa Security Aluminium Alloy Telescopic Sliding Gate , 18m/min
Product Details:
Place of Origin: China
Brand Name: Hongmen
Certification: CE
Model Number: P863
Payment & Shipping Terms:
Minimum Order Quantity: L=3m * H=1.5m
Packaging Details: Iron rack plus plywood
Delivery Time: 10 Working Days
Payment Terms: T/T
Supply Ability: 30.00m/month
Contact Now
Detailed Product Description
High Light:

Automated Sliding Gates

,

Auto Sliding Gates

Villa Security Aluminium Alloy Telescopic Sliding Gate , 18m/min








Features:

     1. CE Certified.
     2.  Powder Coating.
     3. EMO Button (Emergency Stop Button).
     4. Industrial Grade Aluminium Alloy (6063-T5).
     5. Wireless Remote Control (433MHz).
     6. Trackless Operati.
     7. Smart Power Outage Clutch.
     8. Anti- Collision IR Sensor.
     9. Anti- Climb Photo Cell.
    10. Dispatch In Modules Form (Transportation Friendly).

Specifications:
Villa Security Aluminium Alloy Telescopic Sliding Gate , 18m/min 0

Material Specification:

Description Material Hardness (HW) Specification (mm)
Upper Beam 6005-T5 13-17 115*80*d3
Lower Beam 6003-T5 10-17 135*80*d3-4
Front Gate Frame A/ Rear Gate Frame 6003-T5 10-13 110*80*d2.0
Front Gate Frame B 6003-T5 10-13 80*80*d2.5
Cross Tube 6003-T5 10-13 35*29*d1.0
Auxillary Gate Frame 6003-T5 10-13 70*25*d1.0
Supportive Bar SUS304 10-13 42*44*d2.0
Front/Rear Upright Post 6003-T5 10-13 180*100*d3.0
Rail 6003-T5 10-13 25*18



Technical Specification:



Operation Voltage 220V± 10%, 50Hz-60Hz
Operation Temperature -25ºC to +70ºC
Environment Humidity < 90%
Operation Speed 18m/min
Motor Power Rating 500W
Motor RPM 1400r/min
IP Rating IP54
Insulation Grade F
Speed Reduction Ratio 30: 1
Remote Distance 50m (empty space)
