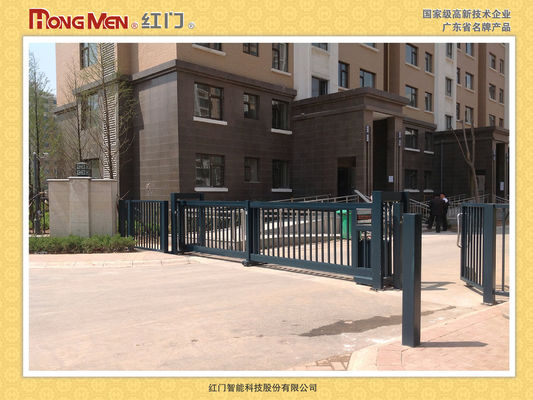

Aluminium Alloy Telescopic Sliding Gate With Anti-Collision Photocell Sensors

Aluminium Alloy Telescopic Sliding Gate With Anti-Collision Photocell Sensors

  • Aluminium Alloy Telescopic Sliding Gate With Anti-Collision Photocell Sensors
Aluminium Alloy Telescopic Sliding Gate With Anti-Collision Photocell Sensors
Product Details:
Place of Origin: China
Brand Name: Hongmen
Certification: CE
Model Number: P863B-H
Payment & Shipping Terms:
Minimum Order Quantity: L=3m * H=1.5m
Packaging Details: Iron rack plus plywood
Delivery Time: 10 Working Days
Payment Terms: T/T
Supply Ability: 30.00m/month
Contact Now
Detailed Product Description
Material: Industrial Grade Aluminium Alloy (6063-T5) Colour: Black / Dark Grey / Textured Colours Available
Surface Treatment: Powder Coated Control: Wireless Remote Control
IP Rating: IP44 Length: Up To 100ft
Height: Up To 6.5ft Motor: 220VAC / 500W
Operation: Telescopic Sliding
High Light:

Automated Sliding Gates

,

Auto Sliding Gates

Aluminium Alloy Telescopic Sliding Gate With Anti-Collision Photocell Sensors


Introduction:

First ever Telescopic Sliding Gates that able to cover up to 100ft of opening span.

Features:

     1.EMO Button (Emergency Stop Button).
     2.Trackless Operation.
     3.Industrial Grade Aluminium Alloy (6063-T5).
     4.Wireless Remote Control (433MHz).
     5.Powder Coating
     6.Dispatch In Modules Form (Transportation Friendly).
     7.Smart Power Outage Clutch.
     8.Anti- Collision IR Sensor.
     9.Anti- Climb Photo Cell.

Specifications:

Aluminium Alloy Telescopic Sliding Gate With Anti-Collision Photocell Sensors 0

Material Specification:


DescriptionMaterialSpecification (mm)
Upper Beam6003-T5120*74*d2.5
Slide Bar6003-T5135*80*d2.5
Gate Frame Post6003-T5110*80*d3.0
Rear Gate Frame Post6003-T580*80*d3.0
Front Gate Frame Post6003-T580*76*d2.0
Auxiliary Gate Frame6003-T535*29*d1.0
IR Sensor Post6003-T570*25*d2.0
Motor TowerA3L397*W390*H650



Technical Specification:


DescritionGuide MotorSwing Motor
Operation VoltageDC36VDC36V
Operation Temperature-25ºC to +70ºC-25ºC to +70ºC
Current5A4.63A
Environment Humidity< 90%< 90%
Operation Speed20m/min20m/min
Motor Power Rating1000W1000W
Motor RPM1800r/min1800r/min
IP RatingIP44IP44
Insulation GradeEE
Speed Reduction Ratio35: 160: 1
Remote Distance50m (empty space)50m (empty space)


FAQ

Q: How do you ship it out to worldwide customers?
A: We take all necessary precaution before its dispatch from the factory. The most inner layer is wrapping up with a thin layer of shrink wrap, then follow by a customized EPE form to firmly secure its position within the carton box.

Q: Do you take any additional precaution if we only purchase a few sets whereby we going to ship it via LCL?
A: Yes, we will place 4 sets of the well-packed crowd control barriers on upright position and sitting firmly on top of a plywood pallet.

Q: Do you go through the fumigation process before exporting the goods?
A: Due to the facts that all packaging are non-timber material, and same goes to the pallet is made of plywood which we don’t have to worry about fumigation certifications

Q: Do you have any export experience?
A: Yes, our company have more than 16 years of experience of exporting such innovative and unique products to all over the world

Aluminium Alloy Telescopic Sliding Gate With Anti-Collision Photocell Sensors 1
