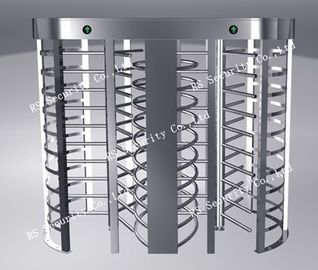

Automatic Stainless Steel Luxury Full Height Turnstiles Gates For Parking Facilities

Automatic Stainless Steel Luxury Full Height Turnstiles Gates For Parking Facilities

product name: full height turnstile

Quick details:

Brand Name:  RS Security

Model Number: RS 997

Application: tourist places, prison, community fitness club, school,

Material:  304 stainless steel

Size:  1630x1500x2300mm

Bi-directional access control

Description:

 full height turnstiles RS 997 Barrier 120degree rotation in one or two directions, controlled by an access control system or push button at a reception desk school, it prevents unauthorized people to enter the restricted areas,

The electromagnet unlock when a valid signal is given to the motherboard, it allows authorizer to go through the passageway.

It is designed for places that requires high security, such as prison,

ramework Specifications:

• Framework: 304 (Standard) / 316 grade stainless steel
• Thickness of Ply: 1.5mm (Standard) / 2.0mm
• Finishing: Brushed surface (Standard) / Polishing surface
• Arm Length: 500~700mm
• Arm Diameter: 38mm (Standard) / 48mm
• Max Tolerance of Arm: 30kg
• Driving Force of Arm: 3kg
• Electric Specifications:
• Power Voltage: AC220V / AC85 ~ 230V
• Operation Voltage: DC24V
• Operation Current: 3A / 5A (Max)
• Driving Motor: Brushless DC motor
• Communication Interface: RS485 (1CH) / RS232 (3CH); Available to CAN BUS and Ethernet (Optional)
• Control I/O: Relay Out (6CH) / Level Input (4CH)
• Transit Speed: 20 ~ 35 passage / minute
• Temperature: -20 centigrade ~ 60centigrade
• Work Environment: Indoor/ Outdoor (Shelter)
• Traffic-light Indication

Features

1. Stainless steel housing, novel and beautiful design, durable and stable mechanism.

2. Waterproof, sunscreen, anti-temperature, anti-cold.Suitable to used outdoor.

3. Led Indicator Light : Red and green light prompt the passing information.

4. with a variety of operating modes you can choose, you can set a one-way or two-way control

5. Can integrated with RFID , magnetic card, bar code card, and other control equipment.

6. Fire safety function: When out of power , arm will automatically drop down , keep channel open

7. Scour protection function : The arm will be locked before received the open signal.

8. Can work with different systems , such as access control system , ticketing system , ESD system , consumption system , construction system , etc

9. Automatic reset function : Passenger did not pass within the stipulated time , the system will automatically cancel the access permissions of the user . (Default 5 seconds)

Applications:

High security places, factory, fitness club, prison, hotel lobby, school, port, exhibition hall.

Prison
Office building
Government
School
Hotel
Super market
Bank
Park

Traffic type

Specification

Competitive Advantage:

• We are a leading manufacturer of turnstile and speed gate in China.
• We focus on pedestrian turnstile gates.
• We keep stock for regular products and we can support small orders. Usually, our lead time is just 3 days.
• Design products according to customers’ requirements.
• Credibility: We are SGS certificated Supplier. Our customers are located over 50 countries
• Gratitude: We cherish the business chance you give us and return you with quality products and good service.
• Professional: We have been in this business for more than 8 years. We have a strong professional team with various experiences.
• We keep doing new product development. Our goal is to enhance our competitive capacity constantly.
• Price: very competitive price and good quality products
• Quality: we do 100% inspection before the shipment.
• Promise: we are always ready to take the responsibility if any loss caused to our customer due to our mistakes.
