Specifications:

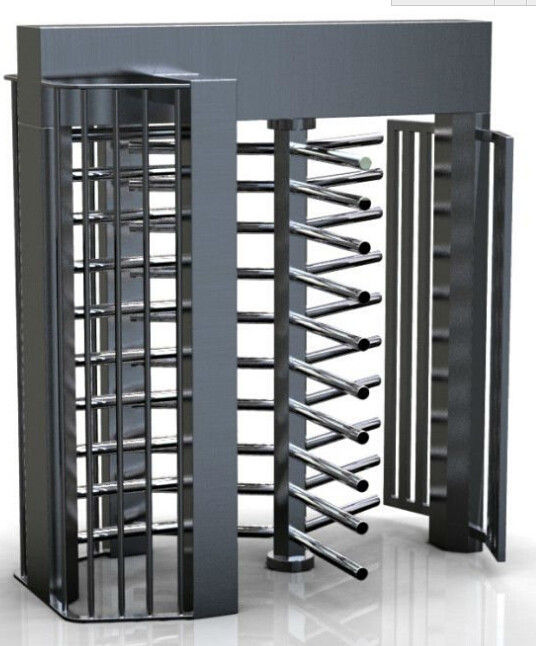

Features of 304 stainless steel full height turnstile gate(A-TF202+):Super anti-reverse design.More features of 304 stainless steel full height turnstile gate(A-TF202+):

1.Revoling Door Size:120 degree 2200L x 1400W x 2300Hmm

2. Material:Cold-rolled steel plate
3. Signal:Passive node; TTL signal;RS232 communication interface(selective);TCP/IP communicate interface (selective).

4. Turning Direction of Gate Bar:Bi-directional; Single-directional

5. Controller:Using 16-bit microprocessor as a core device,it can be processed according to client's requirement

6. Interface:Standard input /output interface

7. Working Power:AC220V (adjustable)

8. Power (optional):AC220V(adjustable);DC24V3A(adjustable);DC12V3A(adjustable)

9. Working Environment:Indoor /outdoor
10. Temperature:0degree celsuis~65degree celsuis (customized available)
11. Humidity:5%~90%
12. On/Off Time:1second
13. Failture Status:Allow passing after power interrupt
14. Light Indication:Green light passing;Forbidden passing for red light

15. Casing Protection:Sealing for waterproofing
16. Service Life:Continous rotation of more than 3 million
