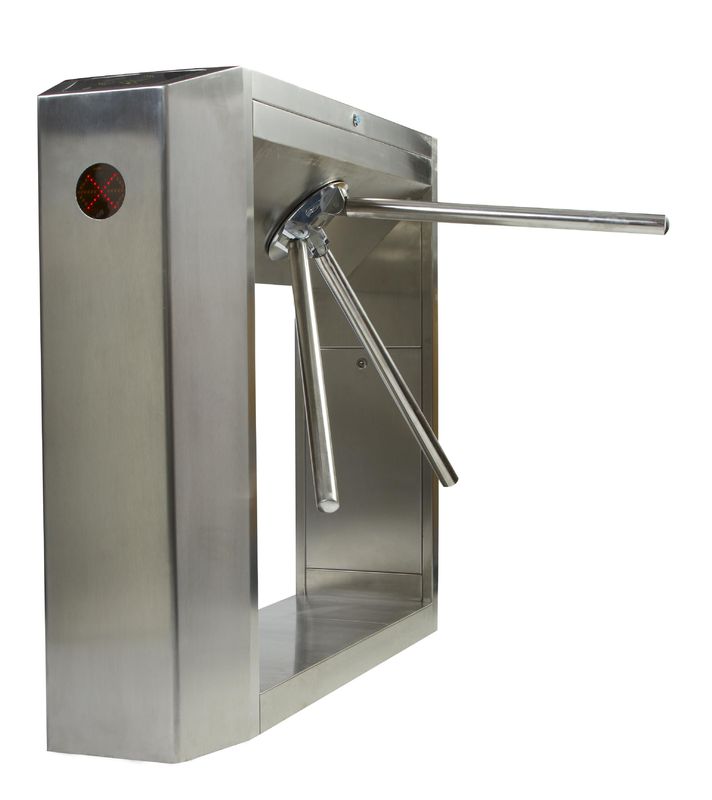

50 / 60Hz RFID Card Numeric Control Single Arm Half Height Turnstile Security Systems

Product Details:

Place of Origin:	shenzhen
Brand Name:	wanqiaohong
Certification:	ISO2008
Model Number:	WQ-S1/401
color:	silver
Power Supply:	Single-Phase AC110V/220V, 3A, 50/60Hz
Net Weight:	50kg
Housing:	304 # Stainless steel

Contact Now

Detailed Product Description

High Light:

half height turnstiles

Illegal Entry Alarm

50 / 60Hz RFID Card Numeric Control Single Arm Half Height Turnstile Security Systems

Specifications:

Housing	304 # Stainless steel
Tripod Bar	Length 480 mm,
Tripod Bar	Diameter 40 mm
Power Supply	Single-Phase AC110V/220V, 3A, 50/60Hz
Control Voltage	DC24V,
Power Consumption	40W
Electromagnetism	No Residual Magnetism, without Magnetization
Buffer	Hydraulic Pressure Reset Cushioning, without Bumping Noise
Operating Temperature Range	-25°C-60°C
Operating Humidity Range	≤90% non-condensing
Net Weight	50kg
Gross Weight	60kg

Description:
1. The turnstile has fully rainproof stainless steel housing, processed by numeric control punching and
laser drilling, novel and elegant.
2.The turnstile has unique mounting surfaces (for the installation of card reader and indicator light, etc.),
ensuring simple and convenient installation of the turnstile control equipment of system integrators.
3. The interior module of the tripod turnstile has a cushioning device for automatic regulation of hydraulic
pressure, which helps to realize low noise, no impact and automatic decelerated returning to
homeposition during operation of the turnstile. The interior module has been treated by zinc-plating.

4. Programmable turnstile control is available, for one-direction or bi-direction control (to be set by the
user).

5.The base cover can be opened using a key, therefore it is convenient for the user to install it. There
arecard reader supports at both sides of the turnstile, and a 40CM*18CM mounting plate, for the
mounting of controller, is fixed at one side of the housing.

6.The base is fixed with four 10MM expansion bolts.

Applications:
Single arm turnstile applies for one direction or bi-directional entry and exit passage.Bus
station, yard, tourism entry and exit passage Community, factory, company attendance,
door access management Special Passage bicycle, motorcycle, disabled passage

Competitive Advantage:
1.1.5mm thickness 304 stainless steel
2. RFID card (IC/ID), Barcode, fingerprint, control accepted
3. CE and ISO 9001-2008 certified
4. OEM and ODM are welcome.
