Place of Origin: | China(mainland) |
Brand Name: | RS Security |
Certification: | ISO,FCC,SGS,RoHS,CE |
Model Number: | RS 588 |
Minimum Order Quantity: | 1pcs |
---|---|
Price: | 2000USD |
Packaging Details: | wooden box |
Delivery Time: | 3-8workdays |
Payment Terms: | TT |
Supply Ability: | 3000pcs/month |
Flap Gate Longevity:: | Heavy Duty | Flap Gate Direction:: | Bi-direction |
---|---|---|---|
Flap Gate Service:: | OEM/ODM | Protection Grade:: | IP44 |
Colors:: | OEM/ODM | Series: | Flap Barrier |
High Light: | automatic gate barrier system,automatic flap gate |

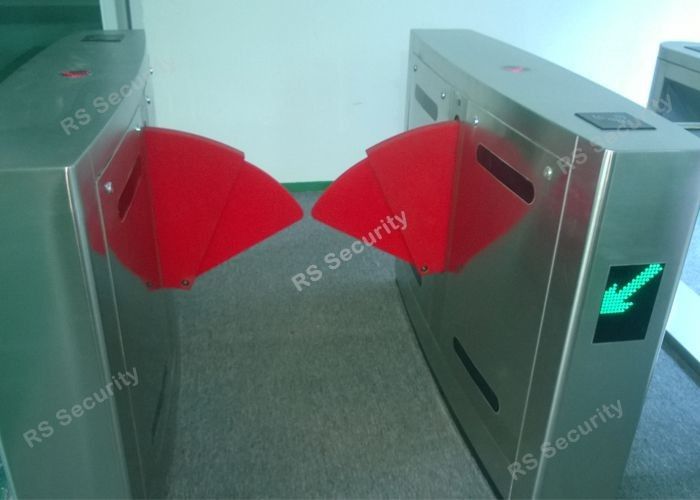

retractable flap barrier Case material: 304 stainless steel (default) / 316 stainless steel (optional) flap
barriers Case size: 1200 × 300 × 980 (mm) (default) / (other sizes can be customized). Automatic
reset time after failure : 10 seconds, waterproof sunscreen dust design: system-level IP41 / electrical
part IP65 system features.
Specification:
Brand | RS Security | ||||||||||
Item No. | RS 588 | ||||||||||
Housing Material | 304 stainless steel | ||||||||||
Dimensions | L1200 x W280 x H1000mm | ||||||||||
Maximum Passage Width | 550mm | ||||||||||
Power Supply | AC220V±10%,50HZ | ||||||||||
Motor Voltage | DC24V | ||||||||||
Flap Opening/Closing Time | 0.2S | ||||||||||
MCBF | 5 million cycles | ||||||||||
Transit Speed | 35 persons/min | ||||||||||
Operating Environment | Indoor/outdoor (Shelter) | ||||||||||
Operating Temperature | -30°C ~ 60°C | ||||||||||
Operating Humidity | ≤95% no condensation |
Features:
1.Elegant appearance:304 stainless steel cabinet and the color of arms can be optional for several color.
2.Equipped with standard input/output signal interface, can be integrated with all types of access control
panel, offering complete entrance control solutions.
3.Malfunction self-detection, which is easy for operation and maintenance.
4.Operational mode can be set up through the built-in menu on the control panel.
5.Flap Barrier has several sensors to detect obstructions during its movement.If an obstruction is
detected during closing, the arms wing will stop its movement to prevent the user from being clamped.
6.Anti-collision function, the flaps will stay close if not receiving the open signal.
7.Flaps open on power failure.It can be integrated with a Fire alarm system or other alarming signal for
emergency.It will open automatically in case of emergency.
8.Flaps reset to close position when power resume.
9.Flaps reset to lock position when access time expire.
10.Prevents Invalid/Tailgate/Wrong direction access.
11.LED Array indication for access granted/denied.
12.Compatible with diverse access control devices.
13.Pedestrian flow directions can be single or double directions.
14.RS485 socket is available to connect the computer.
