Place of Origin: | China |
Brand Name: | TDZ |
Certification: | CE |
Model Number: | TDZ-Y209 |
Minimum Order Quantity: | 1 piece |
---|---|
Price: | USD 500 -1000 / Piece |
Packaging Details: | paper carton and wooden cases |
Delivery Time: | 5-7 working days |
Payment Terms: | T/T, Western Union, MoneyGram, L/C, D/A, D/P |
Supply Ability: | 200 pieces / month |
Material: | 304 / 316 Stainless Steel | Dimension: | 1200*300*1000mm |
---|---|---|---|
Channel Width: | 600mm - 900mm | Access Speed: | 30 People / Minute |
Surface Treatment: | Brushed Surface | Working Enviroment: | Indoor And Outdoor |
High Light: | Flap Barrier Turnstile,Pedestrian Turnstile Gate |

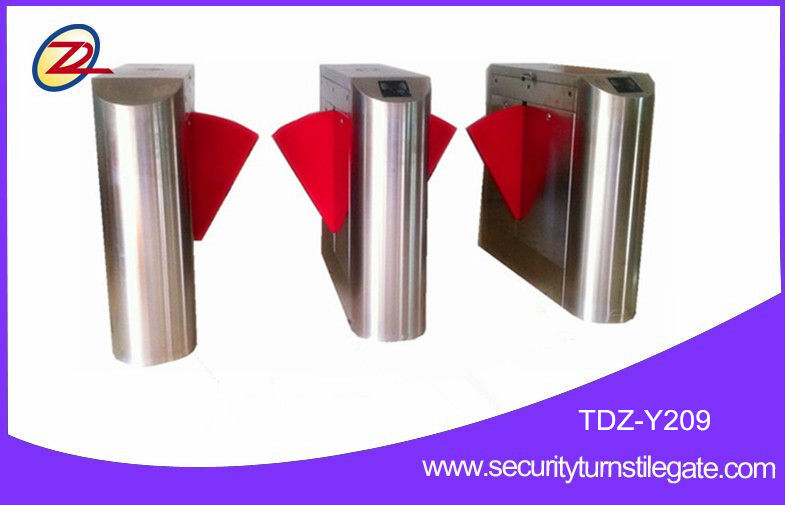

Brushed Surface Flap Barrier Gate Bidirectional Turnstile with ID Access Control System
Flap Barrier systems provide effective means for pedestrian flow control at entrances of high class communities, intelligent buildings, hotels, subway stations and other high level venues.
Main Features & Function
1.Fault detection and alarm functions, easy to use and maintenance.
2. The running status can be programmed and controlled with the built-in keyboard on the main board.
3. Mechanical antipinch function. If the gate meets resistance in the reset process, motors will stop working automatically within the prescribed time and reset again after the default delay (till fully reset).
4. Anti-breakthrough function. The gate is locked automatically until opening signal received
5. Synchronization functions (for dual gate equipments).
6. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds),the system will cancel the authority of the current user automatically.
7. Gate can be set as normally open or normally closed.
8. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc.
(Access controller needed)
9. Direction can be set as single-direction or bi-direction.
10. LED direction indicator.
11. Gate auto opens when power off and auto close when power on, complying with fire safety requirements.
12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.
13. Counter function (optional).
14. Support infrared photocell for anti-pinch and reset function (optional).
Technical Info
Model | TDZ-Y209 |
Voltage |
AC 220V/110V±10% |
Frequency |
50/60Hz |
Current |
3A |
Control circuit: |
DC24V |
Power consumption |
40W |
Working temperature |
-20°C~60°C |
Working humidity |
0~95%RH |
Protection grade |
IP44 |
Net weight |
70kg |
Dimension |
1200 *300 * 1000mm |
Project Case
Shipping way
Warranty:
One year Warranty, from the date of delivery, a lifetime technical support.
Feedback quickly:
1. 24 hours online service and reply your inquiry within 8 hours.
2. We could provide Online supports for you when need supports on testing.
Advantage :
1.One stop security solution provider, can help you save time and costs.
2.Good quality with competitive price, offer OEM and ODM service.
3. Professional technique supports and great after sell service.
4. Fastest delivery and safe shipping way.
Payment terms:
T/T, Western Union, cash etc.,
We warmly welcome you join us to achieve a win-win situation.
