Place of Origin: | China,Shenzhen |
Brand Name: | WEJOIN |
Certification: | CE,ISO |
Model Number: | WJTY301 |
Minimum Order Quantity: | 2pcs |
---|---|
Price: | negotiation |
Packaging Details: | Wooden box |
Delivery Time: | 10-30 days |
Payment Terms: | T/T,Western Union |
Supply Ability: | 50PCS/week |
Arm Length: | 450mm | Lane Wideth: | 900mm |
---|---|---|---|
Wing Material: | Resin,or PVC | Motor: | DV12V |
Protaction Grade: | IP32 | Material: | 304 Stainless Steel & Aluminum Alloy |
High Light: | half height turnstile,optical turnstile |

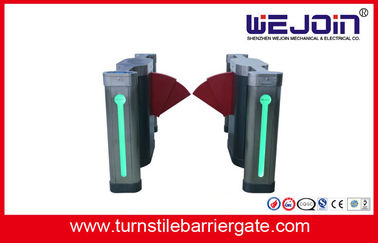

220mm Electronic Flap Barrier Gate / Pedestrian Automatic Systems Turnstiles
Quick Detail:
Machine core: dexterous telescope falp width 220mm only
Material: cold rolled steel & aluminum alloy
Function: automatic
Direction: bi-direction
Power supply AC220V±15%, AC110V±15%
Motor voltage DC24V (brush motor)
Working temperature -25°C~50°C
Protection grade IP32
Direction: bi-direction
Description:
1. WEJOIN flap barrier has features of precise craftsmanship, comprehensive functions and high technology
2. It has application in high class communities, intelligent buildings, hotels, subway stations and other high level venues.
3. Flap barrier is the combination of machinery, electronic, CPU control and variety of personal authentication identification technology. IC card, ID card, code bar, and fingerprint identification unit are compatible with the flap barrier.
4. Choosing different identification equipment and applying reliable security protection devices, alarm devices, direction indicator to realize the intelligent management of access control is comply with the fire safety requirements.
5. Flap barrier motor can be classified into single motor and double motors. The single one is used for single lane and the double one is used for multi-lanes.
6. Intelligent flap barrier is a brand-new product of WEJOIN company. Flap barrier, as the upgraded version of the tripod turnstile and swing barrier, is a hi-tech product for pedestrian access control.
Applications:
High class communities, intelligent buildings, hotels, subway stations and other high level venues.
Functions and Features
1. Alarm for unauthorized access and no access against passenger flow
2. Input interface available for dry contact and switch signal connection.
3. Automatic detection for malfunctions.
4. Adjustable auto-delay closing
5. Infrared photocells for safety access

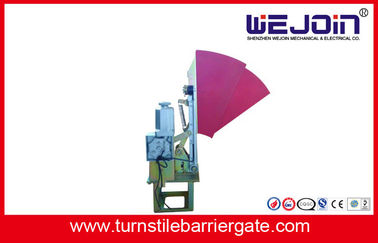

6. A compact electro-mechanical design with unique drive and a self-lock mechanism (no need regular gear clutch structure).
7. Emergency interface available.
8. Auto-closing when power on
9. Auto-open and free access when power off
10. Traffic light indicating passenger access
11. Adjustable access directions.
12. No battery is needed.
13. Anti-reverse passing
Specifications
Model |
WJTY302 |
Cabinet dimension |
1715mm(L)×315mm(W)×1080mm(H) |
Stretching-out flap length |
440mm |
The max lane width |
900mm |
Cabinet material |
304 stainless steel & aluminum alloy |
Power supply |
AC220V±15%, AC110V±15% 50/60Hz |
Motor voltage |
DC24V (brush motor) |
Protect grade |
IP32 |
Max flow rate |
30~40 people per minute |
Flap opening/closing time |
1s |
reset time when power on |
2s |
Access device input voltage |
dry contact |
working environment |
outdoors (with shelter) and indoors. |
working temperature |
-10°C ~ +50°C |
