Place of Origin: | Shenzhen,China |
Brand Name: | WEJOIN |
Certification: | CE,ISO |
Model Number: | WJTY600 |
Minimum Order Quantity: | 2pcs |
---|---|
Price: | Negotiation |
Packaging Details: | wooden box |
Delivery Time: | 10-30days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 50pcs/week |
Hairline Elegance Finishing: | Yes | Battery: | No |
---|---|---|---|
New Product: | Yes | Max Lane Wide: | 600mm |
Housing Thick: | More Than 1.5mm | Transit Speed: | 30~40 Person/min |
High Light: | security turnstiles,optical turnstile |

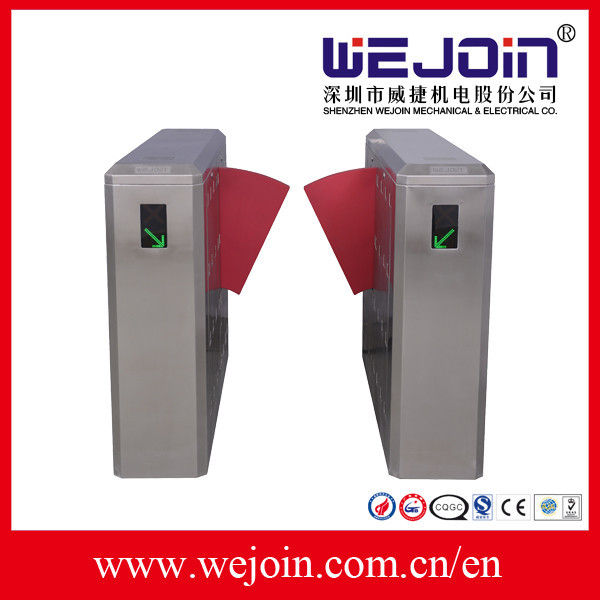

Wing 600mm SST 304 Full automatic Flap Turnstile Barrier Gate
Function& Feature:
1.Equipped with a standard input/output signal interface, can be integrated with all types of the access control panel, offering complete entrance control solutions.
2. Anti-collision function, the flaps will stay close if not receiving the open signal.
3.Flaps open on power failure. It can be integrated with a Fire alarm system or other alarming signals for emergencies. It will open automatically in case of an emergency.
4.Flaps reset to lock position when access time expires.
5.Prevents Invalid/Tailgate/Wrong direction access.
6.LED Array indication for an access granted/denied.
7. Compatible with diverse access control devices.
8. Pedestrian flow directions can be single or double directions.
Technical data :
Model |
WJTY202 | WJTY301 | WJTY311 |
Material of Housing | 304 Stainless Steel | ||
The material of Flap Door | Organic Glass, Resin, or PVC | ||
Dimension of housing | 1200*270*1000 | 1450*315*1020 | 1400*305*1020 |
Thickness of housing | 1.5mm | ||
Max Width of Passage | 600 | 900 | 900 |
Net weight | 70kg | 140 kg | 85 kg |
Normal Life Span | 3 million times | ||
Communication Interface | Standard RS485(distance less than 1200 meters) | ||
Transit speed | 30-40 persons/min | ||
Power supply | 220V±10%, 110± 10% | ||
Frequency | 50/60HZ | ||
The working voltage of the motor | DC24V | ||
Time for opening or closing | 1s | ||
Starting time after power on | 3s | ||
Input interface |
Dry contact signal or +12Vor pulse |
||
Transit speed | 25~32 persons/min | ||
Working temperature | -10°C~50°C | ||
Working environment | Indoor / Outdoor (Shelter) | ||
Relative humidity | ≤95%, no condensation |
