Place of Origin: | China |
Brand Name: | Tongdazhi |
Certification: | CE |
Model Number: | TDZ -Y209 |
Minimum Order Quantity: | 1piece |
---|---|
Price: | USD800-1300piece |
Packaging Details: | paper carton and wooden case |
Delivery Time: | 3-5working days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 500 pieces per month |
Size: | 1200*300*1000mm | Material: | 304stainless Steel |
---|---|---|---|
Thickness Of Steel: | 1.5mm | Opening Pattern: | Automatic |
Passing Speed: | < 40 Person/min | Working Temperature: | -15°C ~ 50°C |
High Light: | Flap Barrier Turnstile,Pedestrian Turnstile Gate |

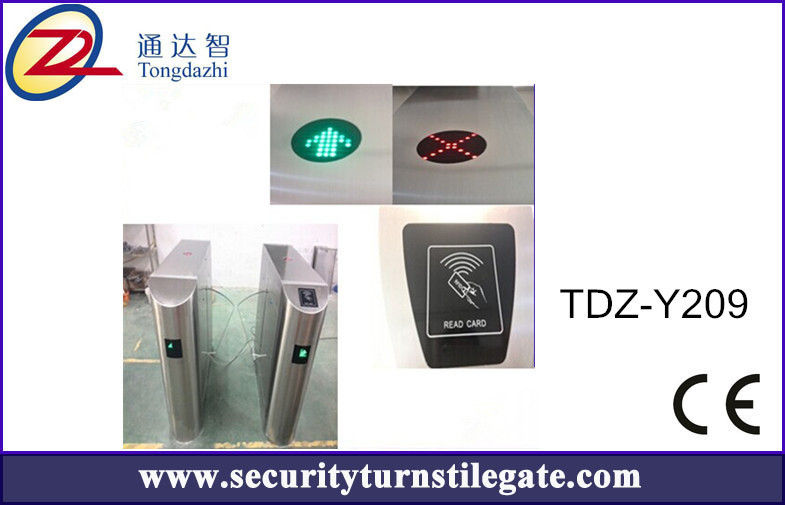

Bar code Ticket System Bidirectional Flap Barrier Gate RFID Turnstile For Museum
TDZ Flap barriers are especially effective in areas where large numbers of people need to be
monitored. With anti-tailgating sensor technology ranging from simple to sophisticated, they provide
discreet control of the flow of visitors or employees when linked with access control systems.
Flap barriers offer efficient traffic flow in two directions. It's stylish, illuminated angel wing barriers change
colors to indicate the status of the lane to the user.
Applications for flap barriers include lobbies and more secure areas within corporate, governmental and
financial offices, museums, and airport or seaport passenger terminals.
SPECIFICATIONS FOR FLAP BARRIER GATE
Description |
Flap barrier |
Power consumption |
50 W |
Housing Size |
1200*300*1000 mm |
Housing material |
1.5 mm, 304# stainless steel, |
Drive motor |
DC brushless motor |
Channel width |
500--600 mm |
Pass speed |
30 persons/min. |
Communication Interface |
RS485,TCP/IP |
Input signal optional |
DC12V level signal or DC12V pulse signal |
flap open against power off |
Optional |
Working temperature |
-30℃ to +70 ℃ |
Working environments |
indoor,outdoor |
Relative humidity |
≤95% coagulation free |
MCBF |
3,000,000 cycles |
Flap Turnstile Functions& Features
1. Available in single walkway or bi-directional passage.Both directions can be set as controlled mode or free mode.
|
2.Self-recovery function:the machine will recovery automatically with invalid counting if passage is not completed within pre-set time(5 seconds default,adjustable by software).
|
3.Multi-alarm function:When arms are pushed by force illegally,alarm will be triggered automatically and the center rotor will be set locked(the duration of the alarm and lock is adjustable by software).
|
4. Emergency escape function:the obstacles will open automatically by pressing the emergency button which can be remote-controlled whether the power is on or not.
|
5.Smart card reader compatible with a variety of card such as IC and ID card.
|
6.Can be expanded to automatic identification system,realizing function to access control, pedestrian flow control,attendance check or fare collection.
|
7.Equipped with international standard electrical interface,can be easily integrated with other R/W device,also can be controlled and management through remote supervision computer.
|
8.Control panel with count and LED digital function.
|
9.Optional traffic-light: A Red Cross symbol will illuminate to indicate unit is not available for pass, and a green arrow indicate the direction of allowable pass.
|
